EP Equipment EPL152 - Display Instrument and Battery Indicators; Display Instrument Details

REV. 03/2020
6B

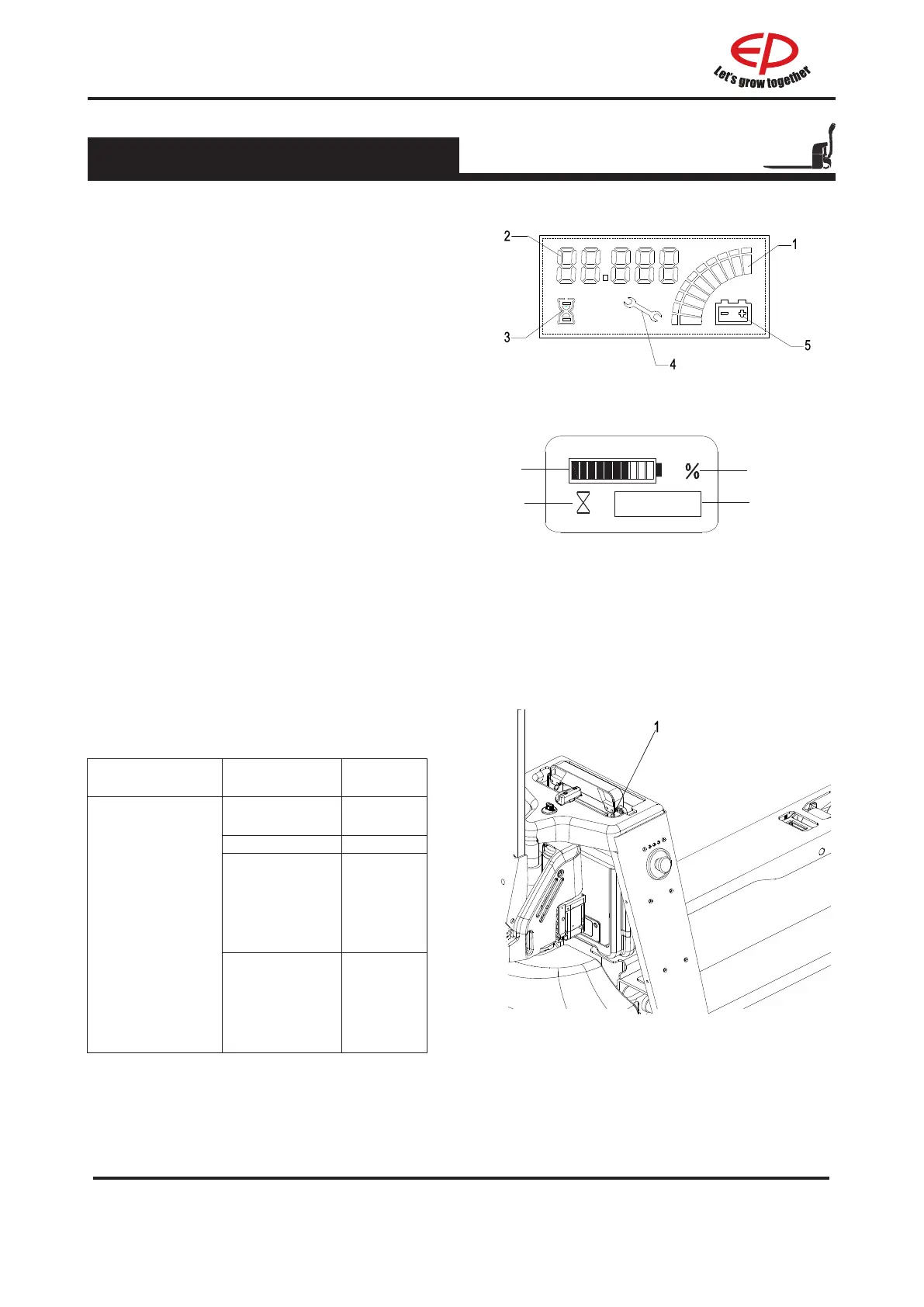

2.2.3 Display instrument
EPL154
• LED (1) displays the remaining charge;
• LED (2) displays the total running time
normally. If fault, display the fault code;
• LED (3) ashing, and the vehicle starts
timing;
• LED (4) is on, indicate vehicle failure;
• LED (5) is on under normal, it will ashing
when the power is less than 20
％
;
The LCD display (1) show battery residual
capacity.
The color of the LCD (1) represent the
following conditions:
Component LCD color
Residual
capacity
Standard
battery residual
capacity
Green
30-
100%
Yellow 15-30%
Quick
ashing
red
light(Flashing
period 2s)
7-15%
Slow ashing
red
light
(Flashing
period 1s)
0-7%
EPL163
1
2
3
4
70％
EPL185
• LED (1) displays the remaining charge;
• LED (2) displays remaining charge percent-
age;
• LED (3) displays Interlock switch status
indication
.
Solid on, interlock switch is
disconnect. Blink, interlock switch is closed,
the truck start time ;
• LED (4) displays the total running time
normally. If fault, display the fault code.
