Operation Description
Icon Display
UPS Setting
• Enter Setup interface. Press and hold the function setting key
for more than 2 seconds, then come to Setup interface, press and hold
the inquiring key (
, ) for more than half a second (less than
2 seconds), select the function setting, choose the setup interface,
at the moment, the letters ash.
• Enter the setup interface. Press and hold the function setting key
for more than half a second (less than 2 seconds), then come to the
setup interface, at this time, the letters doesn’t ash any more, the
numerical value ash. Press and hold the inquiring key (
, ) for
more than half a second (less than 2 seconds), select the numerical
value in accordance with the function.
• Conrm the setup interface. After selecting numerical value, press
and hold the function setting
for more than half a second (less
than 2 seconds). Now, the setting function is completed and the
numerical value illuminates without ashing.
• Exit from the setup interface. Press and hold function setting key
for more than half a second (less than 2 seconds), exit from the setup
interface and return to the main interface.

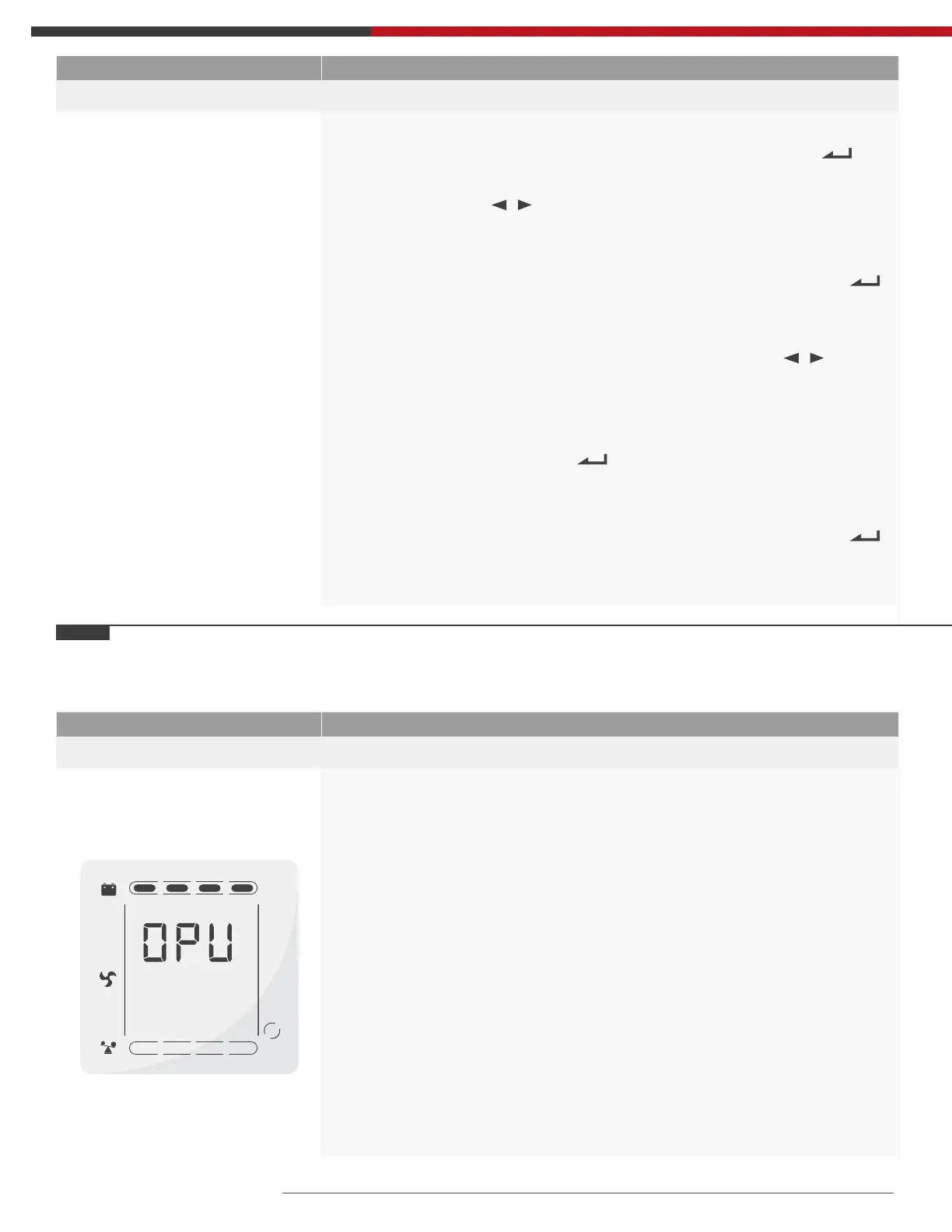

5.4 UPS Settings
LCD Display Settings
Output Voltage Setting
24
.
0
100
25% 50% 75% 100%
25% 50% 75% 100%
VDC
%
LINE
220
s0
.
0
25% 50% 75% 100%
25% 50% 75% 100%
VAC
Hz
LINE
25% 50% 75% 100%
25% 50% 75% 100%
w
KVA
LINE
900
1
0
25% 50% 75% 100%
25% 50% 75% 100%
LINE
C
40
25% 50% 75%100%
25% 50% 75% 100%
VAC
Hz
LINE
220
50
0
25% 50% 75% 100%
25% 50% 75% 100%
V
STDBY
10
25% 50% 75% 100%
25% 50% 75% 100%
STDBY
220
25% 50% 75% 100%
25%50% 75% 100%
V
STDBY
600
25% 50% 75% 100%
25% 50% 75% 100%
STDBY
For 208/220/230/240 VAC models, you may
choose the following output voltage:
208: output voltage is 208Vac.
220: output voltage is 220Vac.
230: (default): output voltage is 230Vac.
240: output voltage is 240Vac.
For 100/110/115/120/127 VAC models, you may
choose the following output voltage:
100: output voltage is 100Vac.
110: output voltage is 110Vac.
115: output voltage is 115Vac
120 (default): output voltage is 120Vac.
127: output voltage is 127Vac.
