Epcom RT Series - UPS Panel Features; Front Panel Layout; Rear Panel Connectors

Epcom Power Line
4 | RT Series True Online UPS RT Series True Online UPS | 5

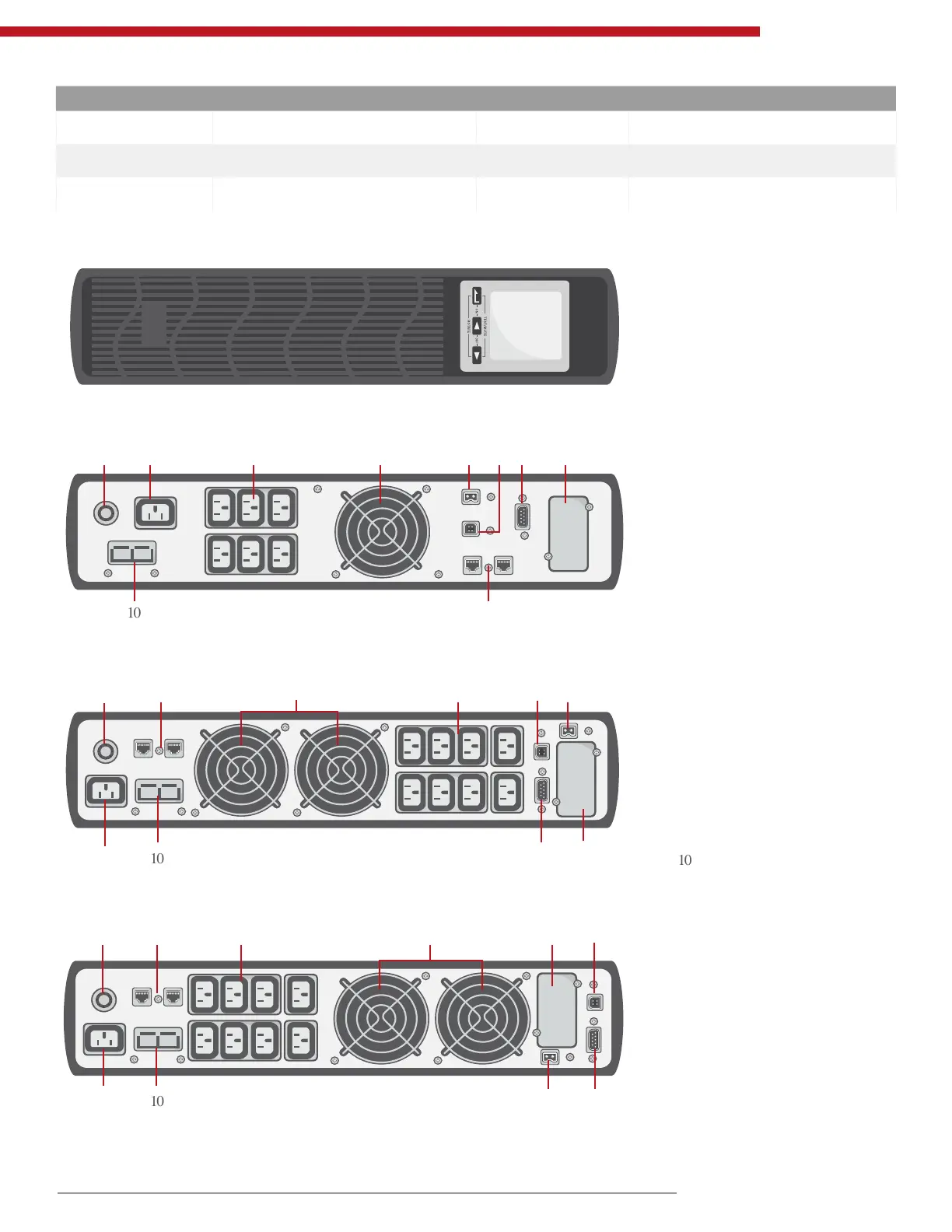

a. 1KVAS-RT(24V), 1KVAS-RT(36V) and 1KVAH-RT rear panel.
b. 2KVAS-RT (48V), 2KVAS-RT (72V) and 3KVAS-RT(72V) rear panel.
c. 2KVAH-RT, 3KVAH-RT and 3KVAS-RT(96V) rear panel.
The gure is for reference only.
Due to the technology upgrading
and development, the real unit
might be different from the gure.
Model Type Model Type
1KVAS-RT 1KVA Standard model 1KVAH-RT 1KVA Long backup model
2KVAS-RT 2KVA Standard model 1KVAH-RT 2KVA Long backup model
3KVAS-RT 3KVA Standard model 1KVAH-RT 3KVA Long backup model
①
AC input socket
②
Overcurrent
protector
③
Fan
④
USB port
⑤
EPO (Emergency
Power Off) port
⑥
RS232 port
⑦
Intelligent slot
⑧
Surge protection
for network/fax/
modem
⑨
Output sockets
①
Battery connector
Note:
Note:
2.2 Front Panel Features
2.3 Rear Panel Features
10
②
② ⑧ ③ ⑨ ④ ⑤
⑦⑥
② ⑧ ⑨ ③ ⑦ ④
⑥⑤①
①
① ⑨ ③ ⑤ ④ ⑥ ⑦
⑧
①
10
①
10
①
10
