Epever LS-EPD Series - Troubleshooting; Technical Specifications

3 4

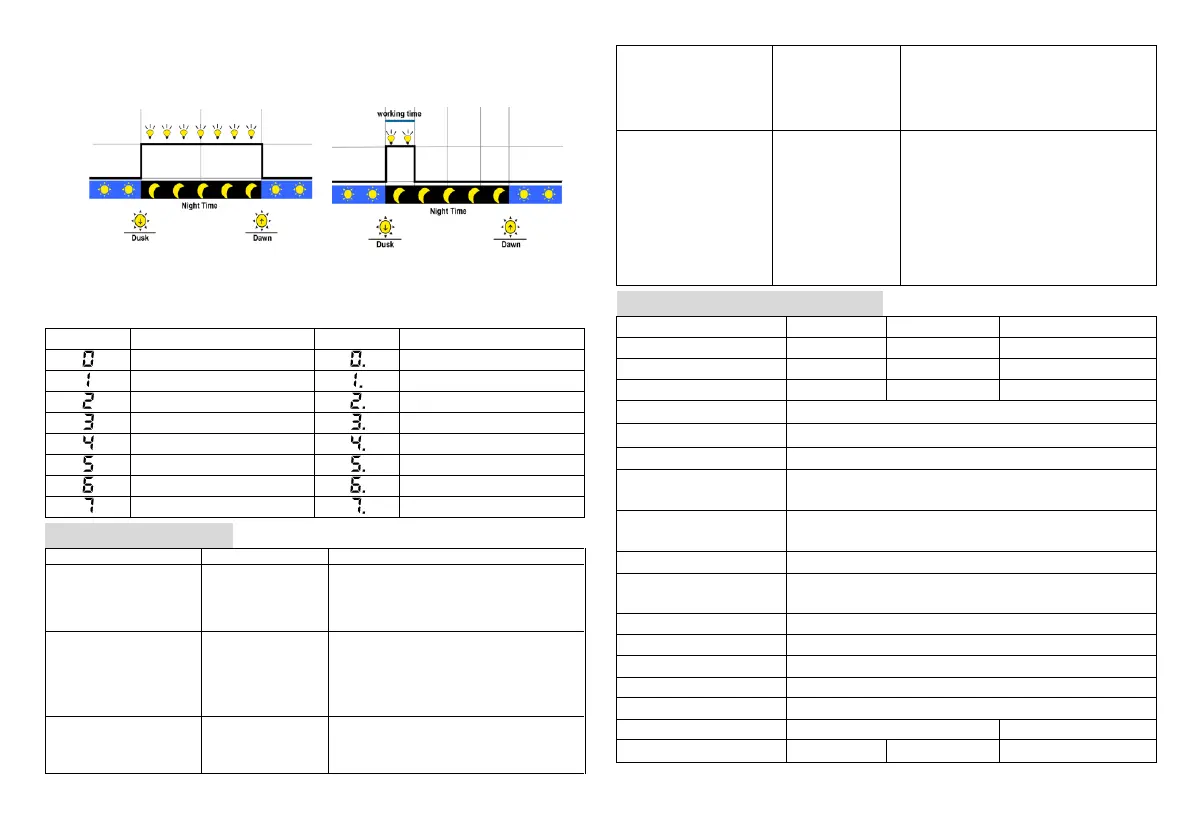

 Load mode
● Manual Control：Control the load via the button.
●Light ON/OFF ●Light ON + Timer
Note: In the mode of Light ON/OFF and Light ON/Timer, the Load is turned on after
10Min. delay.
● Test Mode (Default)：Test Mode is as same as Light Control Mode but no delay.
 The correspondence table of Load Work Mode & LED digital tube value
Value
Working mode
Value
Working mode
Light ON/OFF
Light ON + 8 hours
Light ON + 1 hours
Light ON + 9 hours
Light ON + 2hours
Light ON + 10 hours
Light ON + 3hours
Light ON + 11 hours
Light ON + 4 hours
Light ON + 12 hours
Light ON + 5 hours
Light ON + 13 hours
Light ON + 6 hours
Manual Control
Light ON + 7 hours
Test Mode
4. Troubleshooting
Faults
Possible reasons
Troubleshooting
Charging LED indicator
off during daytime
when sunshine falls on
PV modules properly
PV array
disconnection
Check that PV and battery wire
connections are correct and tight
Charging Status LED
indicator fast flashing
Battery voltage
higher than over
voltage
disconnect
voltage
1. Disconnect the solar array and
measure the battery voltage whether is
too high; 2. Change the controller; 3.
Change the battery
Battery LED indicators
red color and loads not
working
Battery over
discharged
The controller cut off the output
automatically. LED indicator will return to
green automatically when fully
The radix point of
digital tube fast
flashing and load not
working
Short circuit
Clear short circuit. It is reactivated after
delayed 10 seconds for the first time, If
over 1 time，press the key to clear error
and the controller will resume to work
after 3s or restart the controller
The radix point of
digital tube slowly
flashing and load not
working
Over load
Please reduce the number of electric
equipments.
When load power reaches 1.25-1.5
times, 1.5-2 times and 2 times more than
nominal value, controller will
automatically close loads in 60 seconds,
5 seconds and 1 second, respectively.
Please press the key to clear error and
the controller will resume to work after 3s
or restart the controller
6. Technical Specifications
Item
LS1012EPD
LS1024EPD
LS2024EPD
Nominal system voltage
12VDC
12/24VDC Auto
12/24VDC Auto
Max. PV input voltage
30V
50V
50V
Rated current
10A
10A
20A
Equalize Voltage
14.8V(12V);29.6V(24V)
Boost Voltage
14.4V(12V);28.8V(24V)
Float Voltage
13.7V(12V);27.4V(24V)
Low Voltage Reconnect
Voltage
12.6V(12V);25.2V(24V)
Low Voltage Disconnect
Voltage
11.2V(12V);22.4V(24V)
Self-consumption
12V：≤4.58mA；24V：≤6.01mA
Temperature
compensation coefficient
-5mV/℃/2V（25℃）
Working temperature
-35℃～+55℃
Enclosure
IP67
Overall dimension
108.5mm×75mm×25.6mm
Mounting dimension
100.5mm
Mounting hole size
Φ5
Power cable
PV/BAT/LOAD:4.0mm
2
PV/BAT/LOAD:6.0mm
2
Net weight
408g
410g
435g
Any changes without prior notice! Version number:V1.1
