12. Recommended Applications
12.1 Standard Application
1) Advantages
MT75 monitors the solar controller and inverter's operational status
while controlling the AC load and DC load output by the Load ON/OFF
button directly.

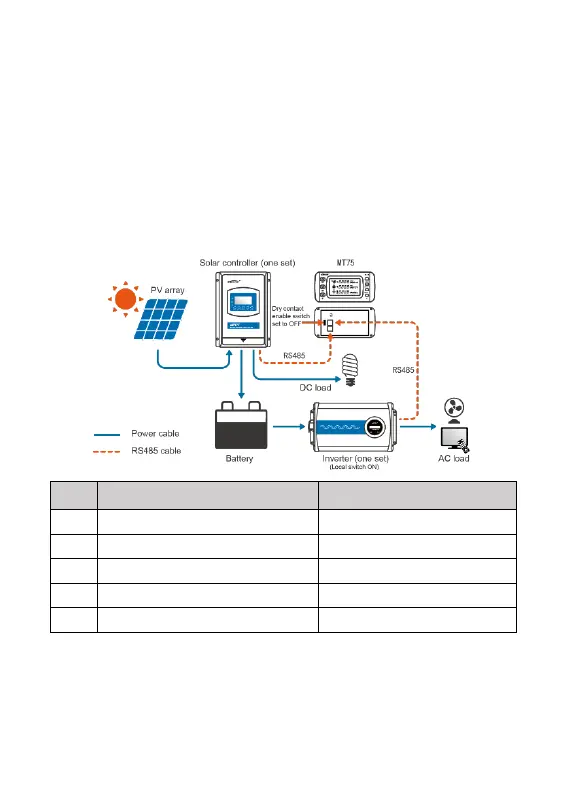

2) Connection Diagram
No.
Item
Number
1
Solar controller
1 pcs
2
Inverter
1 pcs
3
MT75
1 pcs
4
RS485 cable(Included)
2 pcs
5
PV, battery, AC load, DC load
According to actual needs
3) Operations
1. Connect the RS485 ports of MT75 to the controller and inverter.
2. Set MT75's dry contact enable switch to OFF state.
3. Must set inverter switch to ON state.
