Epever MT75 - Upgrade Application

18
4. MT75 load ON/OFF button directly controls the AC and DC load
output.
12.2 Upgrade Application
1) Advantages
MT75 monitors the operational status and error codes of the solar
controller and inverter at the same time. The Load ON/OFF button
controls the inverter start or stop, effectively reducing the inverter's
loss and extending the system's lifetime.

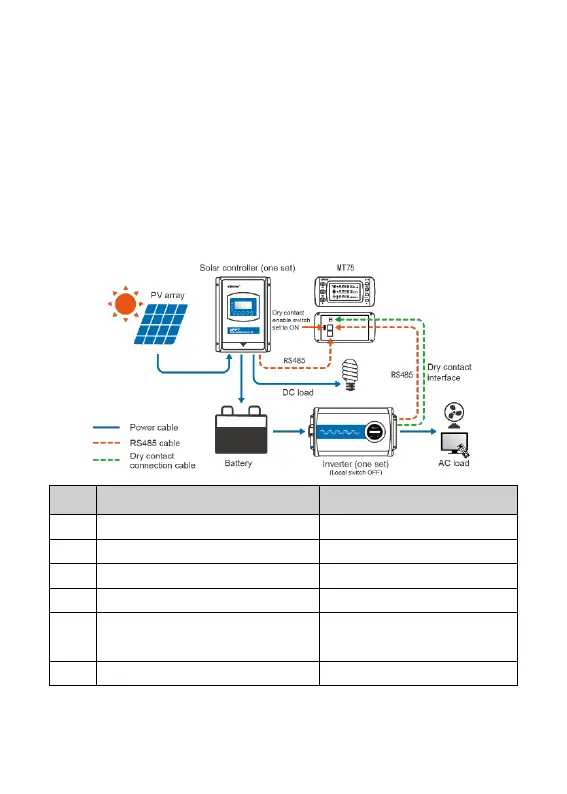

2) Connection Diagram
No.
Item
Number
1
Solar controller
1 pcs
2
Inverter
1 pcs
3
MT75
1 pcs
4
RS485 cable(Included)
2 pcs
5
Dry contact connection
cable(Optional)
1 pcs
6
PV, battery, AC load, DC load
According to actual needs
3) Operations
