Epilog Laser Fusion Pro 32 User Manual

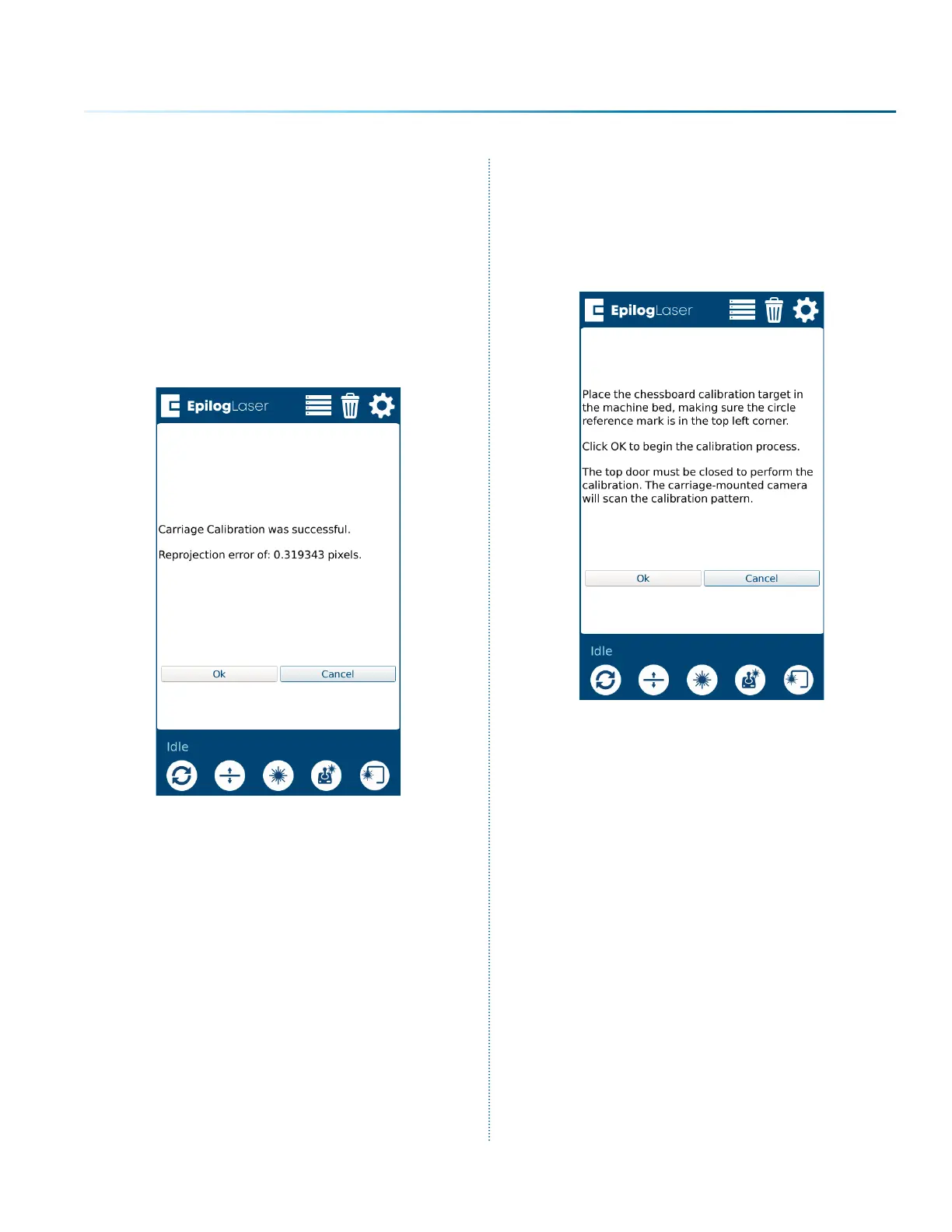

8. Once the calibration has successfully
finished, a dialog will appear. The
“Reprojection error” will be listed and is used
to determine the quality of the calibration.
The lower the value, the better. If the
reprojection error is above 2.0, the user will
see an error “Calibration unsuccessful. Error
too high”. A value of 0.6 or lower is desired. At
the end of this stage, the table will move
down several mm, to make room to place the
Calibration Mat on the table.
9. Place the chessboard calibration target flat
on the table. The machine will now calibrate
the overhead camera(s). The Fusion Pro 32
has 1 overhead camera, and the Fusion Pro
48 has 2 overhead cameras. Click “Ok” to
continue.
- 219 -
