4.3 Transport using a truck
WARNING Hydraulic attachment tipping over /
slipping
The hydraulic attachment slipping or tipping over and
falling from the loading area of a lorry may cause serious
injury.
u Place the hydraulic attachment on a pallet.
u Strap the hydraulic attachment to the pallet using
suitable strapping (see illustration in chapter Trans-
port using a forklift truck).
u Place the pallet with the hydraulic attachment on an
anti-slip mat.
u Secure the hydraulic attachment to the loading area
with ropes or chains; use any available transport
lugs.
n

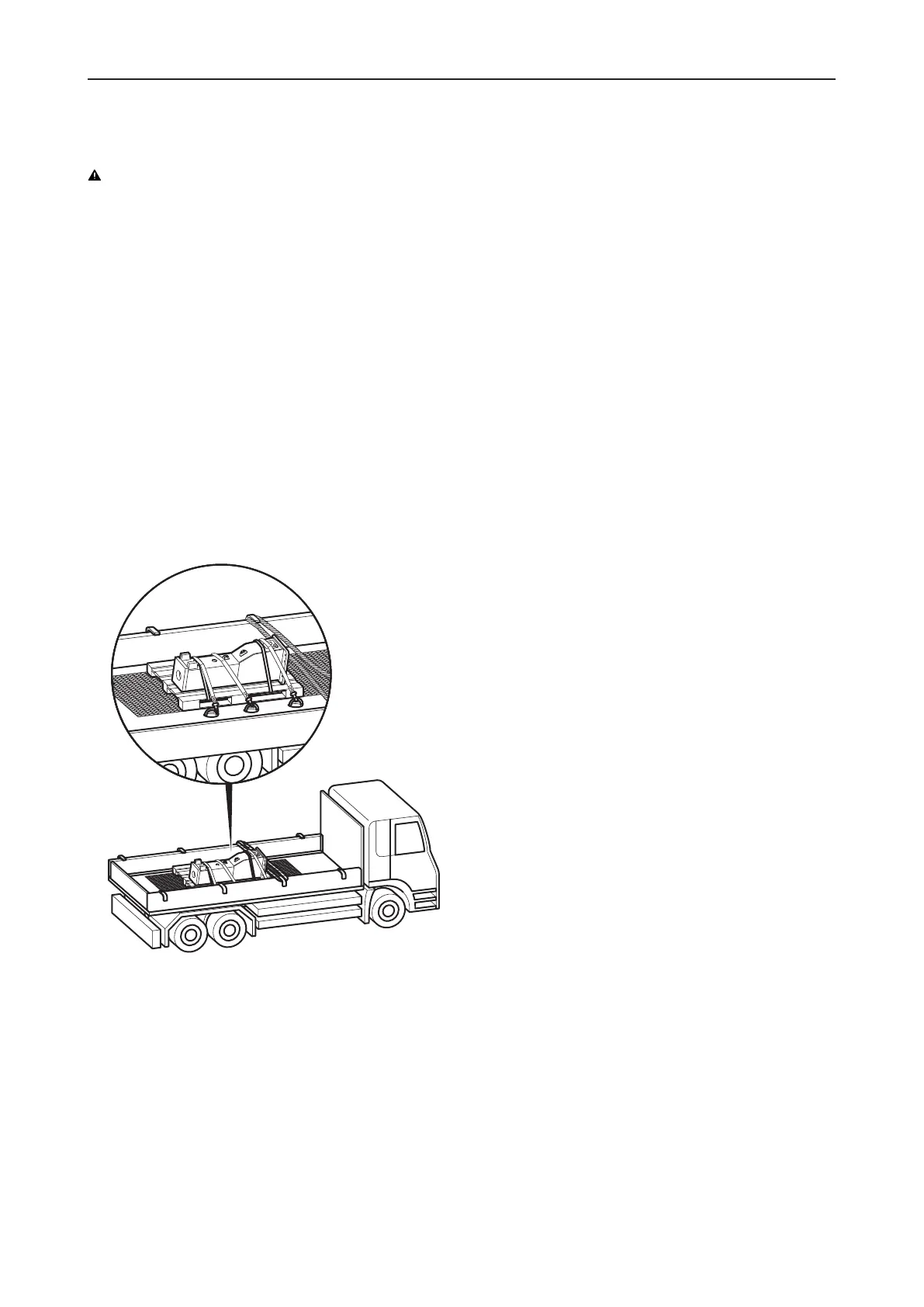

Secure the hydraulic attachment on the pallet and the
loading surface as shown in the following illustration.
n
Observe all the applicable national/regional regula-
tions on securing loads.
