7.11 Piston accumulator

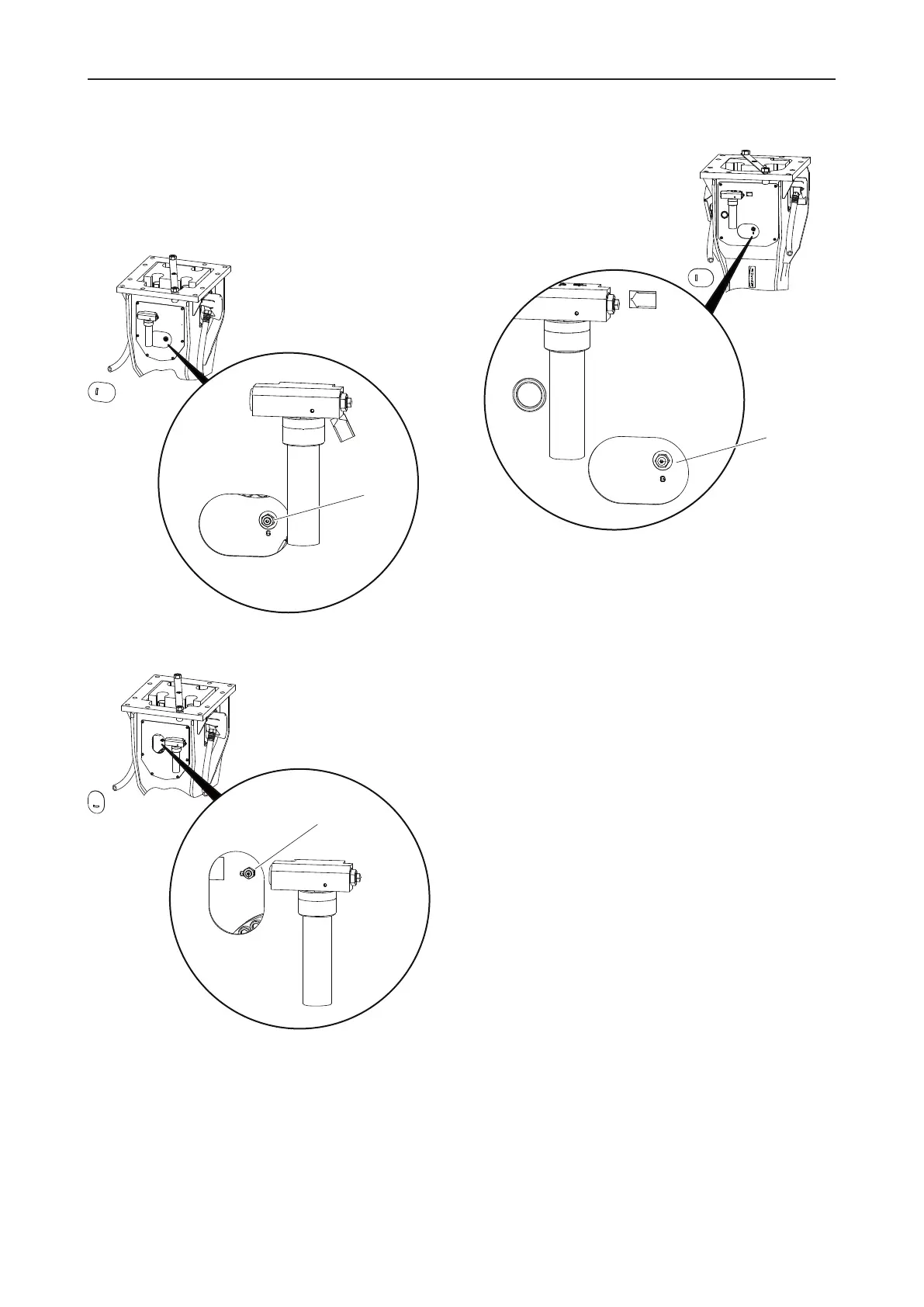

The pressure in the piston accumulator is measured at
the filling valve(G). The piston accumulator is also filled
through this valve.
HB3100, HB3100DP
G
G
HB3600, HB3600DP
HB4700, HB4700DP
G
HB4100, HB4100DP
G
The following accessories can be supplied:
1 nitrogen filling device
1 test pressure gauge ¼", 0-25 bar, test category 1.6
1 nitrogen bottle
1 adapter, country-specific
To enable the following inspection and maintenance ac-
tivities to be carried out, the equipment referred to above
has to be directly available at the location of use at all
times.
