Safety and operating instructions
14 © Construction Tools PC AB | 9800 0908 01 | 2023-05-12
Original Instructions

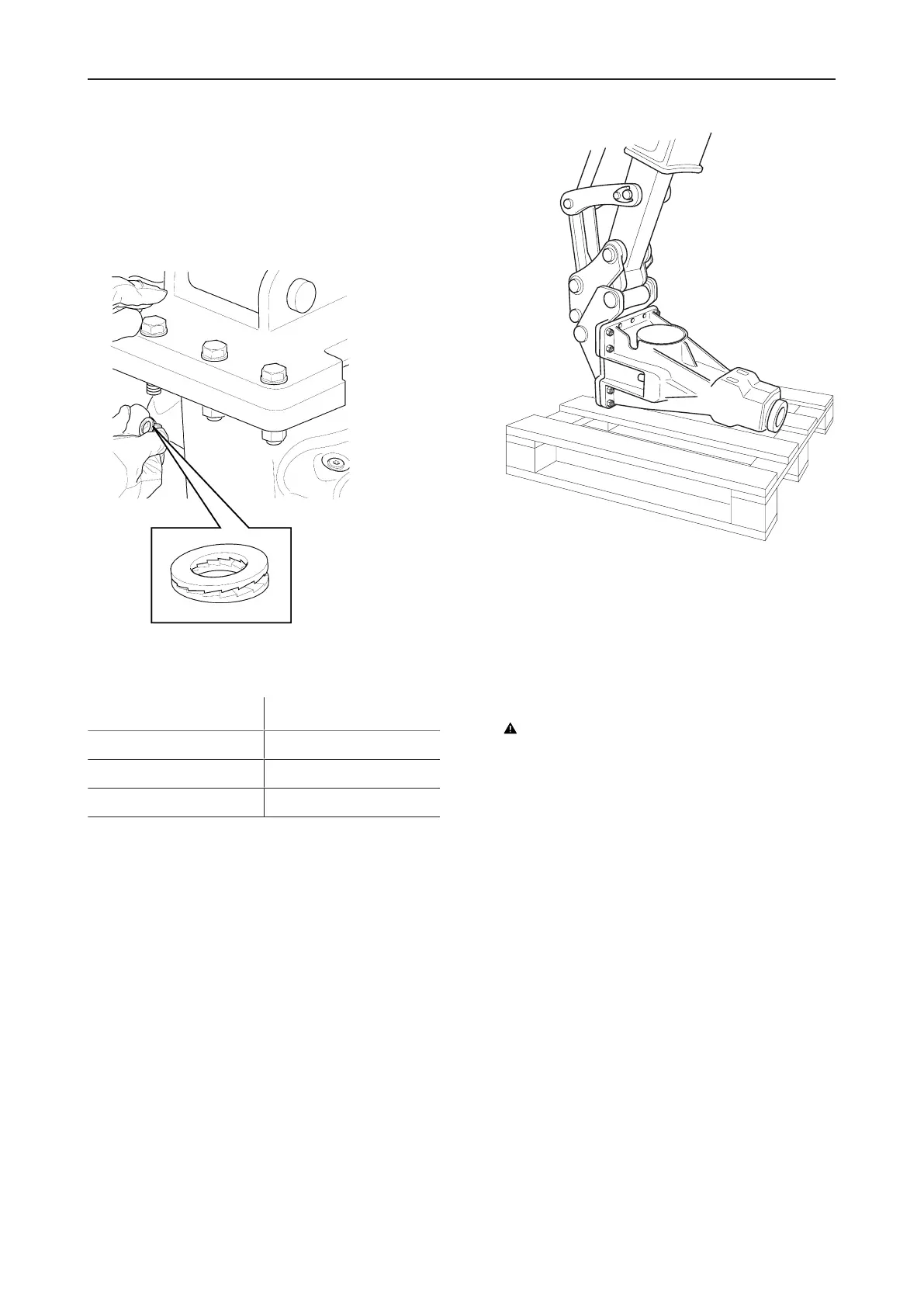

If NYLOK BLUE PATCH™ (Known as TUF-LOK
®
in
Europe) screws are not available we recommend us-
ing NORD-LOCK
®
washers under bolts and nuts.
(NYLOK BLUE PATCH is a trademark of Nylok Cor-
poration. TUF-LOK is a registered trademark of Nylok
Corporation in Europe. NORD-LOCK is a registered
trademark of Nord-Lock International AB.)
3.
Tighten the nuts, see the tightening torque in the ta-
ble below.
Adapter plate Tightening torque
SBU 160 170 Nm (125 ft lbs)
SBU 220 170 Nm (125 ft lbs)
SBU 340 170 Nm (125 ft lbs)
Connecting the breaker to the carrier
1.
Position the breaker in a safe way during installation.
The pressure inlet on the hydraulic breaker is on the
left side when you are facing the accumulator. If the
pressure hose is on the other side of the boom you
can cross the hoses or turn the hydraulic breaker.
Agree with the assistant on clear hand signals for use
during the mounting procedure.
2.
Carefully lower the stick of the boom into the adapter.
WARNING Moving parts can crush and cut
u Never check bores or passages with hands or fin-
gers.
An assistant must direct the movement of the boom
until the bores in the boom are flush with those in the
adapter.
3.
Insert the pin and lock.
4.
Lift up the hydraulic breaker using the boom.
5.
Extend the bucket cylinder until the bore in the toggle
is flush with those in the adapter. Insert toggle pin
and lock.
6.
After mounting the breaker, carefully extend and re-
tract the bucket cylinder to its full extent in each di-
rection. It is important that the cylinder can be fully
extended and retracted without any difficulty.
n
Connect hydraulic hoses for 'Pressure line, to
breaker' and 'Tank, return line'. For further informa-
tion see section "Hoses and connections".
