11.4.2 SBU 220: 100–150 bar

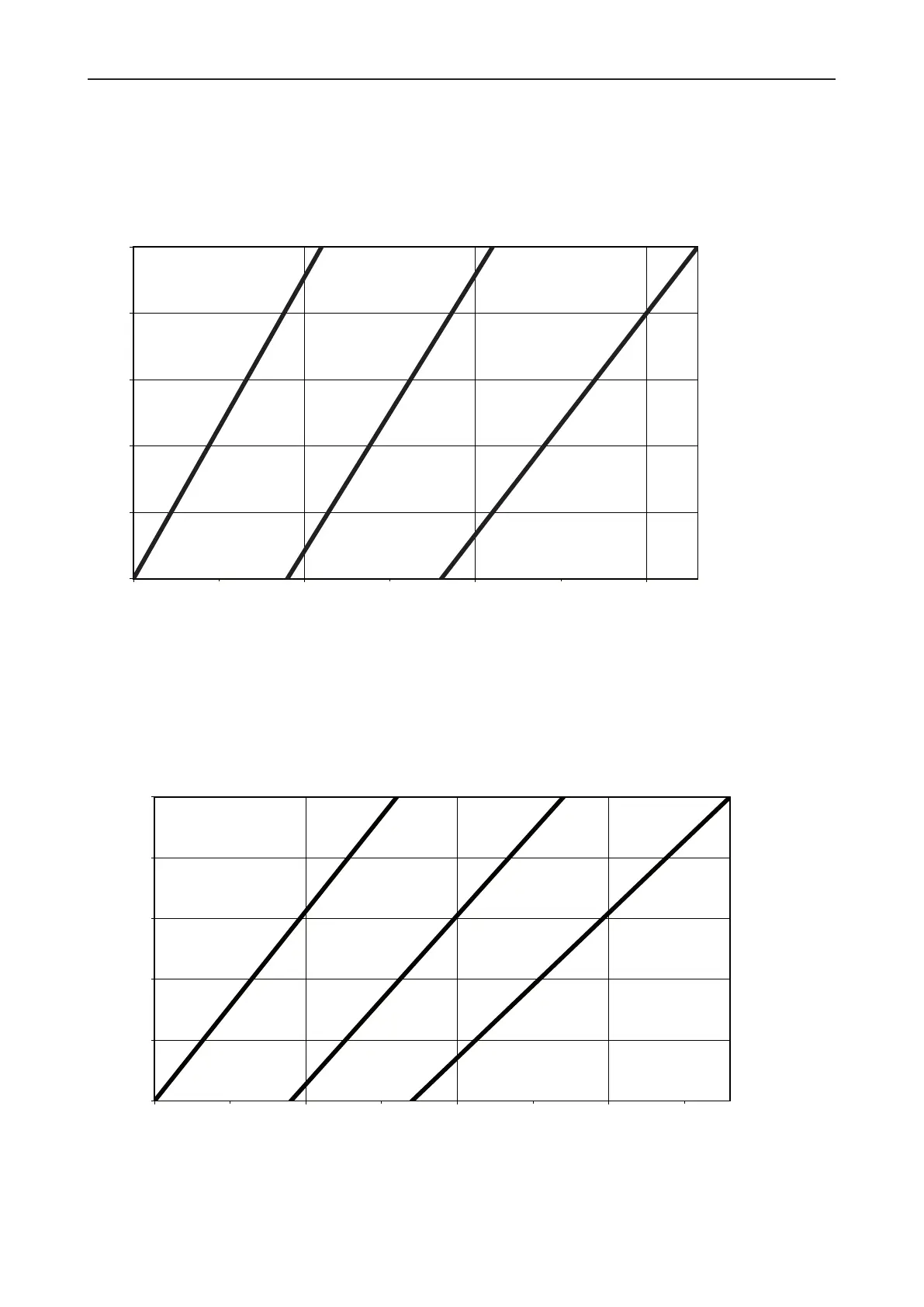

The flow diagram is valid for applications with back pressure up to 10 bar. For applications where the back pressure ex-
ceeds 10 bar, a restrictor must be chosen regarding the working pressure in each specific case. In these cases, apart
from the restrictors specified in the flow diagram below, it is possible to choose a Restrictor with Ø 7.0 mm, or remove
the restrictor cartridge and work without any restriction.
100
110
120
130
140
150
42 52 62 72
l/min
bar
75
Ø 4.0 mm
Ø 4.5 mm
Ø 5.1 mm
11.4.3 SBU 340: 100–150 bar
The flow diagram is valid for applications with back pressure up to 10 bar. For applications where the back pressure ex-
ceeds 10 bar, a restrictor must be chosen regarding the working pressure in each specific case. In these cases, apart
from the restrictors specified in the flow diagram below, it is possible to choose a Restrictor with Ø 7.7 mm, or remove
the restrictor cartridge and work without any restriction.
100
110
120
130
140
150
62 72 82 92
l/min
bar
100
Ø 5.4 mm
Ø 6.0 mm Ø 6.4 mm
