Safety and operating instructions
16 © Construction Tools PC AB | 9800 0908 01 | 2023-05-12
Original Instructions

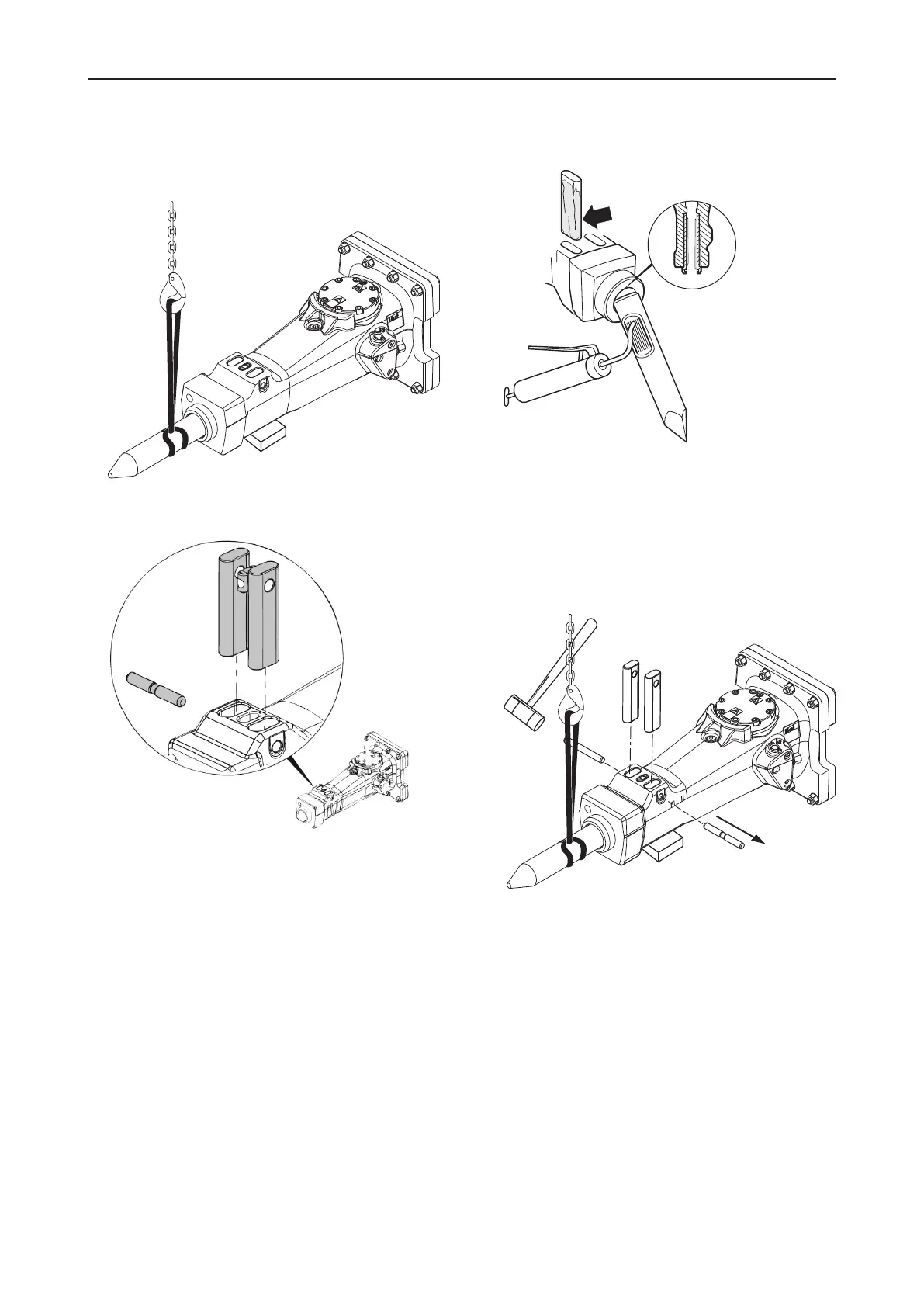

1.
Shut the carrier's engine off.
2.
Dismount the working tool, use a lifting strap to re-
duce the risk of personal injury.
3.
Remove and check the lock buffer. Change worn or
damaged parts.
NOTICE The lock buffer in the tool retainer lock is
made of plastic and can melt when operating in a hot
environment. If this occurs, change the standard lock
pin. Find optional spring pin in the spare parts list.
4.
Clean and lubricate the bushing plentifully.
NOTICE When mounting a new working tool, it is es-
pecially important to lubricate plentifully.
5.
Mount the working tool, use a lifting strap to reduce
the risk of personal injury
6.
Rotate the working tool to spread the grease.
7.
Mount the tool retainers, one at the time.
8.
Drive in the lock pin until the lock buffer attaches in
the lock pin groove.
