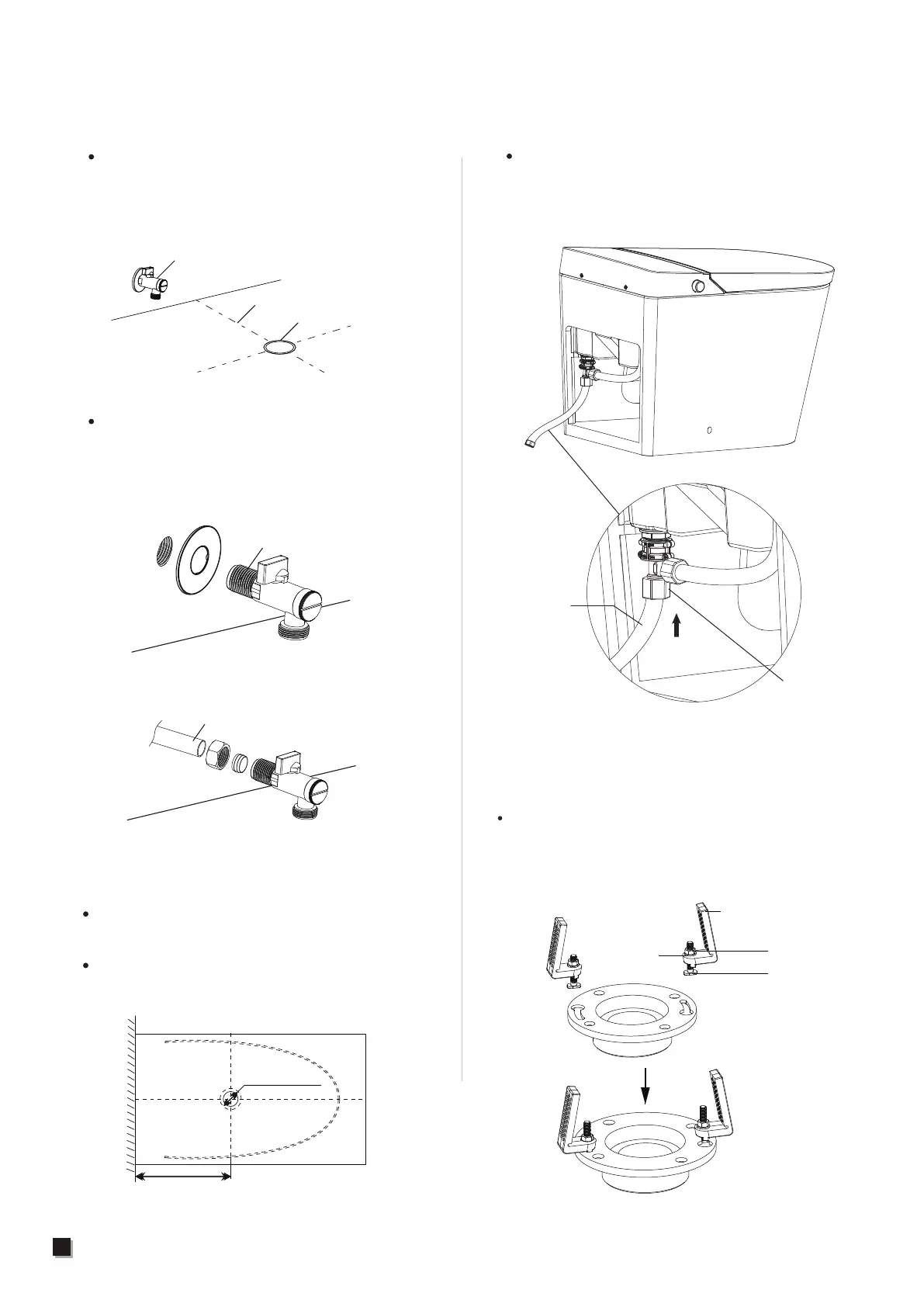

Draw drain outlet centerline on the floor.
Install angle valve at proper position on
the the wall according to dimension of
toilet.
1. Installation of angle valve
Line
Drain outlet
Angle valve
08
Toilet installation
Installation Method 1:
NPT 1/2
Choose the correct size of mating angle
valve that compatible with your water
oulet from the package.
5/8′′
Installation Method 2:
3. Connect hose to toilet water inlet
Connect one end of hose to the water inlet
of the toilet and tighten the connection.
Inlet
connector
Flexible hose
Nut
Bolt
4.Mounting bracket installation
Assemble the mounting bracket with bolts
and then install them to the pre-installed
flange plate on the ground and lock tight
with nuts.
Mounting bracket
Washer
305mm
Drain outlet
2. Cardboard installation
Align cardboard with the centerline of
drain outlet.
Draw contour line according to cardboard.
