E+L RK 4004 User Manual

U Page 12
Digital controller RK 4004
4.2.3 Parameter setting
Para-
meter-
value
Para-
meter
Start setup mode
Enter device number
Enter group number
yes
Expanded setup mode
no
ja
no
Quit setup mode
+
May parame-
ter value be
changed
Select
further
parameters
+
+
or
+
or
+
or
or
+
or
+
Start setup mode: press the setup and additio-
nally the increase value key (press the setup key
first). The green LED on the setup key will flash .
Enter device number: press and hold down the
setup key and select parameter 0 via the increase
value key. Release the setup key again and enter
the device number via the increase or decrease
value keys (device number is specificed in the
block diagram)
Enter group number: press and hold down the
setup key and select parameter 1 via the increase
value key. Release the setup key again and enter
the group number via the increase or decrease
value keys (group number is specified in the
block diagram)
Select and change parameters: press and hold
down the setup key and select the required para-
meter via the increase value key. Release the set-
up key again and enter the required parameter
value via the increase or decrease keys.
Incorrect parameter changes may impair
the function of the entire system !
Select expanded setup mode: select device
number X.5, then press and hold down the setup
key and select parameter 3 by pressing the
increase value key. Release the setup key again
and enter parameter value 42 via the increase or
decrease value keys.
Quit setup mode: select device number X.5, then
press and hold down the setup key and select
parameter 3 by pressing the increase value key.
Release the setup key again and enter parameter
1 by pressing the increase or decrease value key.
Press and hold down the setup key
and press the increase value key once. Release
the setup key again.
X is used as a place retainer
Select parameter
Change parameter value

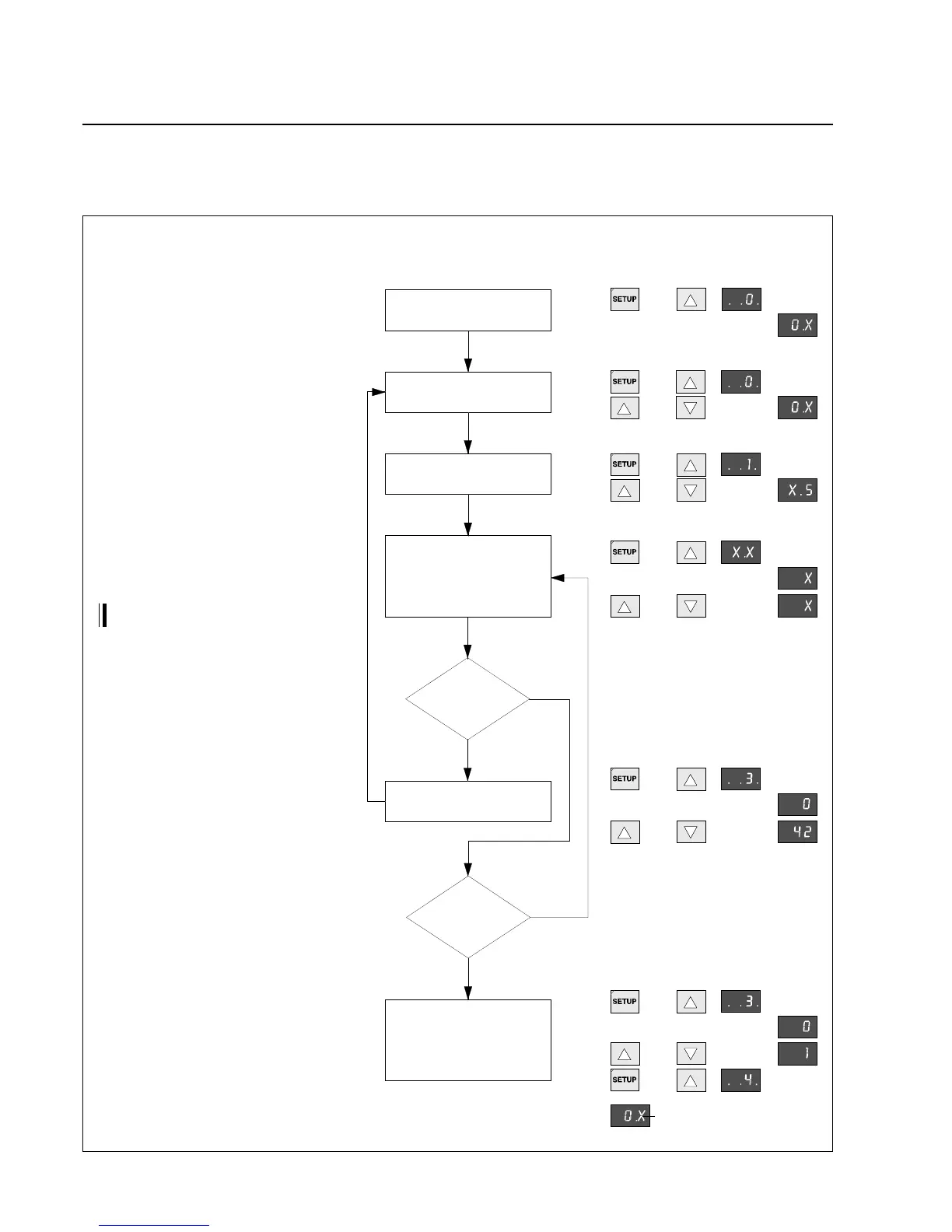

Basic operation in setup mode:
All parameters in the CAN network may be selected and changed by
the three keys. The following flow diagram illustrates basic operation
with the setup editor:
