Disassembly/Assembly 4-9
Centrifuge 5804/5804 R and 5810/5810 R
4 Disassembly / Assembly

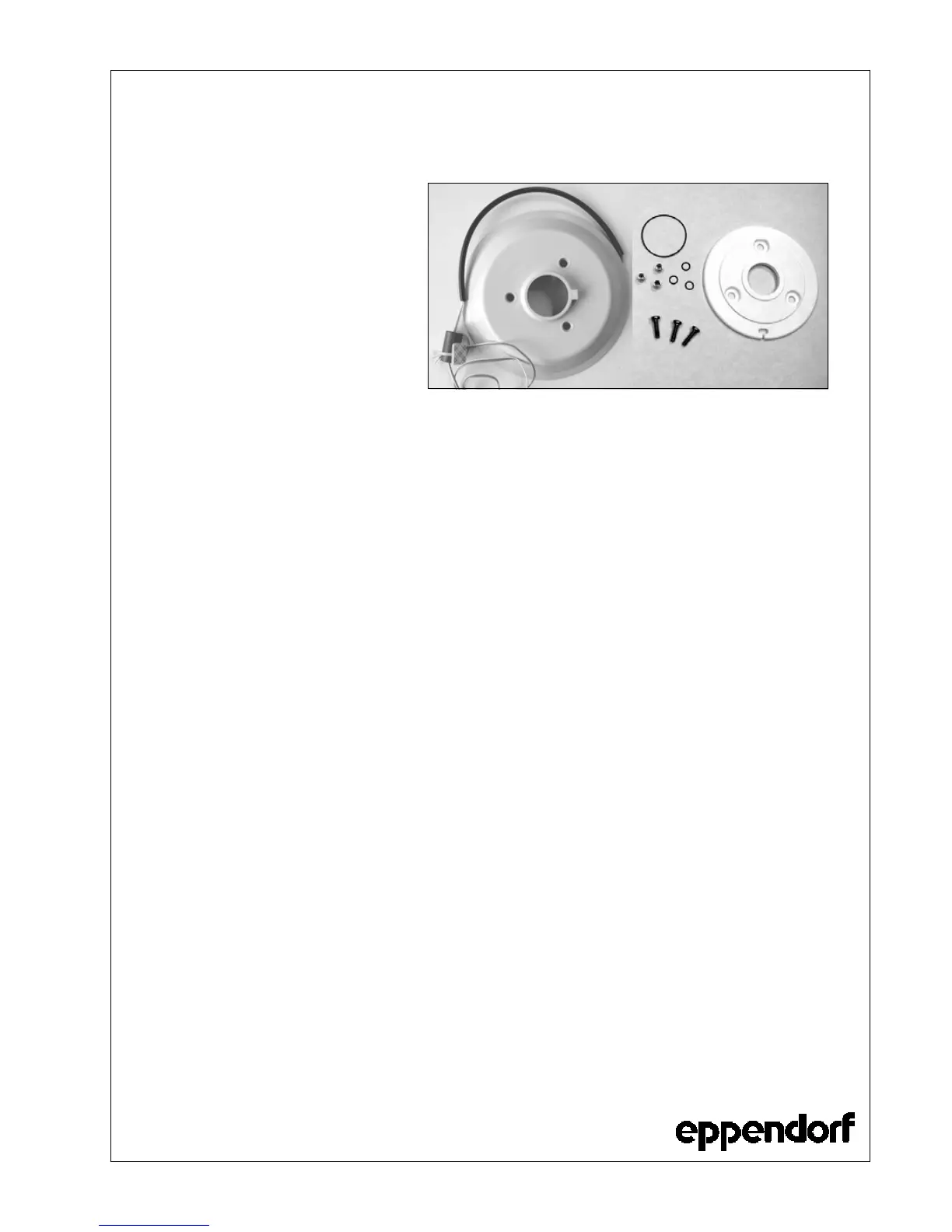

Repair kit motor cap cpl. with rotational speed sensor (no. 5820 850.329)
containing:
Motor cap with rotational speed sensor
3 spacer bushings
3 screws
3 O-rings
O-ring 40 x 1 (for refrigerated centrifuge)
Insulating flange
Ferrite bead
Fastening material
For mounting the repair kit motor cap, push the 3 small o-rings onto the spacer bushings.
Note:
Always when mounting the motor cap, be sure that the rubber sleeeve does not slide onto the insulating
flange. This would result in a too high position of the motor cap on one side, thus causing the swing-
buckets of rotor A-4-81to strike there.
MSTM/0408
