Eppendorf 5804 - Magnet Carrier Adjustment for Imbalance

Centrifuge 5804/5804 R and 5810/5810 R
4 Disassembly / Assembly
4-12 Disassembly/Assembly

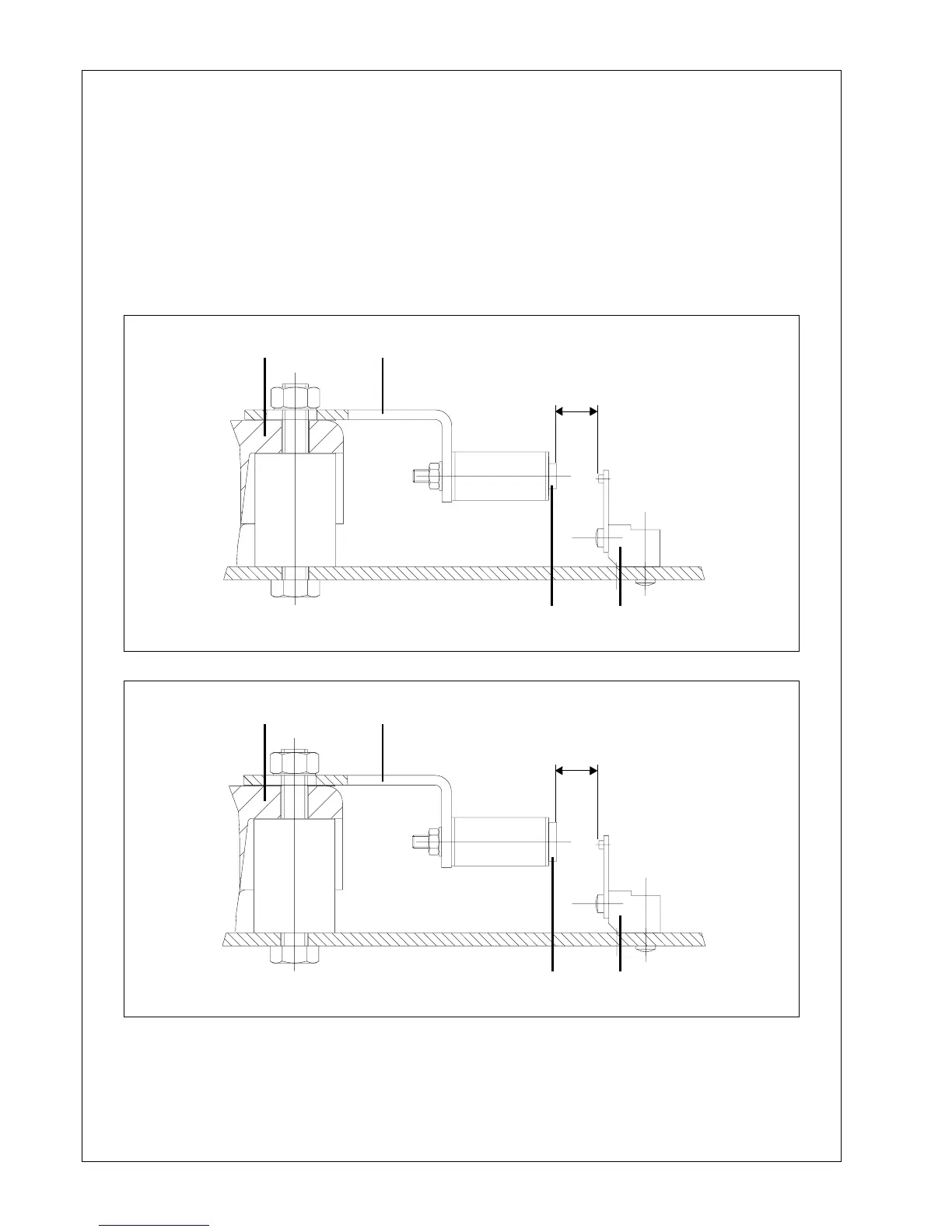

Adjusting the magnet carrier Imbalance recognition to PCB Imbalance recognition
Magnet must align to Hall sensor horizontally and vertically.
Horizontal distance – Magnet to Hall sensor approx. 9–13 mm depending on magnet carrier Imbalance
recognition.
Recommended service setting = 670 ± 30
Max. tolerance during standstill = 670 ± 100
Magnetträger Unwuchterfassung Nr. 5810 302.110
Magnet carrier imbalance recognition no. 5810 302.110
LP Unwuchterfassung
PCB Imbalance recognition
Magnet 8x8 mm
Magnet 8x8 mm
Motor
ca. 9–10 mm
approx. 9–10 mm
Motor
Magnetträger Unwuchterfassung Nr. 5810 855.512
Magnet carrier imbalance recognition no. 5810 855.512
LP Unwuchterfassung
PCB Imbalance recognition
Magnet 9x13 mm
Magnet 9x13 mm
ca. 12–13 mm
approx. 12–13 mm
MSTM/0408
