Eppendorf 5804 - Rear Panel Retrofitting Instructions

Disassembly/Assembly 4-13
Centrifuge 5804/5804 R and 5810/5810 R
4 Disassembly / Assembly
5810 R Supplement for retrofitting the new rear panel
Lamella protection for Centrifuges 5810 R up to serial no. 3345
Mounting instructions
Aids: Hand drill
Drill, ø 3.6 mm, with 10 mm drilling-depth limit.
Retrofit kit consists of: 1 x mounting instructions
1 x rear panel
8 x screws M4 x 8
7 x washers
1 x lock washer
1. Remove old rear panel.

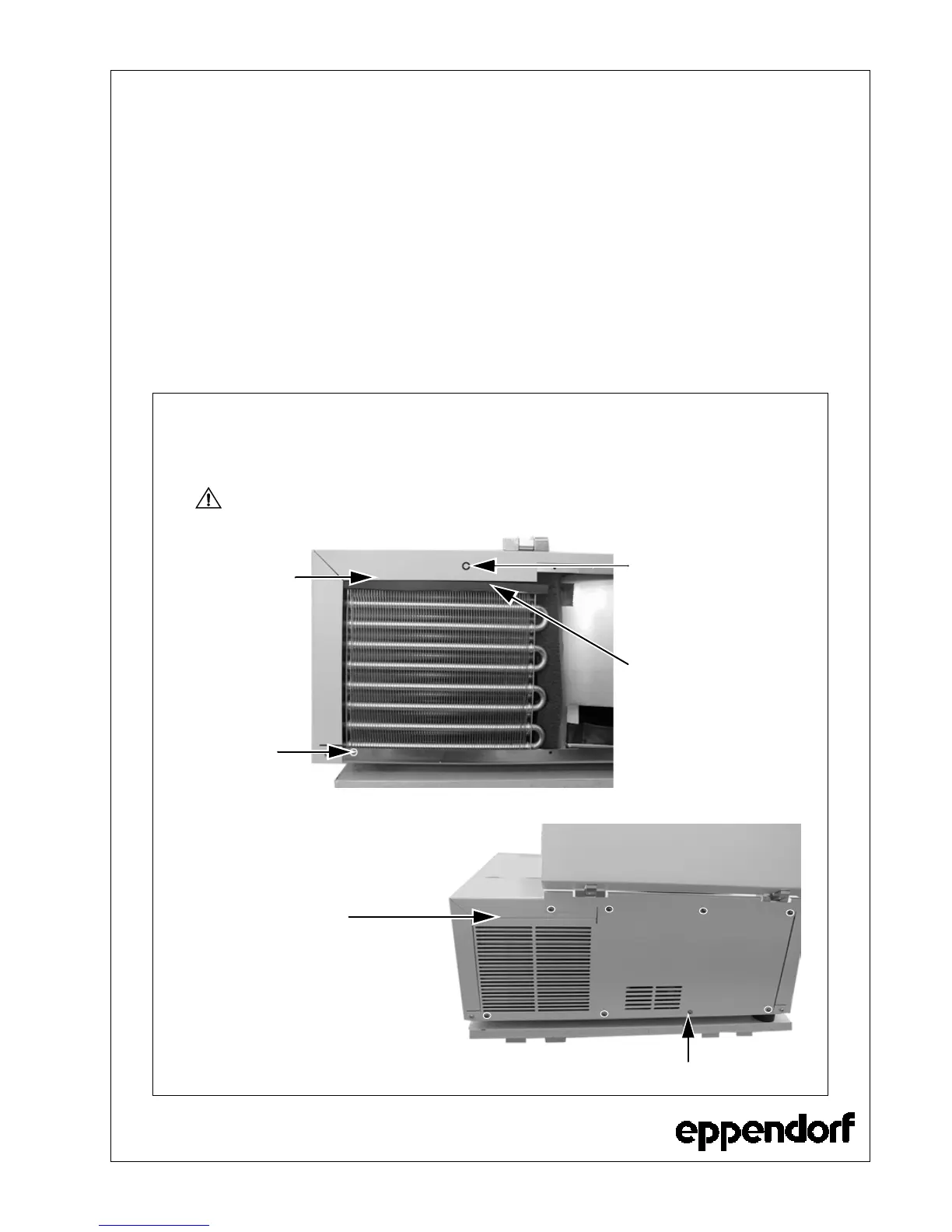

2. Place new rear panel below housing edge,
mark the two missing bores and drill using the 3.6-mm drill.
Use drilling-depth limit!
Exceeding depth of 10 mm will damage condenser tubes of cooling aggregate!
(Press lamelles aside, if required)
3. Place new rear panel
below housing edge
and fasten with 7 screws (M4 x 8)
+ washer (lacquer protection)!
One screw (M4 x 8) with lock washer for ground connection
Mark and drill
Mark and drill
Housing edge
Flexible strip at device from
serial no. 3346 onwards.
With older devices: stick here.
MSTM/0408
