Installation
Concentrator plus/Vacufuge® plus
English (EN)
26
4.2.2 Lifting the device out of the carton
1. Lift the device with the transport protection pad out of the carton.
2. Place the device with the transport protection pad on a stable, horizontal and resonance-free lab bench.
4.2.3 Complete system: Removing the transport protection screw
1. Carefully lay the device with the transport protection pad on its side.

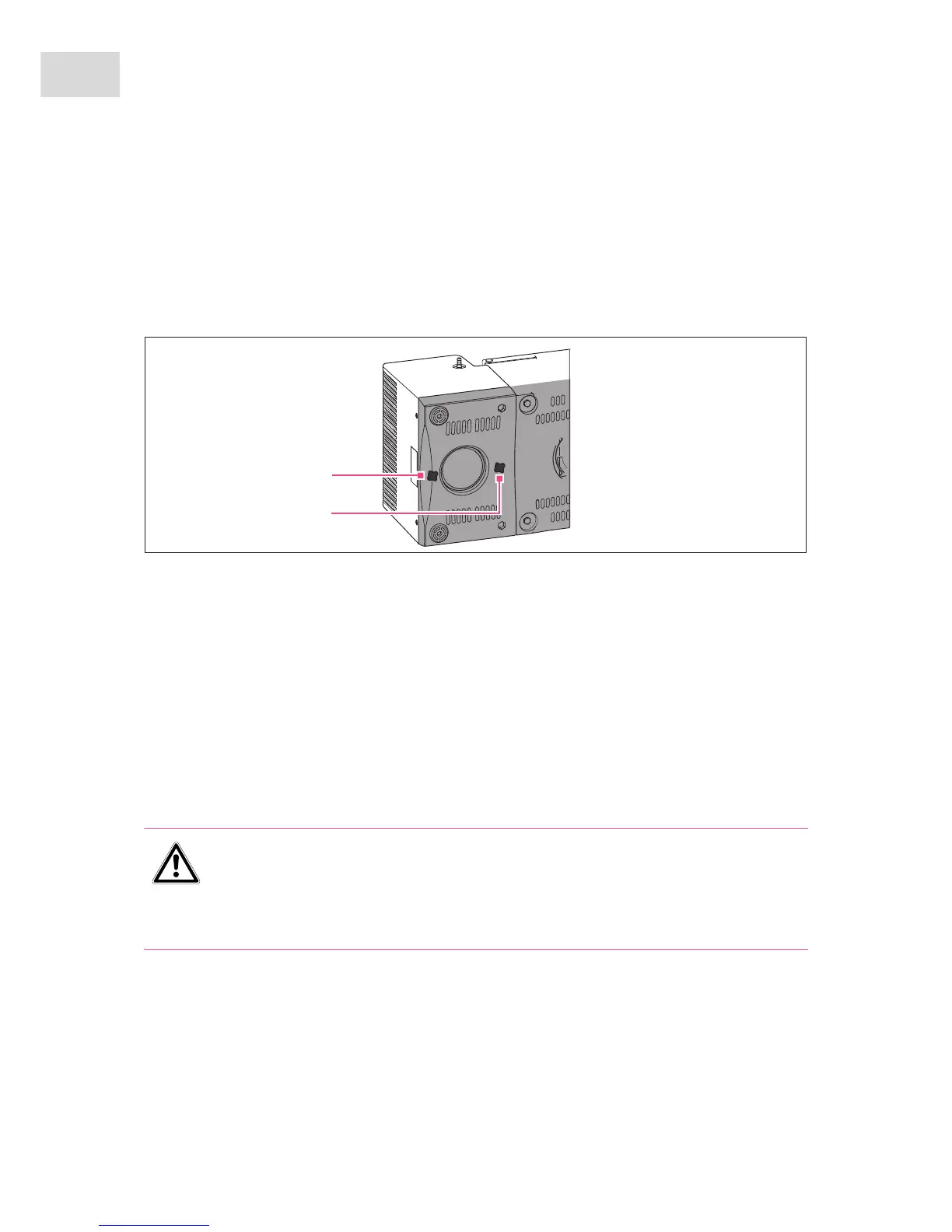

Abb. 4-1: Transport protection screws on the bottom of the device (complete system)
Fig. 4-1: Transport protection screws on the bottom of the device (complete system)
2. Slide the rear transport protection pad on the bottom of the device slightly back until the rear transport
protection screw (1) is visible.
3. Unscrew and remove both transport protection screws.
4. Return the rear transport protection pad to its original position.
5. Return the device with the transport protection pad to the upright position.
4.2.4 Positioning the device
1. Remove the front and rear transport protection pads.
2. Remove the plastic covers from the device and lid.
3. Install the device in a well-ventilated location which is protected from direct sunlight to prevent it from
overheating.
1Rear transport protection screw 2Front transport protection screw
WARNING! Risk of injury due to operation of an incorrectly installed device.
The device is not yet ready for operation after positioning. Some components still need to be
installed.
Read the following chapter before commissioning the device (see Installing the instrument
on p. 27).
