Installation
Concentrator plus/Vacufuge® plus
English (EN)
30
6. You can install a filter at the upper connection of the emission condenser. The overpressure at the pump
outlet of the complete system may not exceed 1 bar.

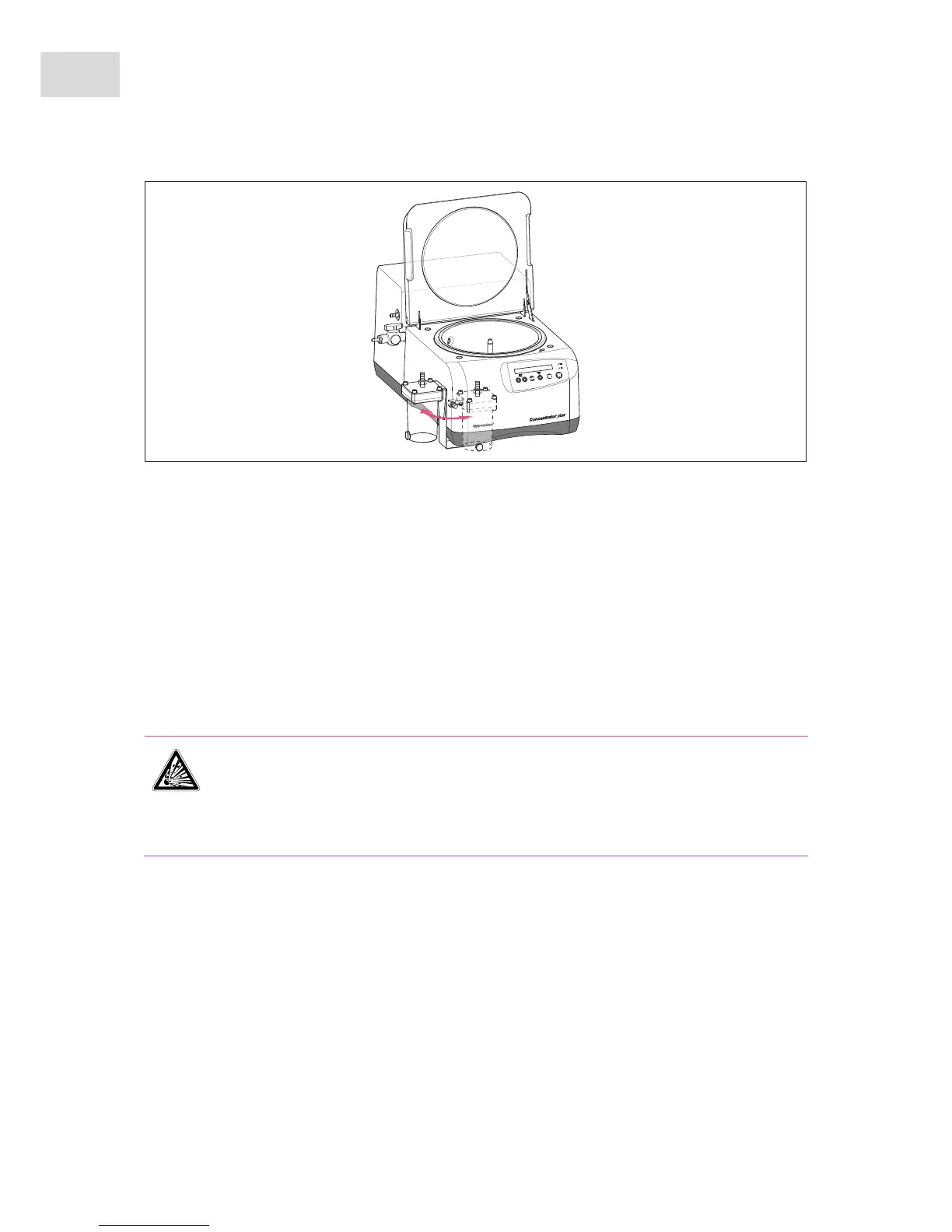

4.3.3 Complete system: Connecting the gel dryer
Prerequisites
•1 connecting hose (length: max. 50 cm, inner diameter: 5 to 7 mm, chemical resistant and suitable for
vacuum applications).
1. Screw the supplied barb (size: G1/4 ") into the thread of the stop valve on the left of the device.
2. Connect the gel dryer to the barb with the connecting hose.
4.3.4 Basic device: Connecting the vacuum pump
The basic device can be connected to an external vacuum pump.
Requirement
•The vacuum pump is approved in accordance with the applicable standards in your country.
•Condenser (e.g., emission condenser, cold trap or chemical trap) between the devices or behind the
vacuum pump, depending on your application.
•Pump withstands an ultimate pressure of at least 20 mbar. Its suction capacity is at least 1.8 m³/h.
WARNING! Danger of explosion from gas mixtures.
When running several devices in parallel on a vacuum system or in combination with a gel
dryer, an explosive gas mixture can develop in the vacuum system.
Observe the solvent properties. Only carry out parallel operations with identical solvents or
solvents that evaporate in a non-hazardous manner.
