Installation
Concentrator plus/Vacufuge® plus
English (EN)
32

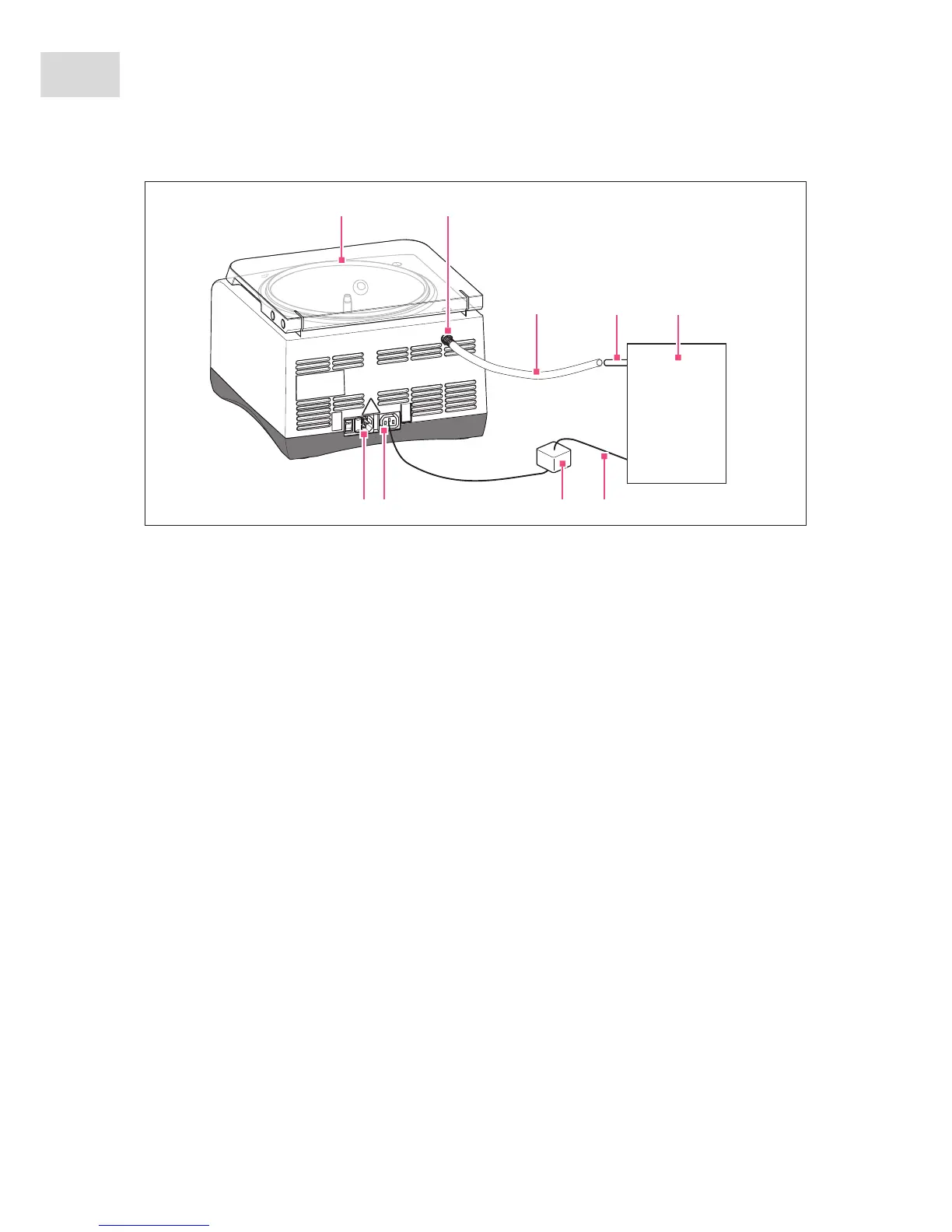

Abb. 4-5: Connecting a vacuum pump with a power consumption of up to 350 W to the Concentrator plus basic device.
Fig. 4-5: Connecting a vacuum pump with a power consumption of up to 350 W to the Concentrator plus
basic device.
1. Disconnect the basic device 1 and the vacuum pump 5 from the power supply.
2. Plug the power cable of the vacuum pump 6 into the special plug 7.
3. Connect the special plug to the provided connector 8 on the rear of the basic device (connected mains/
power supply voltage!).
4. Install the connecting hose 3 between the pump inlet 4 and the pump connection 2 on the rear of the
basic device.
5. Connect the basic device to the power supply 9.
