Eppendorf Concentrator plus - 4.3.4.2 Connecting a vacuum pump with external power supply

33
Installation
Concentrator plus/Vacufuge® plus
English (EN)
4.3.4.2 Connecting a vacuum pump with external power supply
Prerequisites
•Additional power source for the vacuum pump
•Solenoid valve to control the vacuum pump with the basic device (see Accessories on p. 58)
•2 connecting hoses (length: max. 50 cm, inner diameter: 8 mm, chemical resistant and suitable for
vacuum applications)

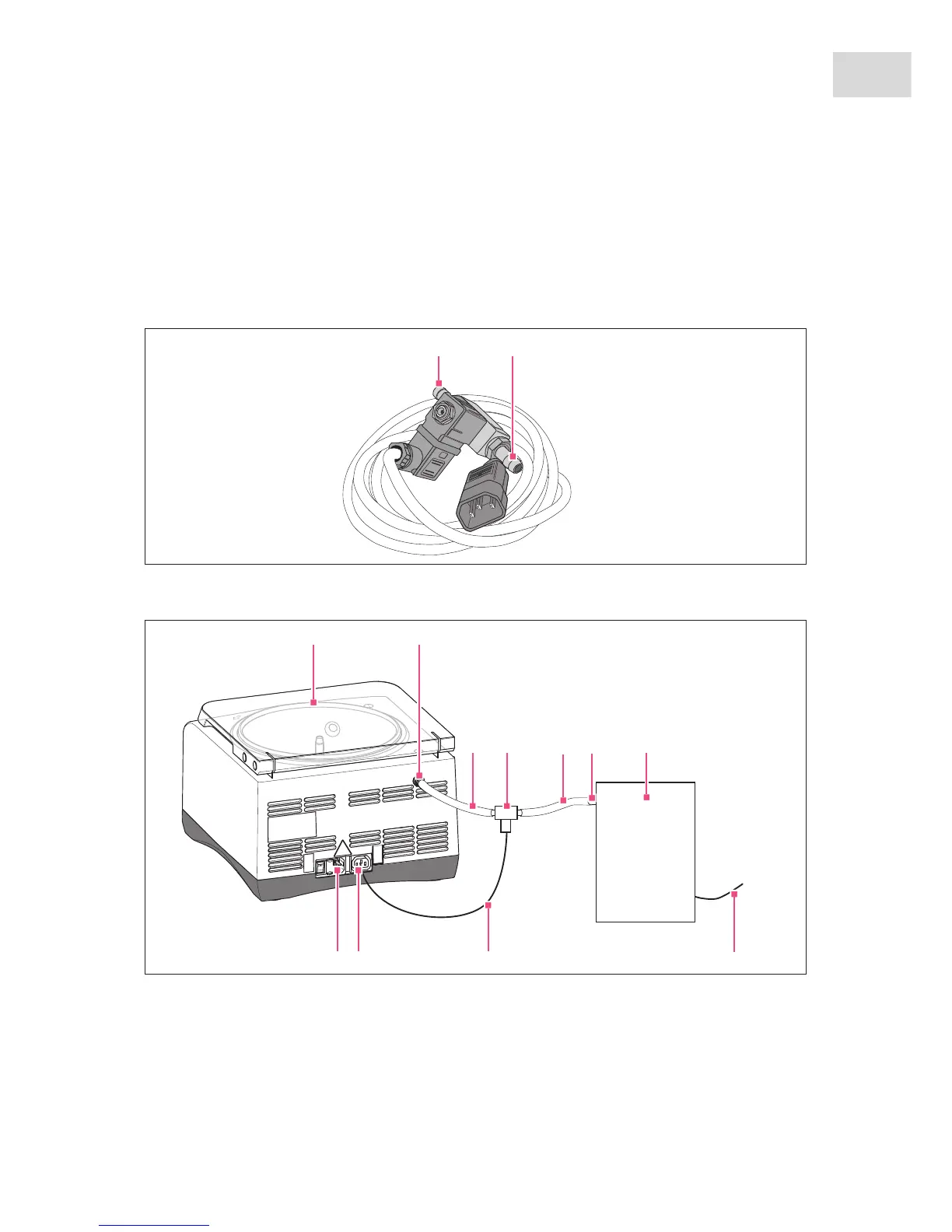

Abb. 4-6: Solenoid valve to control a vacuum pump with external power supply.
Fig. 4-6: Solenoid valve to control a vacuum pump with external power supply.
Abb. 4-7: Connecting a vacuum pump with external power sup ply to the Concentrator plus basic device.
Fig. 4-7: Connecting a vacuum pump with external power supply to the Concentrator plus basic device.
P A
P A
1 2
3 3
5
6
7
8
91011
