2.1.5 Terminal block

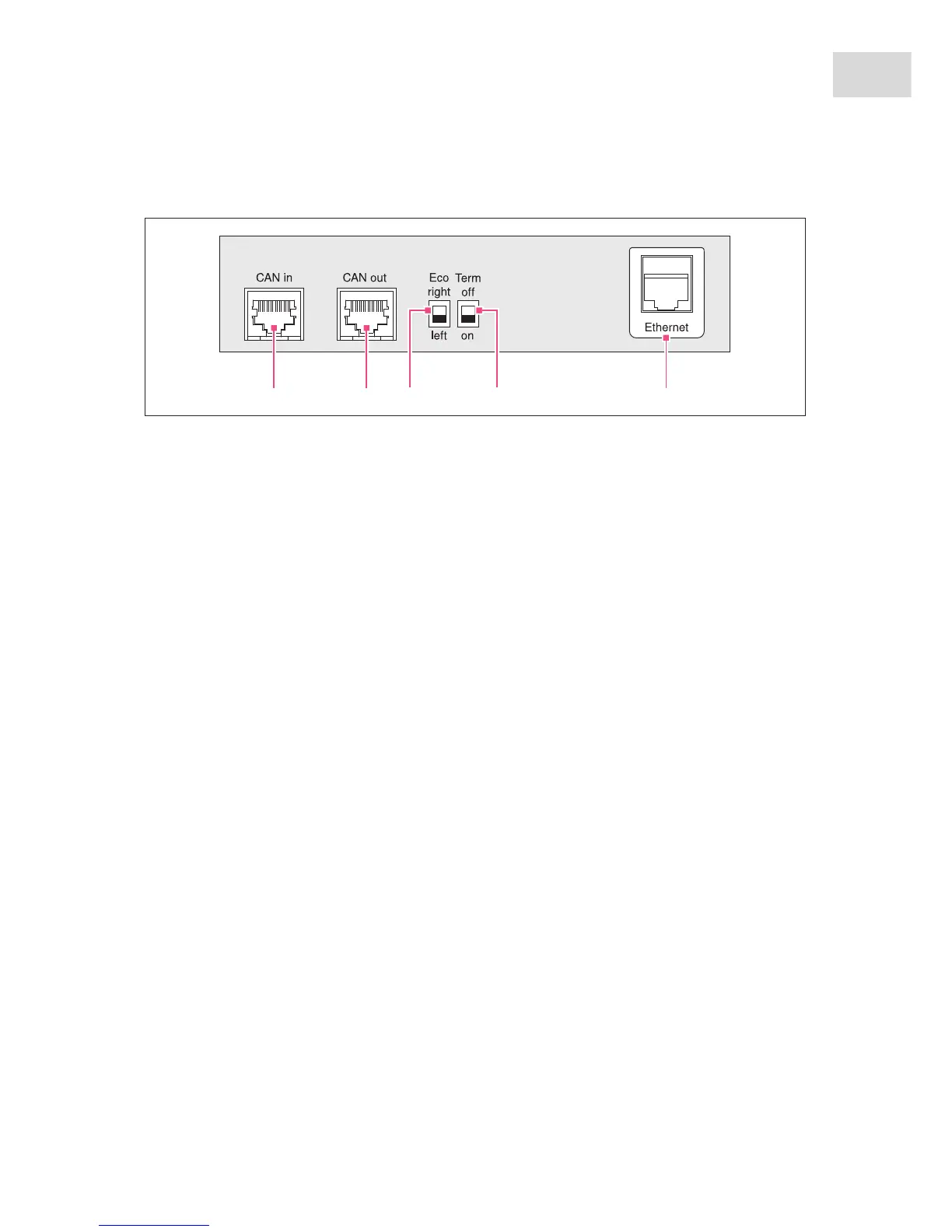

Abb. 2-5: Terminal block
Fig. 2-5: Terminal block
Only connect devices to the interfaces of the Mastercycler nexus that comply with the IEC 950/EN 60950
(UL 1950) standards.
1CAN in port
Connection to an eco device.
2CAN out port
Connection to a second eco device.
3Eco switch
Adjusts the position of eco device (left or right
next to a master variant with control panel).
4Term switch
Termination of the CAN data connection if
connected to the eco device.
5Ethernet port (not in the case of an eco device)
Connection of a master variant of the
Mastercycler nexus to an Ethernet network.
