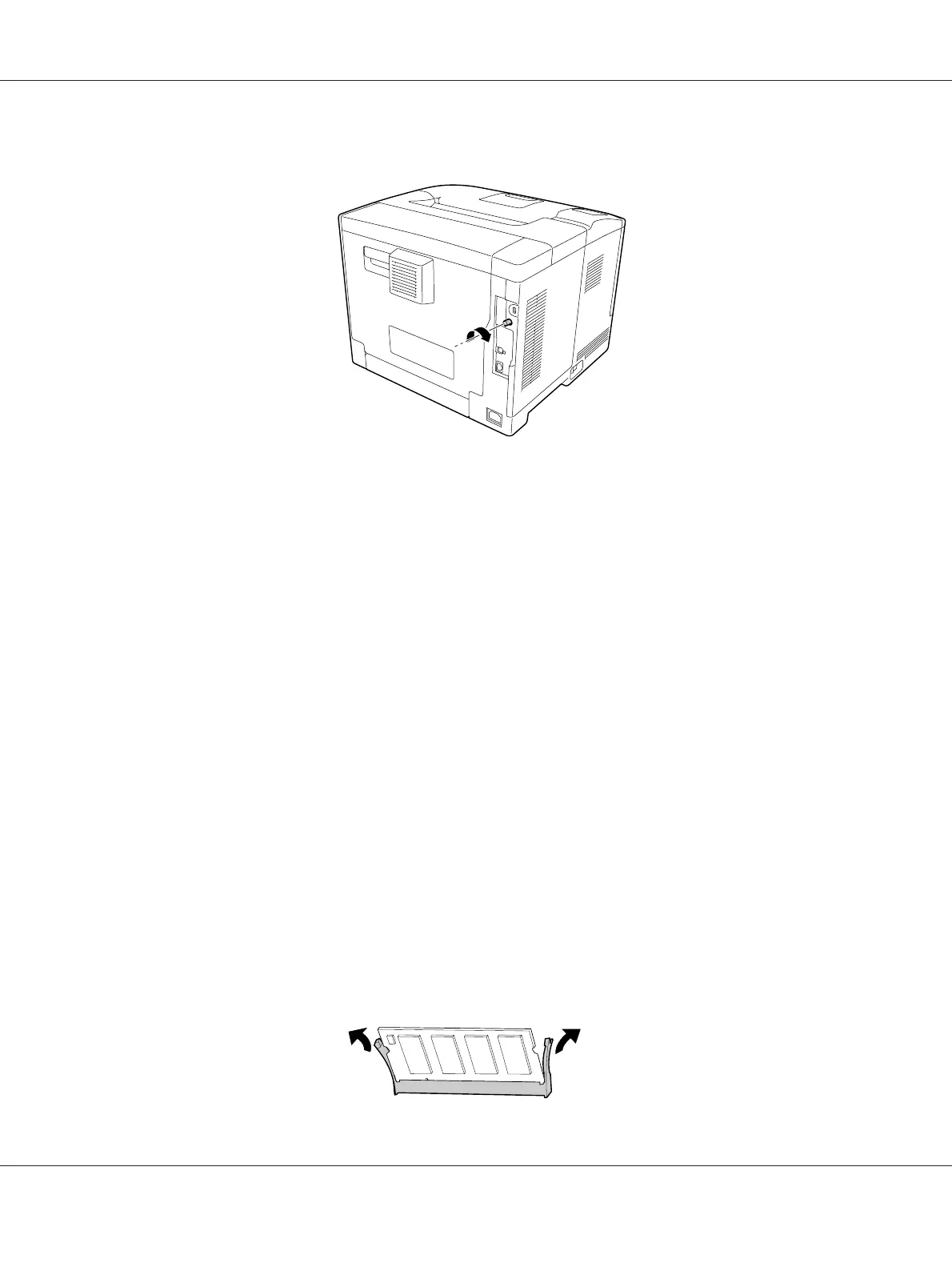

6. Tighten the screw on the back of the printer.
c
Important:
Tighten the screw firmly to prevent the printer’s left side cover from the falling off when moving
the printer.
7. Reconnect the interface cable and power cord and turn the printer on.
To confirm that the option is installed correctly, print a configuration status sheet. See “Printing a
Configuration Status Sheet” on page 151.
Removing a memory module
!
Caution:
Be careful when working inside the printer as some components are sharp and may cause injury.
c
Important:
Before you remove a memory module, be sure to discharge any static electricity by touching a
grounded piece of metal. Otherwise, you may damage static-sensitive components.
Perform the installation procedure in reverse.
When removing a memory module from its slot, spread apart the clips on each side of the memory slot,
and then slide the memory module out.
AL-M300/AL-M400 Series User's Guide
Installing Options 119
