9.4.2.2 Upper Housing
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/Decoration Plate Left Upper Sub/Paper Guide Top Assy
 Removal procedure

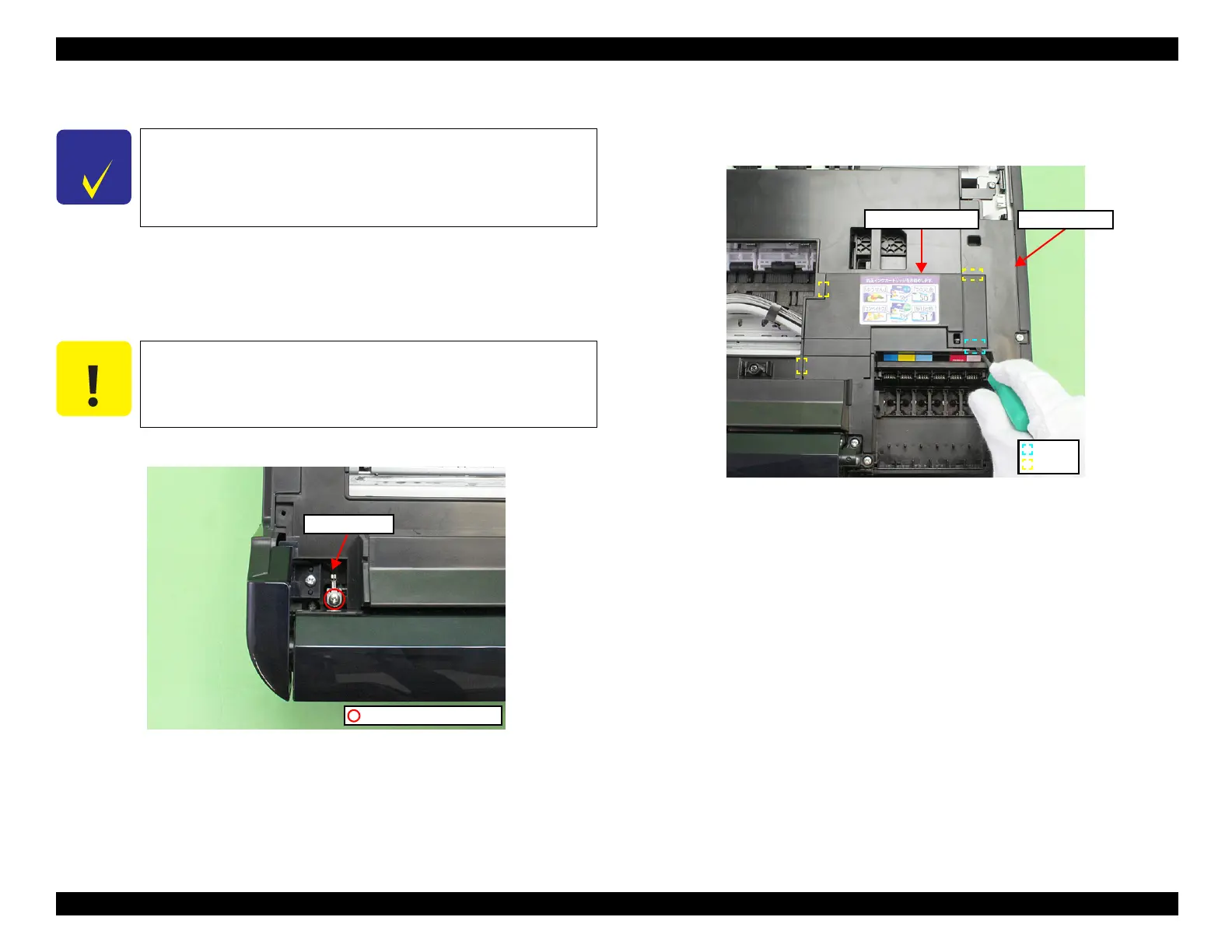

1. Remove the screw (x1) and release the grounding wire.
Figure 9-6. Releasing the Grounding Wire
2. Release the hook (x1) and ribs (x3) of the Front Harness Cover with the
flathead screwdriver, and remove the Front Harness Cover from the Upper
Housing.
Figure 9-7. Removing the Upper Housing (1)
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Upper Housing for Artisan 837/PX830FWD.
The disassembly/reassembly procedures for Artisan 730/PX730WD/
TX730WD differ from those for Artisan 837/PX830FWD, therefore,
see
"9.4.2.17 Upper Housing" (p.309) for the procedures.
C A U T I O N
The grounding wire is attached to the frame with a screw. Be careful
not to deform the Frame when removing the screw.
C.B.S. 3x6 (8±1Kgfcm)
Grounding wire
Upper Housing
Harness Front Cover
Hook
Rib
