Assembling the double-bin cut-sheet feeder
Using the double-bin cut-sheet feeder allows you to load two types of single-sheet paper in the printer
at the same time and easily switch between them. Before you install the double-bin cut-sheet feeder,
you need to connect the single-bin cut-sheet feeder (C80637*/ C80639*) to the high-capacity
cut-sheet feeder (C80638*/C80640*).

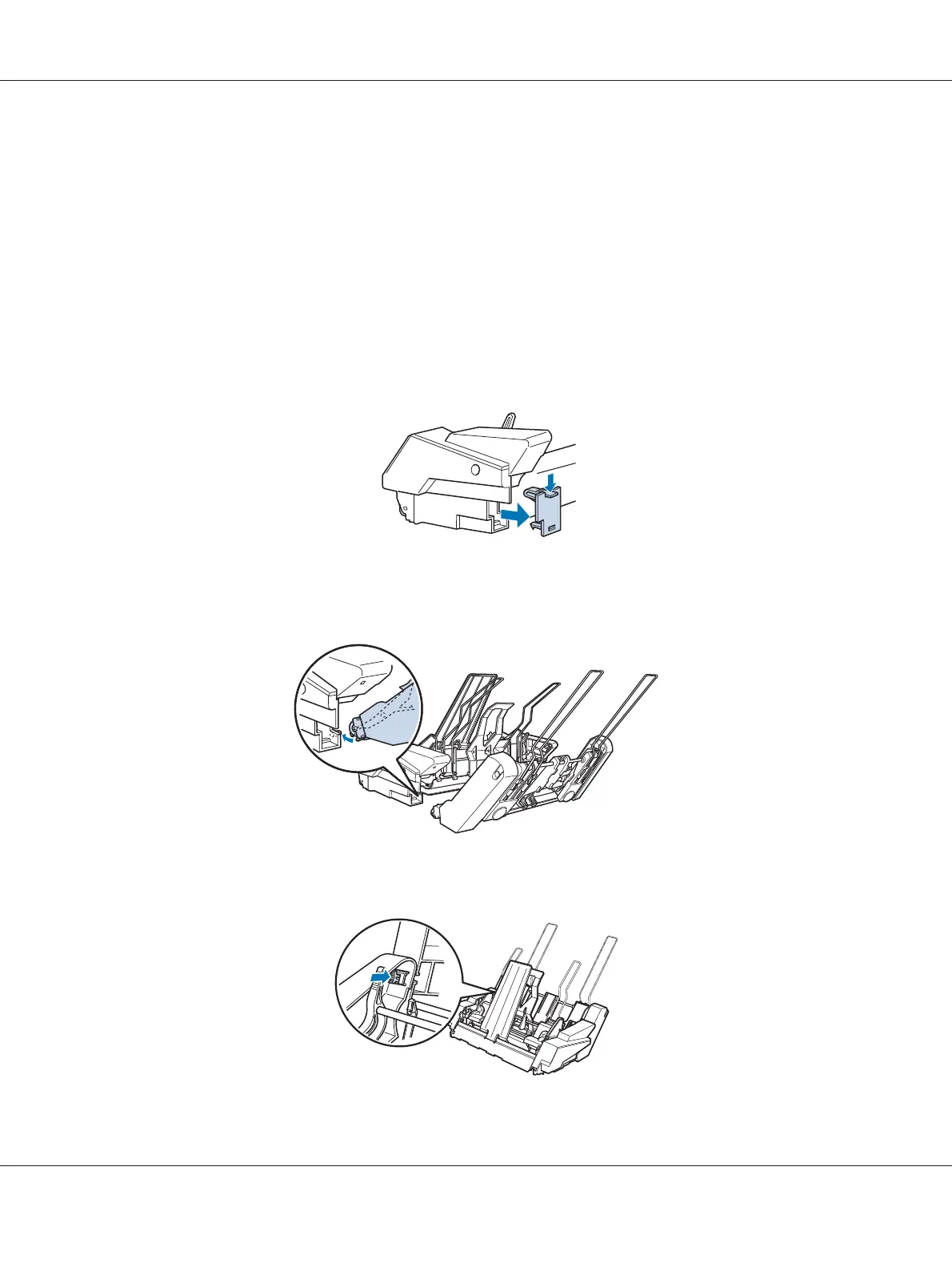

Follow these steps to assemble the double-bin cut-sheet feeder:
1. Remove the gear cover from the back of the high-capacity cut-sheet feeder by pressing down the
tab and pulling the cover backward. Store it in a safe place.
2. Hold the single-bin cut-sheet feeder in both hands. Fit the notches in the single-bin cut-sheet
feeder over the mounting posts on the back of the high-capacity cut-sheet feeder.
3. Lock the two cut-sheet feeders together by pushing firmly on the tab locks.
