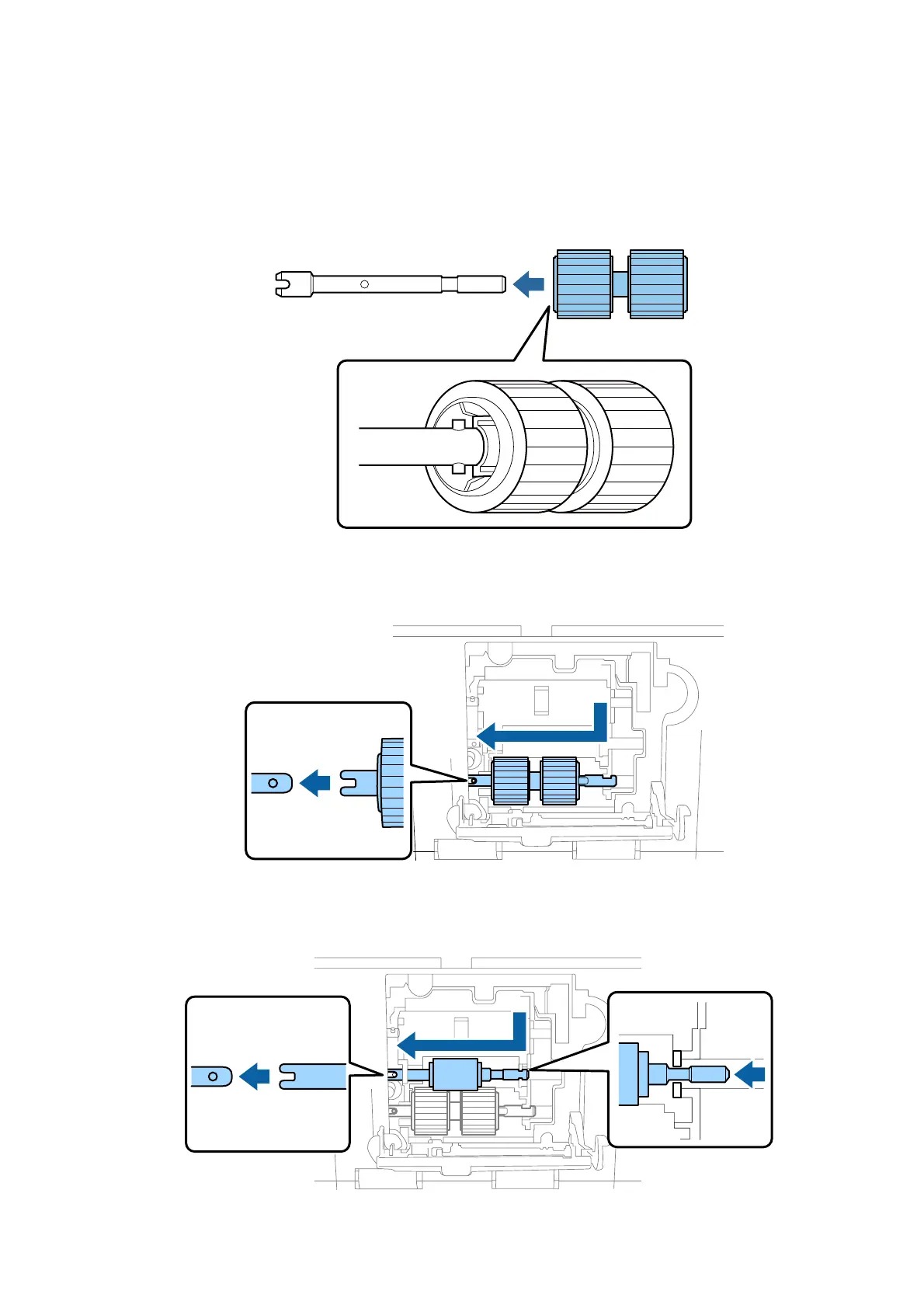

Attach the new lower pickup roller to the axis.
Align the holes on the roller with the projecting parts on the axis, and then slide the roller onto the axis until it
clicks into place.
If you cannot attach the roller, rotate it and then slide it all the way onto the axis.
L
Attach the new lower pickup roller in the correct position.
Make sure the notches are aligned.
M
Attach the new middle pickup roller in the correct position.
Make sure the notches are aligned.
