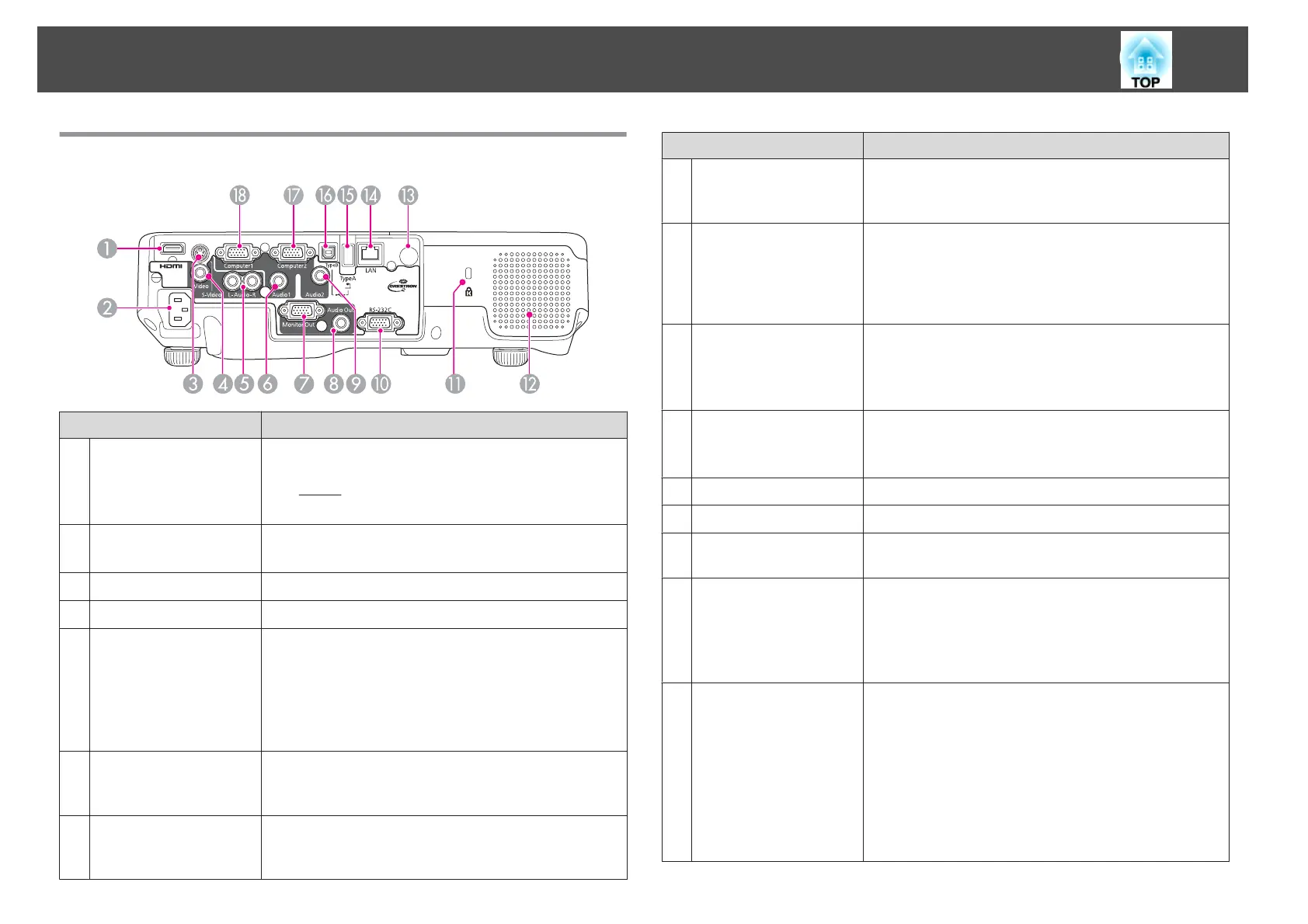

Epson EB-1840W User Manual

Rear
Name Function
A
HDMI port
(EB-1880/EB-1870/
EB-1850W only)
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.22
B
Power inlet
Connects the power cable to the projector.
s "From Installation to Projection" p.29
C
S-Video port
For S-video signals from video sources.
D
Video port
Inputs composite video signals from video sources.
E
Audio-L/R port
• For EB-1880/EB-1870/EB-1850W
Inputs audio from equipment connected to the S-
Video port or the Video port.
• For EB-1860/EB-1840W
Inputs audio from equipment connected to the
Computer port, the S-Video port, or the Video port.
F
Audio1 port
(EB-1880/EB-1870/
EB-1850W only)
Inputs audio from equipment connected to the
Computer1 port.
G
Monitor Out port
(EB-1880/EB-1870/
EB-1850W only)
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
Name Function
H
Audio Out port
(EB-1880/EB-1870/
EB-1850W only)
Outputs audio from the currently projected image to an
external speaker.
I
Audio2 port
(EB-1880/EB-1870/
EB-1850W only)
• Inputs audio from equipment connected to the
Computer2 port.
• Inputs audio from other devices when projecting
images from the device connected to the USB(TypeA)
port.
J
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.67
K
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.62
L
Speaker
Outputs audio.
M
Remote receiver
Receives signals from the remote control.
N
LAN port
(EB-1880 only)
Connects a LAN cable to connect to a network.
O
USB(TypeA) port
(EB-1880/EB-1870/
EB-1850W only)
• Connects a USB memory device or a digital camera, and
projects images as a Slideshow.
s "Projecting Without a Computer (Slideshow)
(EB-1880/EB-1870/EB-1850W only)" p.46
• Connects the optional Document Camera.
P
USB(TypeB) port
• Connects the projector to a computer via a
commercially available USB cable, and projects the
images on the computer.
s "Projecting with USB Display" p.31
• Connects the projector to a computer via the
commercially available USB cable to use the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.54
Part Names and Functions
11
