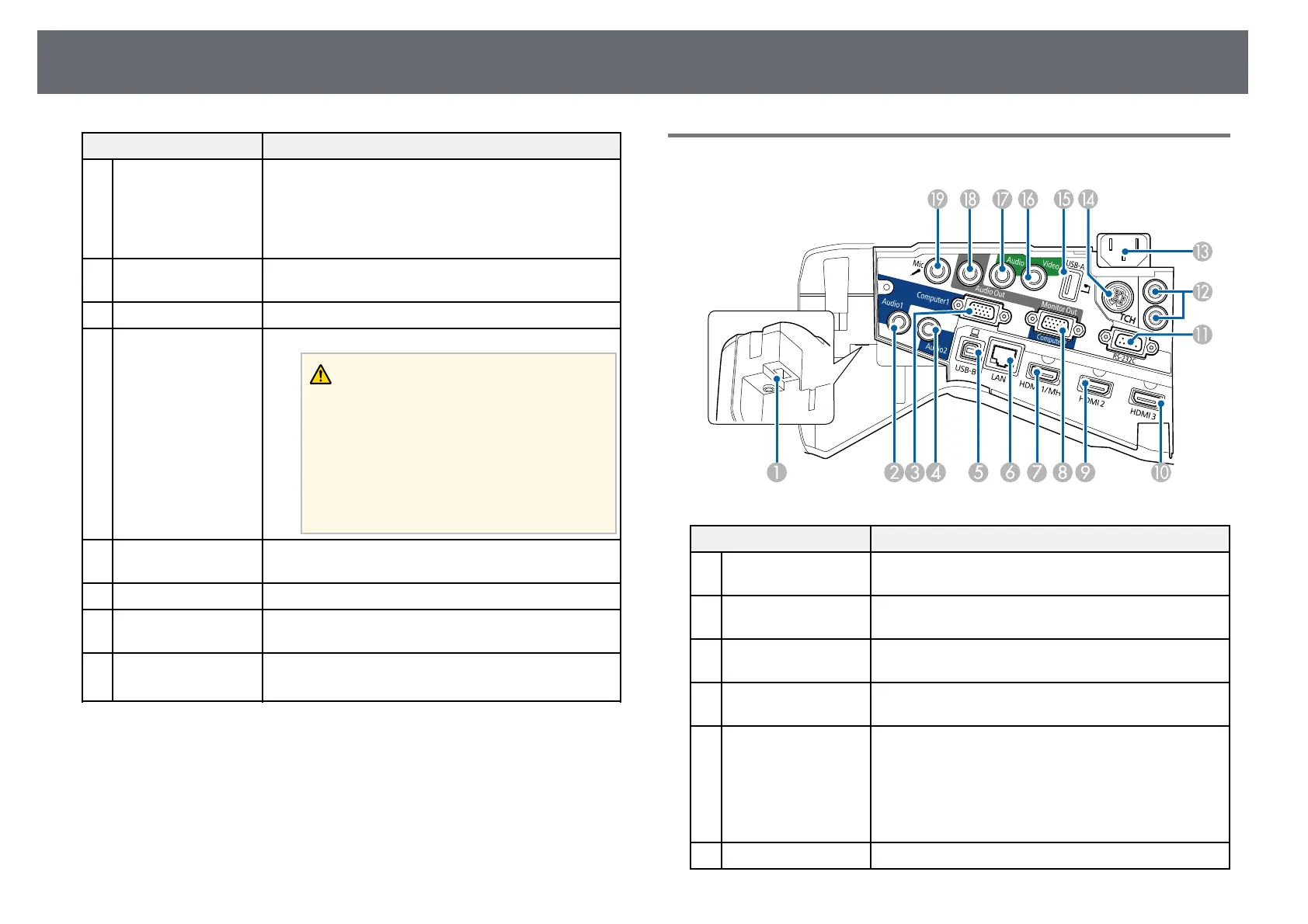

Projector Parts and Functions
14
Name Function
C
Interactive pen
receiver
(EB-695Wi/EB-
685Wi/EB-
680Wi/EB-675Wi)
Receives signals from the interactive pen.
D
Obstacle sensor Detects obstacles that are interfering with the
projection area.
E
Remote receiver Receives signals from the remote control.
F
Projection window Images are projected from here.
Warning
Do not look into the projection window
while projecting.
Do not place any objects or put your hand
near the projection window. It could cause
burns, fire, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
G
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
H
Air filter cover Open to access the air filter or focus lever.
I
Air intake vent (air
filter)
Takes in air to cool the projector internally.
J
Focus lever Adjusts the image focus.
Open the air filter cover to operate.
Projector Parts - Interface
Name Function
A
Wireless LAN module
slot
Install the optional Wireless LAN module.
B
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
C
Computer1 port Inputs image signals from a computer and component
video signals from other video sources.
D
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
E
USB-B port Connects a USB cable to the computer to project
computer images or to use the Wireless Mouse
function.
Connects the projector to a computer via the supplied
USB cable to use the interactive pen as a mouse (EB-
695Wi/EB-685Wi/EB-680Wi/EB-675Wi).
F
LAN port Connects a LAN cable to connect to a network.
