EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 111 Revision A
 EB-972/982W/992F/118, PL 119W

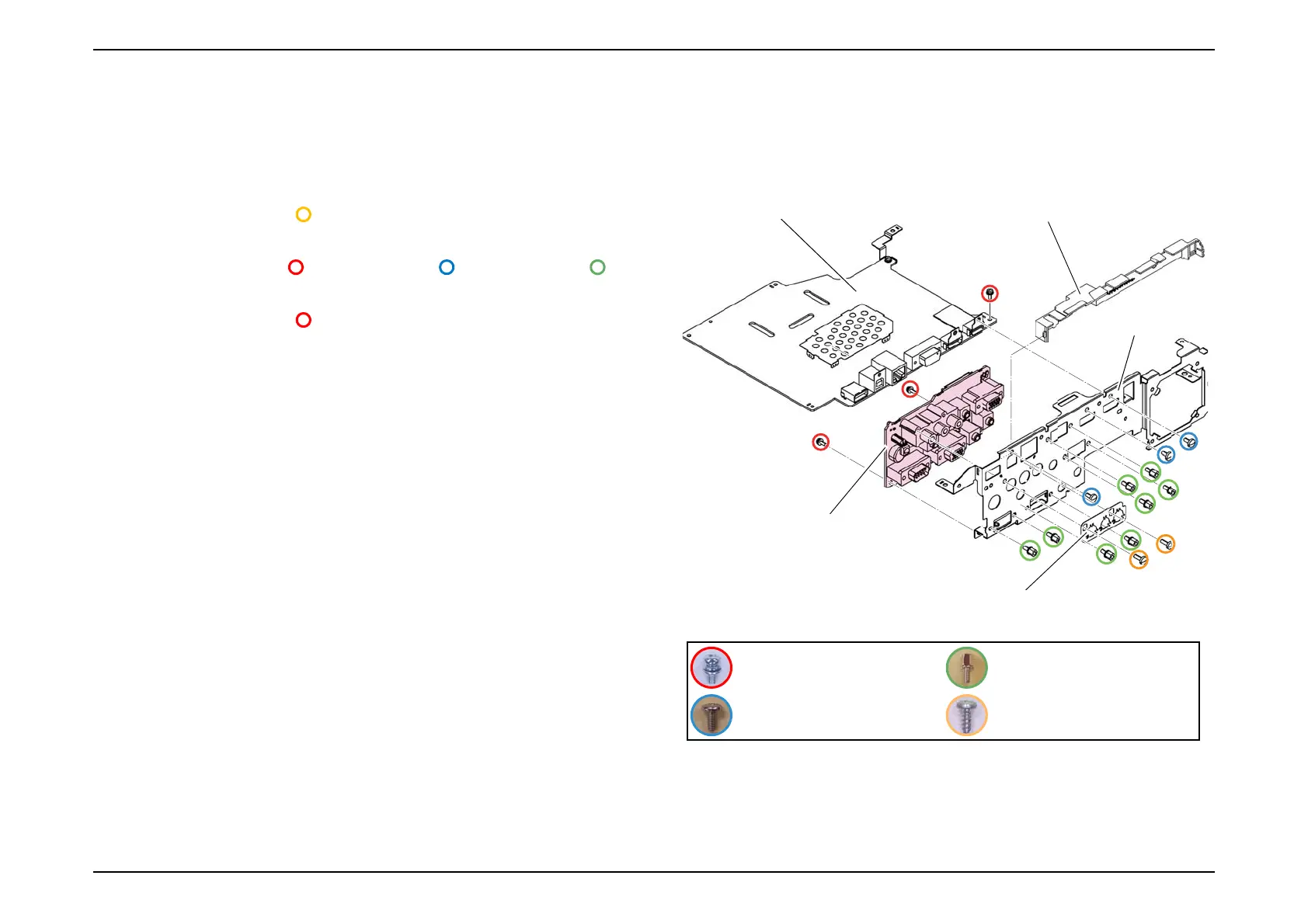

1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
MA Board Assy (p100)
2. Remove the "IF Shade Cover".
3. Remove the two screws ( ) and remove the "Conduction Plate 3RCA"
from the "MA Frame".
4. Remove the one screw ( ), the three screws ( ), the eight screws ( ),
and remove the "MA Frame" from the "MA Board (Assy)".
5. Remove the two screws ( ) and remove the "IF Board" from the "MA
Board (Assy)".
MA Board (Assy)
IF Board
MA Frame
Conduction Plate 3RCA
IF Shade Cover
C.B.SCREW,3X6,F/NI
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C 1/4-40X1/4,H.H.,F/NI,O SCREW
C.B.P-TITE SCREW,3X8,F/ZN-3C
