3.3 Disassembly and Assembly
3.3.1 Air Filter
DISASSEMBLY PROCEDURE

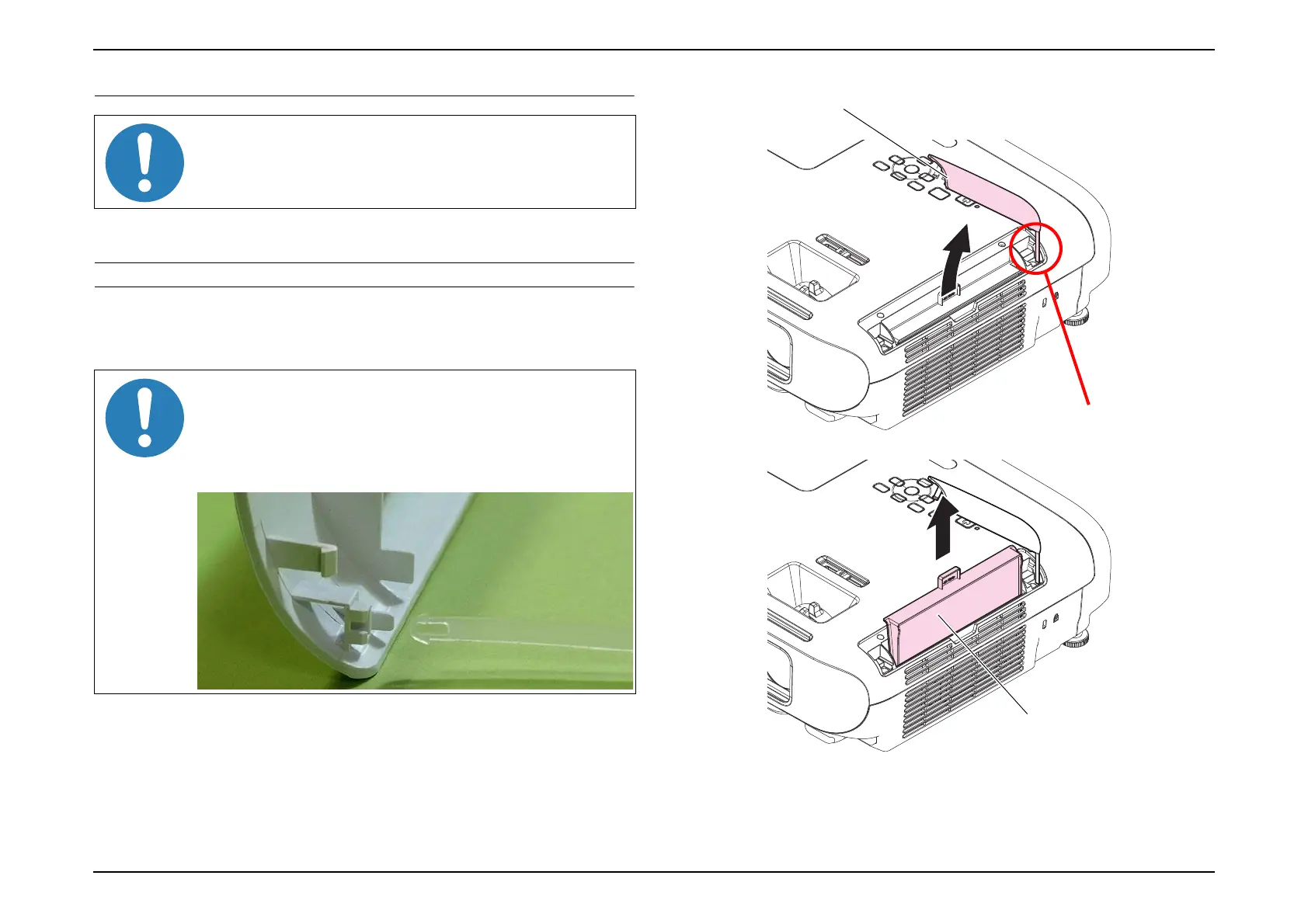

1. Remove the "Air Filter Cover".
2. Remove the "Air Filter Assy".
The part names in this chapter are written as
abbreviations.
See 3.9 Part Names List (p166) for the names of the after
service parts in the SPI (Service Parts Information).
EB-E20/X49/W49/972/982W/992F/118, PL 119W
If the "Air Filter Cover Band" is removed from the "Air
Filter Cover", the end of the band will be deformed and the
fixing force will be reduced. When reassembling, be sure to
replace the "Air Filter Cover Band" with a new one.
Air Filter Assy
Air Filter Cover
Air Filter Cover Band*
* EB-E20/X49/W49/972/982W/992F/118, PL 119W
