EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 84 Revision A
3.3.6.1 SW Board
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the five screws ( ) and remove the "SW Board".
3. Remove the connector of the connected cable.
4. Remove the following parts:
 SW Cable
(See How to unlock connectors for FFC/FPC (p67))
 LED Lens
 SW Button
 Power Button
When attaching the "SW Board", fasten the screws in the
order shown below.
①
②
③
④
⑤

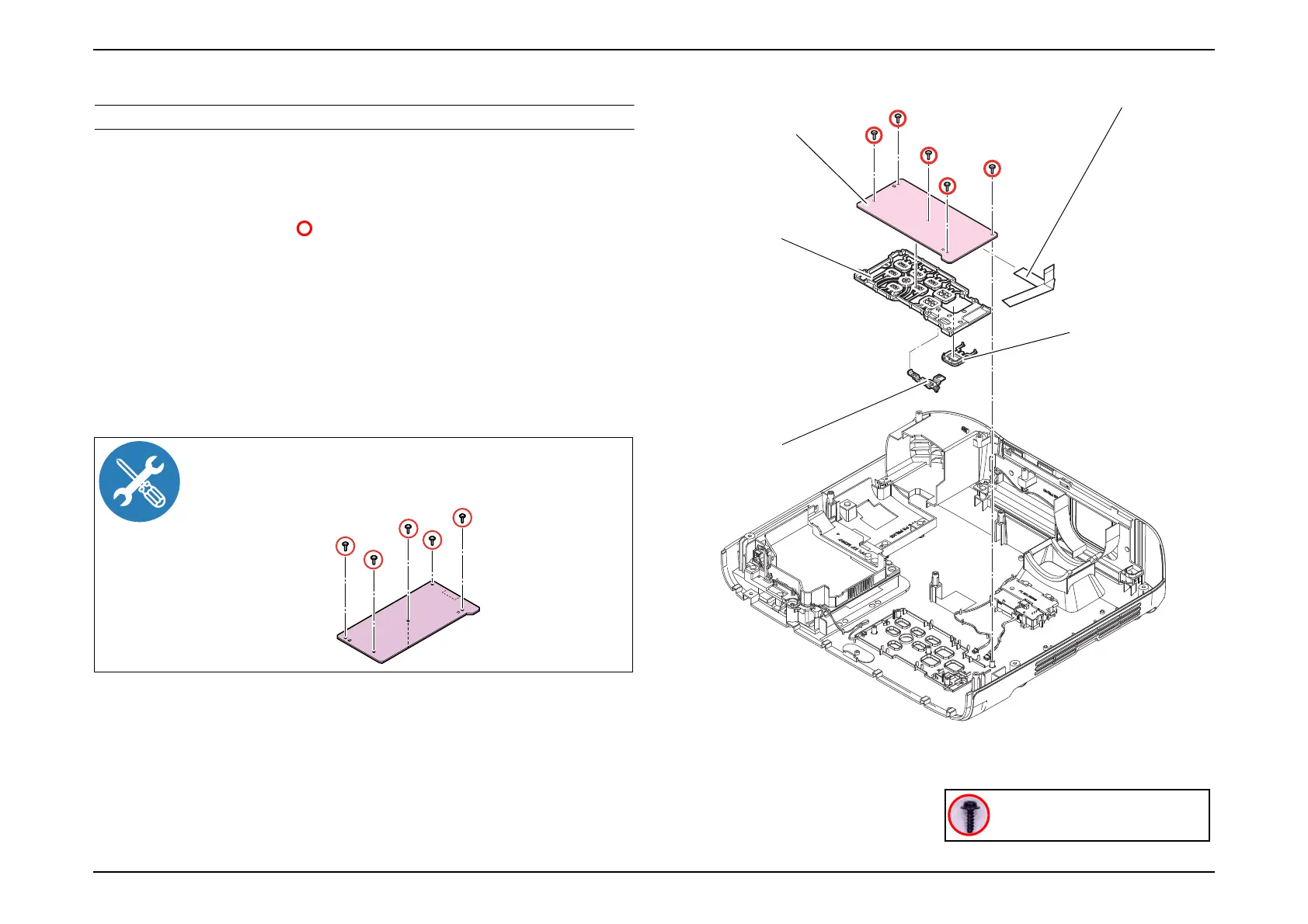

SW Board
SW Cable
LED Lens
SW Button
Power Button
C.C.P-TITE SCREW,2X6.5,F/ZB-3C
