3.3.11 Optical Engine (Assy)
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
MA Board Assy (p100)

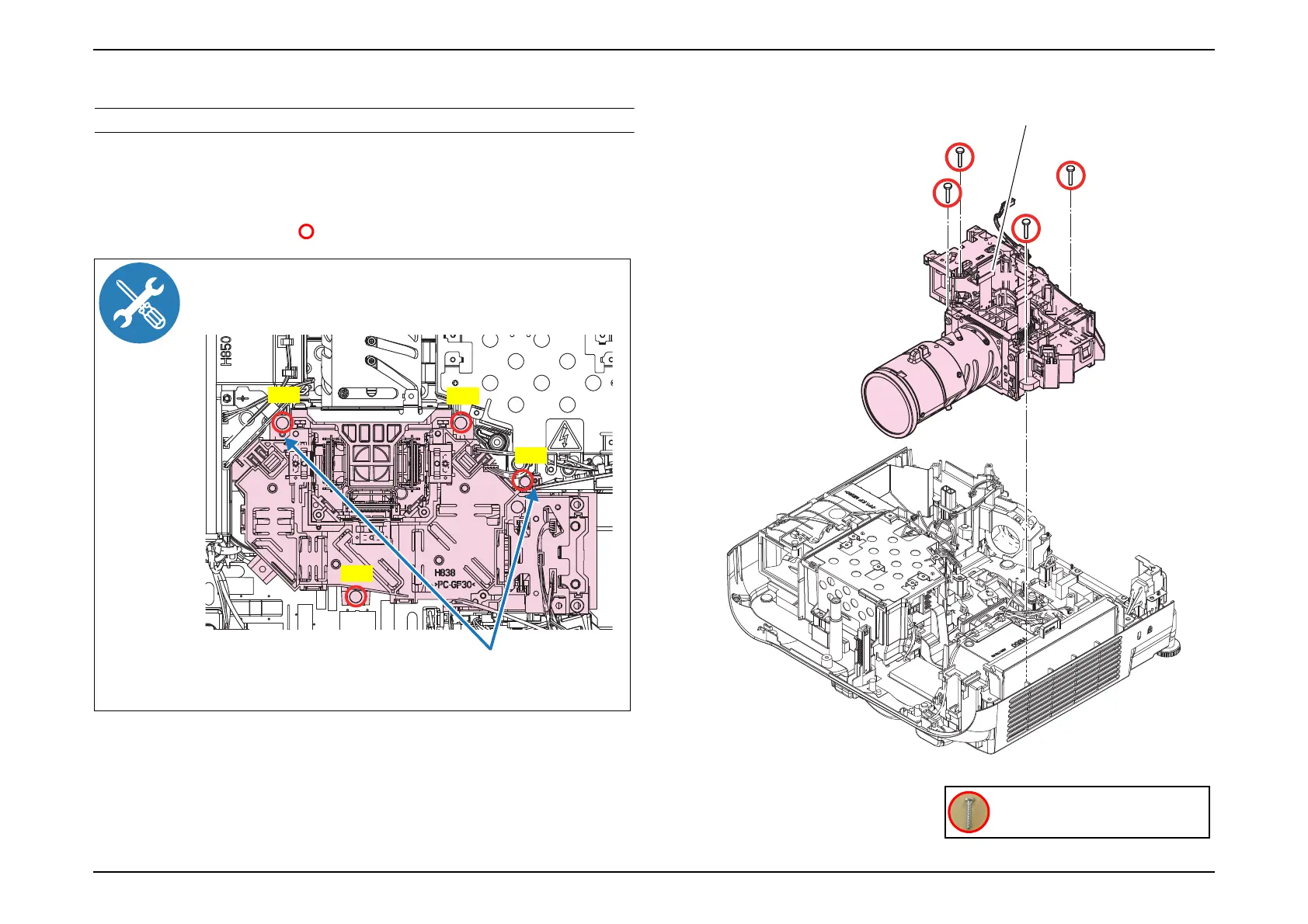

2. Remove the four screws ( ) and remove the "Optical Engine Assy".
When attaching the "Optical Engine Assy", set it to the pin
positions properly and tighten the screws in the order
shown below.
Pin positions
(1)
(2)
(3)
(4)
Optical Engine Assy
C.B.P-TITE SCREW,3X15,F/ZN-3C
To Next Page
