Epson EB-E01 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 115 Revision A

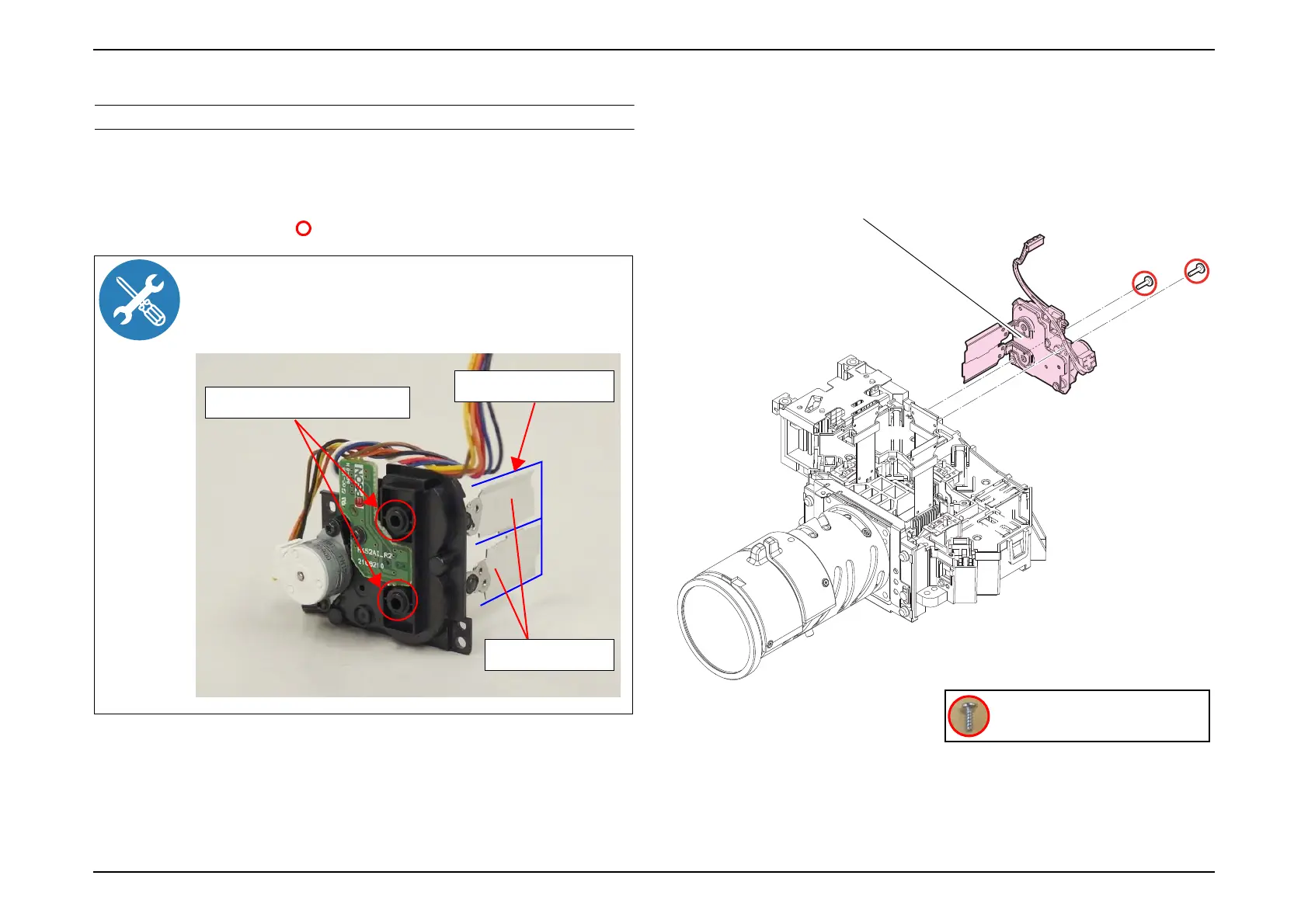

3.3.11.1 Auto Iris Assy
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove the two screws ( ) and remove the "Auto Iris Assy".
Before attaching or removing the "Auto Iris Assy", move
the Auto Iris Blades to the home position by inserting a
Phillips screw driver (No0) into the holes shown in the
figure below.
Screwdriver insertion positions
Home position
Auto Iris Blades
Auto Iris Assy
C.B.P-TITE SCREW,2.5X8,F/ZN-3C

Epson EB-E01 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	0 - 1.76 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Supported aspect ratios	16:10, 16:9
Contrast ratio (typical)	15000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
RMS rated power	2 W
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Placement	Ceiling, Desktop
Product type	Short throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	378 mm
Package width	329 mm
Package height	150 mm
Package weight	3500 g
