Epson EB-E01 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 155 Revision A
2. Checking the MA Board
Check the following on the MA Board.

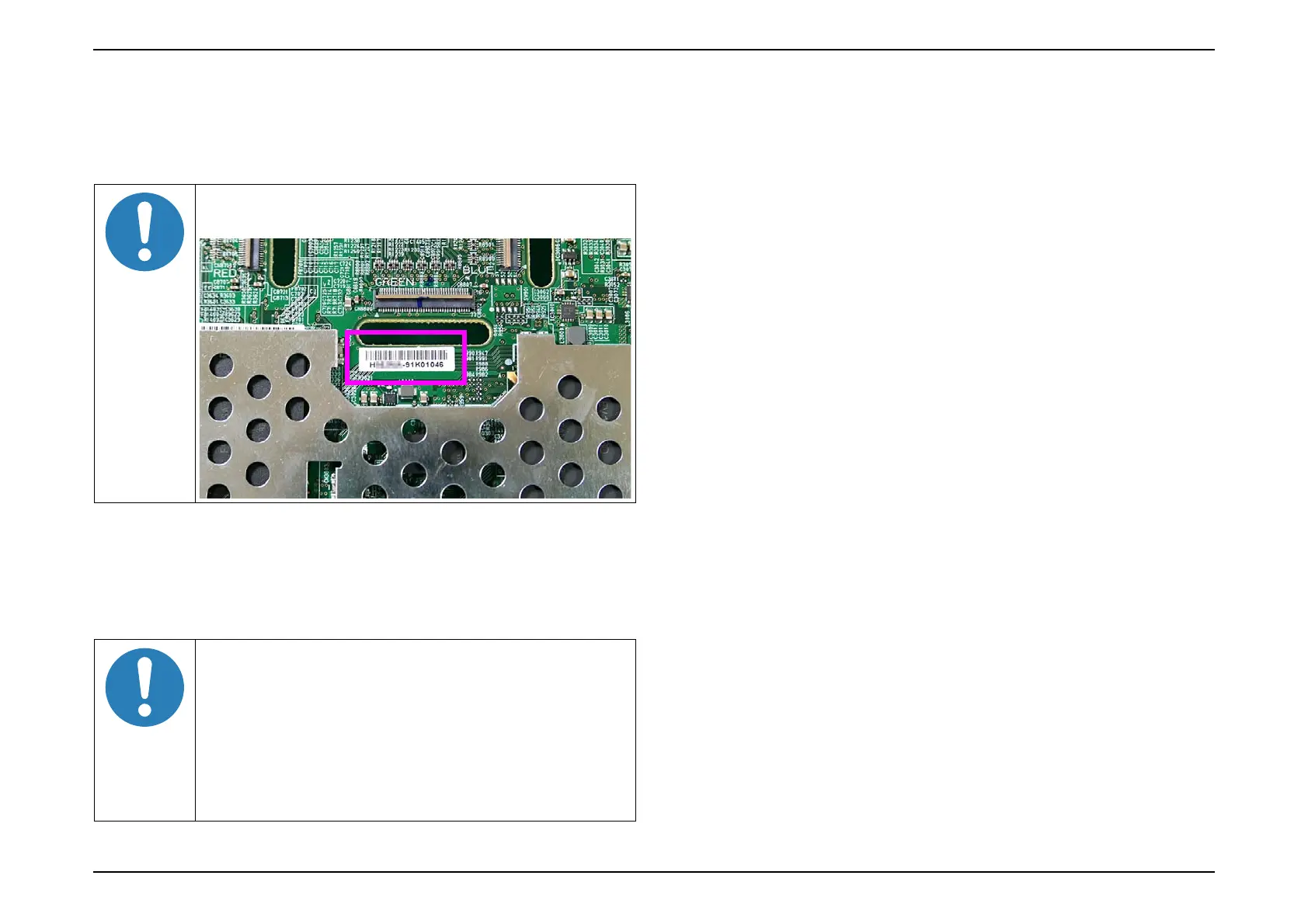

 Check the label attached on the MA Board for the current model.
 Confirm the check marks in the marking box.
3. Checking the model group list
Refer to the Technical Information "AP08-0912E" and obtain the latest
model group list, then check which group the current MA Board belongs
to.
4. Locating the trouble (Engine/MA Board)
Prepare both a good engine and an MA board, and check either of the
engine or the MA board has trouble by changing it with the good one.
"Hxxxx-xxxxxxxx" is printed on the label. The three or
four digits after "H" indicate the current model.
 Make sure the group is correct since even among the
same model projectors, various MA Boards may be
used.
 Even if 3-digit number; "HHH" of serial number
indicated on a label attached to the optical engine;
"FYMHHHNNNN", is different, this engine can be
used as the same type of optical engine as long as the
parts compatibility is maintained.

Epson EB-E01 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	0 - 1.76 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Supported aspect ratios	16:10, 16:9
Contrast ratio (typical)	15000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
RMS rated power	2 W
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Placement	Ceiling, Desktop
Product type	Short throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	378 mm
Package width	329 mm
Package height	150 mm
Package weight	3500 g
