Epson EB-E01 User Manual

Projector Connections
27
See these sections to connect the projector to a variety of projection sources.
Attention
Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or your
projector could be damaged or could malfunction.
a
See the Quick Start Guide for a list of cables supplied with your
projector. Purchase optional or commercially available cables when
necessary.
gg Related Links
• "Connecting to a Computer" p.27
• "Connecting to Video Sources" p.29
• "Connecting to External USB Devices" p.31
• "Connecting to a Document Camera" p.32
• "Connecting to External Devices" p.32
Connecting to a Computer
Follow the instructions in these sections to connect a computer to the
projector.
gg Related Links
• "Connecting to a Computer for VGA Video and Audio" p.27
• "Connecting to a Computer for USB Video and Audio" p.28
• "Connecting to a Computer for HDMI Video and Audio" p.29

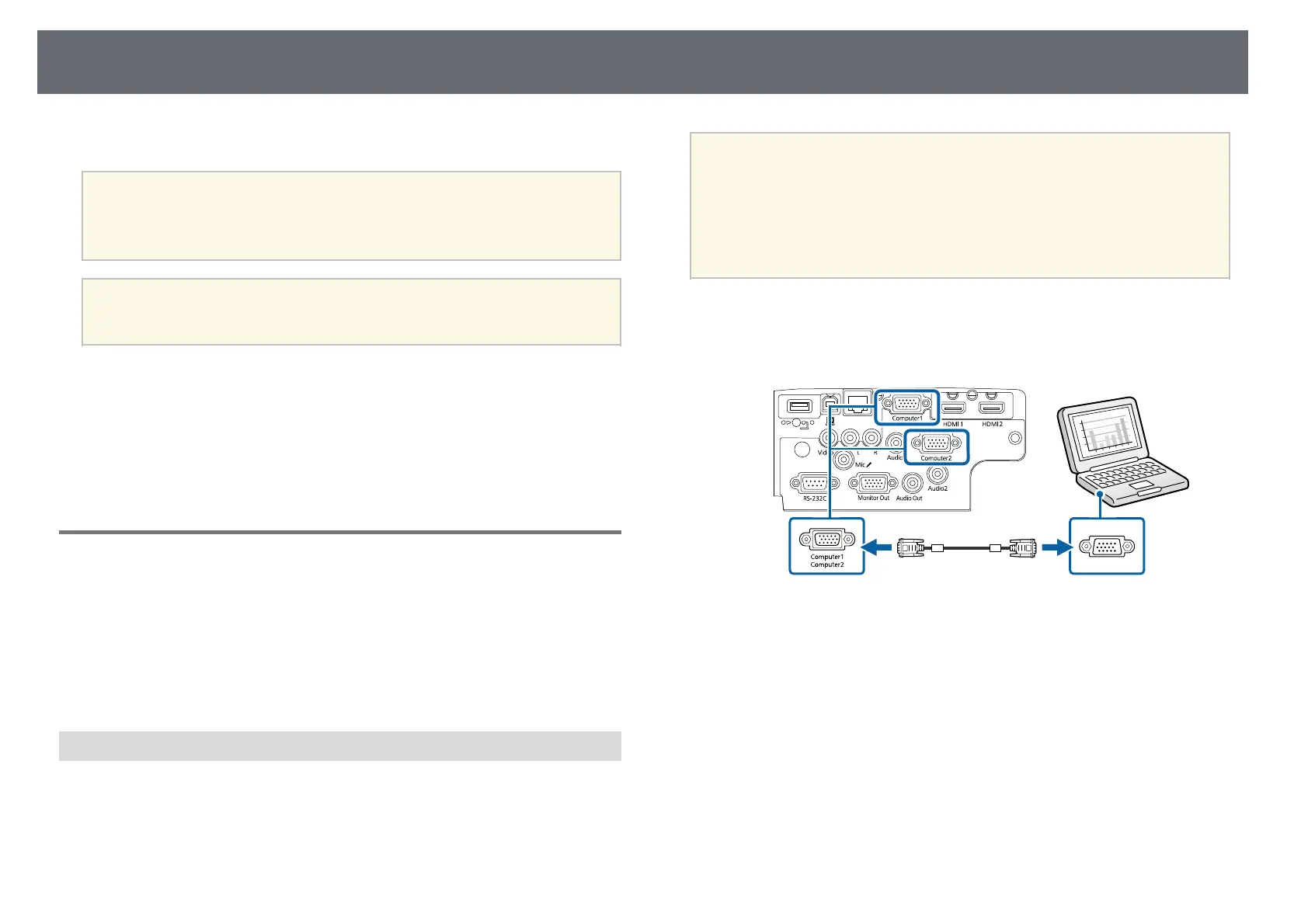

Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer
cable.
You can play sound through the projector's speaker system by connecting a
commercially available 3.5 mm stereo mini-jack audio cable.
a
• To connect a computer that does not have a VGA video port, you
need an adapter that allows you to connect to the projector's VGA
video port.
• You can also set the port used for audio input in the projector's
Extended menu.
s Extended > A/V Settings > Audio Settings > Audio Output
• Make sure the audio cable is labeled "No resistance".
a
Connect the VGA computer cable to your computer's monitor port.
b
Connect the other end to a Computer port on the projector.
c
Tighten the screws on the VGA connector.
d
Connect the audio cable to your laptop's headphone or audio-out jack,
or your desktop's speaker or audio-out port.

Epson EB-E01 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	0 - 1.76 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Supported aspect ratios	16:10, 16:9
Contrast ratio (typical)	15000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
RMS rated power	2 W
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Placement	Ceiling, Desktop
Product type	Short throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	378 mm
Package width	329 mm
Package height	150 mm
Package weight	3500 g
