Projector Connections
30
a
• If the port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
gg Related Links
• "Connecting to an HDMI Video Source" p.30
• "Connecting to a Composite Video Source" p.30

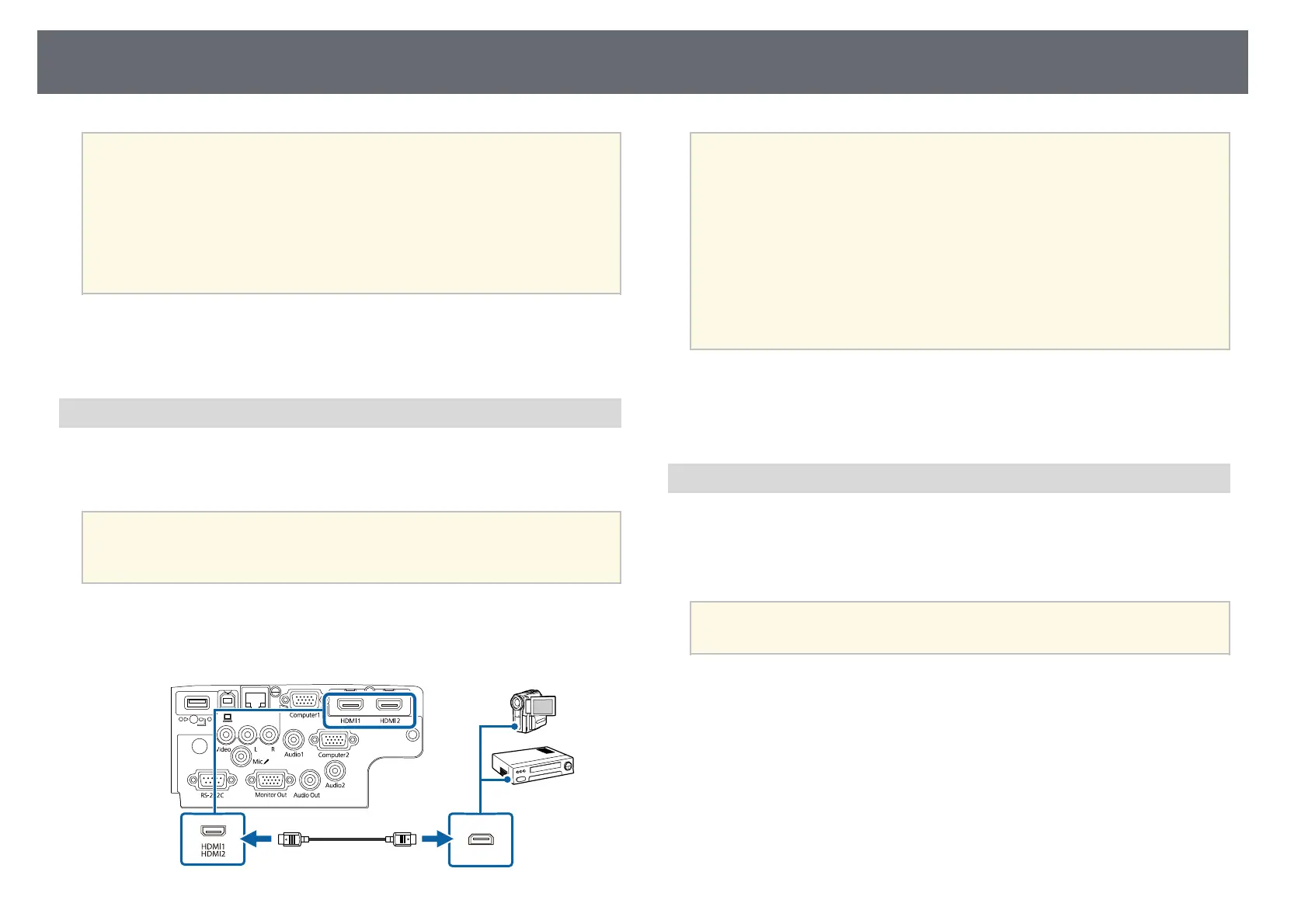

Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
a
Connect the HDMI cable to your video source's HDMI output port.
b
Connect the other end to the projector's HDMI port.
a
If you have problems hearing audio through the HDMI connection,
connect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
video source's audio out port. Select the audio input port you
connected to in the projector's Extended menu.
s Extended > A/V Settings > Audio Settings > HDMI Audio
Output
s Extended > A/V Settings > Audio Settings > HDMI1 Audio
Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio
Output
gg Related Links
• "Projector Setup Settings - Extended Menu" p.134
• "List of Functions" p.10
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.

Epson EB-E01 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	0 - 1.76 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Supported aspect ratios	16:10, 16:9
Contrast ratio (typical)	15000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
RMS rated power	2 W
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Placement	Ceiling, Desktop
Product type	Short throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	378 mm
Package width	329 mm
Package height	150 mm
Package weight	3500 g
