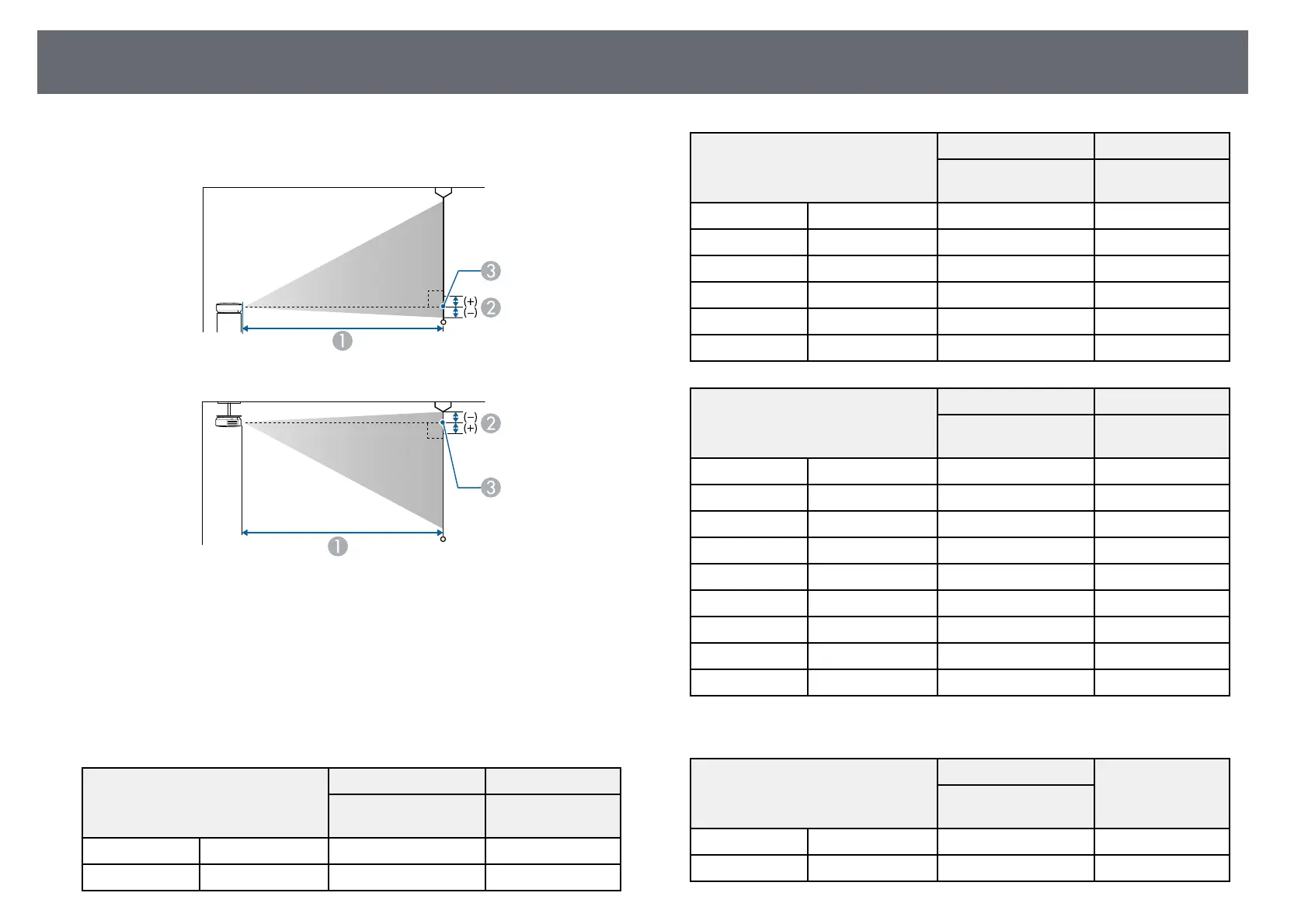

Screen Size and Projection Distance
Check the table here to determine how far to place the projector from the
4:3 screen size
A B
screen based on the size of the projected image.
Minimum (Wide) to Minimum (Wide)
Maximum (Tele)
60" 122 × 91 177 - 240 -10
70" 142 × 107 207 - 280 -12
80" 163 × 122 237 - 321 -13
100" 203 × 152 297 - 401 -17
150" 305 × 229 446 - 603 -25
200" 406 × 305 595 - 805 -33
16:9 screen size
A B
Minimum (Wide) to Minimum (Wide)
Maximum (Tele)
28" 62 × 35 89 - 121 1
30" 66 × 37 96 - 130 1
50" 111 × 62 161 - 218 1
60" 133 × 75 193 - 262 2
70" 155 × 87 226 - 306 2
80" 177 × 100 258 - 349 2
A
Projection distance (cm)
100" 221 × 125 323 - 437 3
B
Distance from the center of the lens to the base of the screen (or to the top of
150" 332 × 187 486 - 657 4
the screen, if suspended from a ceiling) (cm)
200" 443 × 249 649 - 877 5
C
Center of lens
XGA (EB-X31/EB-X04/EB-X130/EB-X350/EB-X300)
SVGA (EB-S31/EB-S04/EB-S130/EB-S300)
4:3 screen size
A B
4:3 screen size
A B
Minimum (Wide) to
Minimum (Wide) to Minimum (Wide)
Maximum (Tele)
Maximum (Tele)
30" 61 × 46 89 - 107 -5
30" 61 × 46 88 - 119 -5
40" 81 × 61 119 - 143 -7
50" 102 × 76 147 - 200 -8
