Epson EB-U32 - External Dimensions

To Next Page

To Previous Page

157

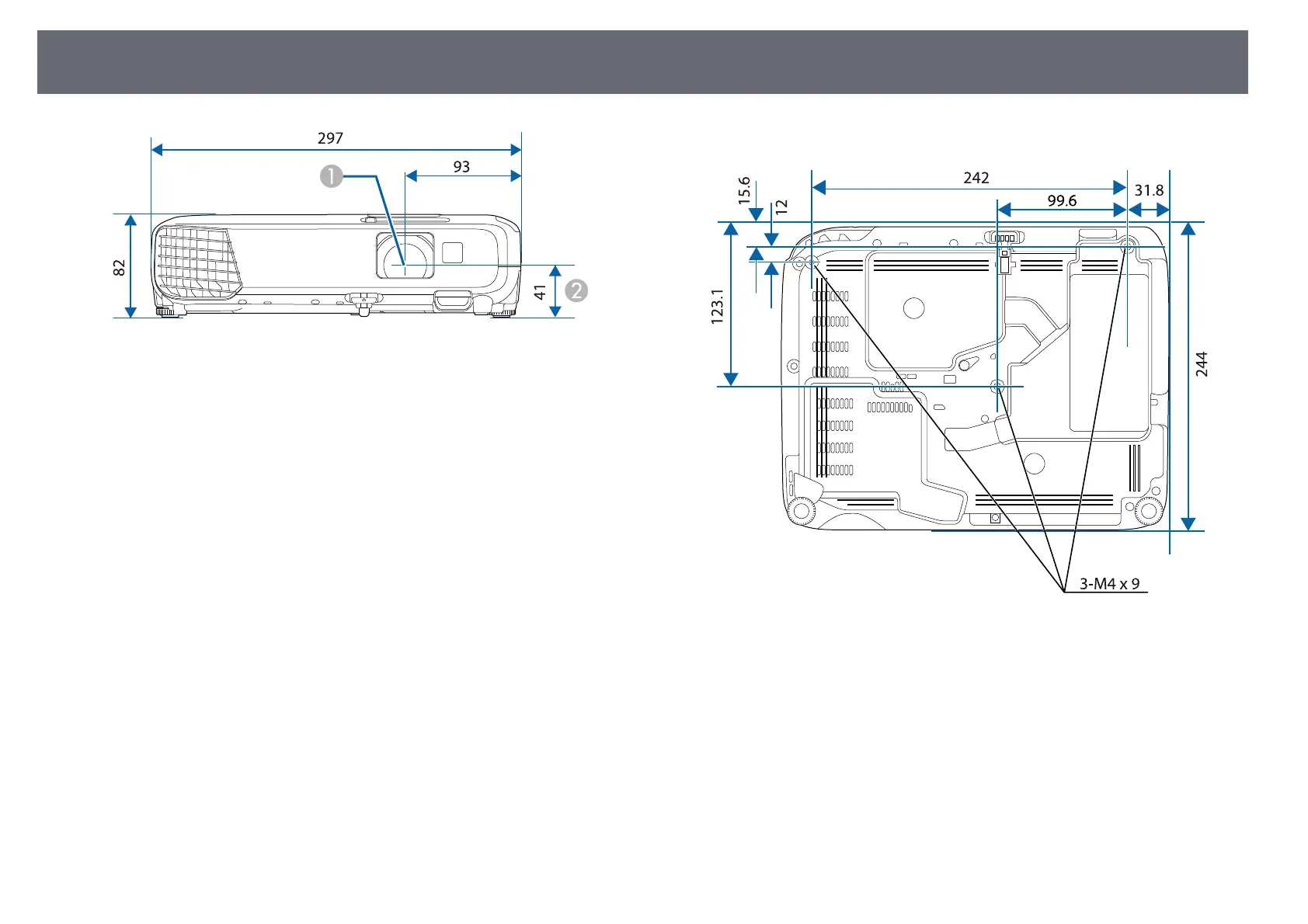

External Dimensions

EB-U32/EB-U04/EB-U130

Center of lens

Distance from center of lens to suspension bracket fixing point
