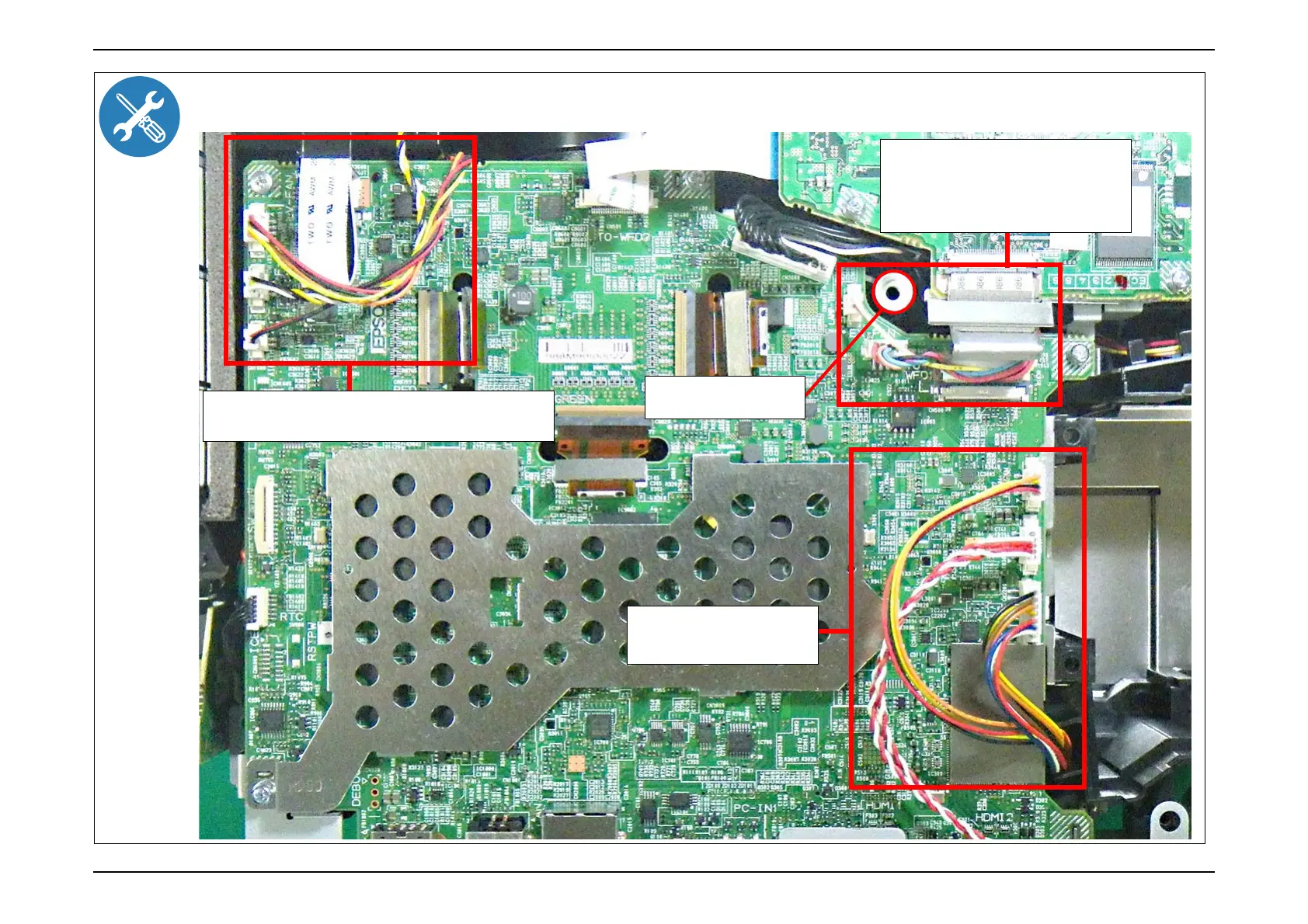

Connect the MA Board ASSY connectors as shown in this figure.
Wind the "TH Cable" and "RCF Cable" once around
the cable of the INT Fan.
Do not twist the cables.
They may gather over the
board.
Do not route the cables
over the screw hole.
Wind the "TH Cable" once around the
cable of the "EX Fan".
*For models with "WFD Board"
Route the outer section of the FFC.
