Epson EB-X06 - Lower Case;Ir Board

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 136 Revision A

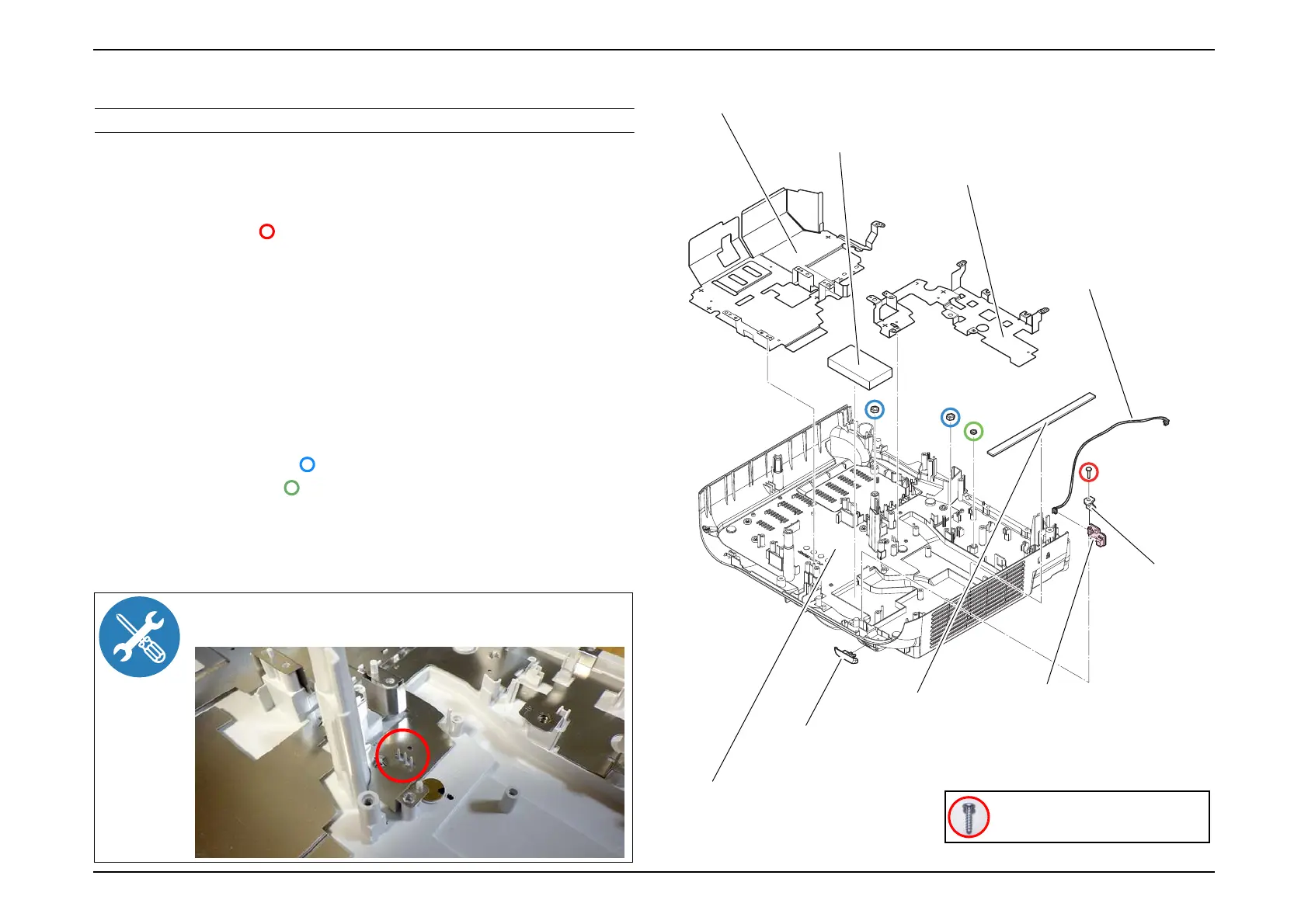

3.3.18 Lower Case/IR Board
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Filter Boards (p135)
2. Remove the screw ( ) and remove the following parts:
(EB-FH52/972/982W/992F)
 PS Holder
 IR Board
 RCF Cable
3. Remove the following parts from the "Lower Case".
 Lower Shield Plate A
 Lower Shield Plate B
 RC Filter
 6N-A,4,B/NI x2 pcs ( )
 H.N.-3,3,F/ZN-3C( )
EB-FH52/972/982W/992F only
 Lower Cushion Seal
 Lower Cushion
Be careful while routing as the parts shown in the figure
are easily breakable.
IR Board
RCF Cable
Lower Shield Plate A
Lower Shield Plate B
RC Filter
PS Holder
Lower Cushion Seal
Lower Case
Lower Cushion
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
