Epson EB-X06 - INT Duct (Assy)

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 129 Revision A

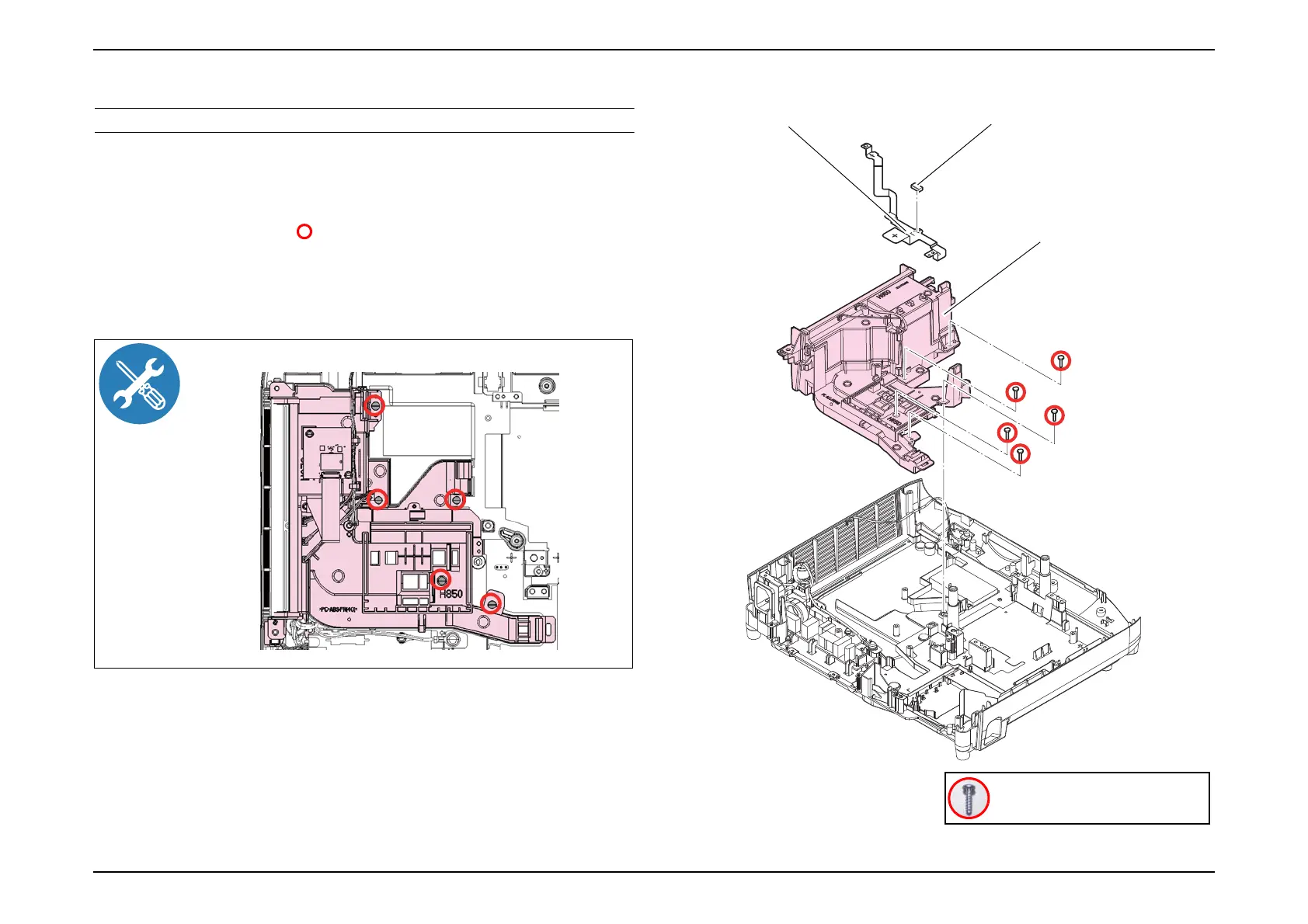

3.3.16 INT Duct (Assy)
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove the five screws ( ) and remove the "INT Duct (Assy)".
3. Remove the following parts from the "INT Duct (Assy)".
 Lower Conduction Plate
 Conduction Cushion
Screws
Conduction Cushion
INT Duct (Assy)
Lower Conduction Plate
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
