EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 131 Revision A
3.3.16.1 IR Board
DISASSEMBLY PROCEDURE
EB-E01/X06/W06/FH06/E10/X51/W51/W52/E20/X49/W49/118,
PL 119W, EH-TW740/TW750
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
INT Duct (Assy) (p129)

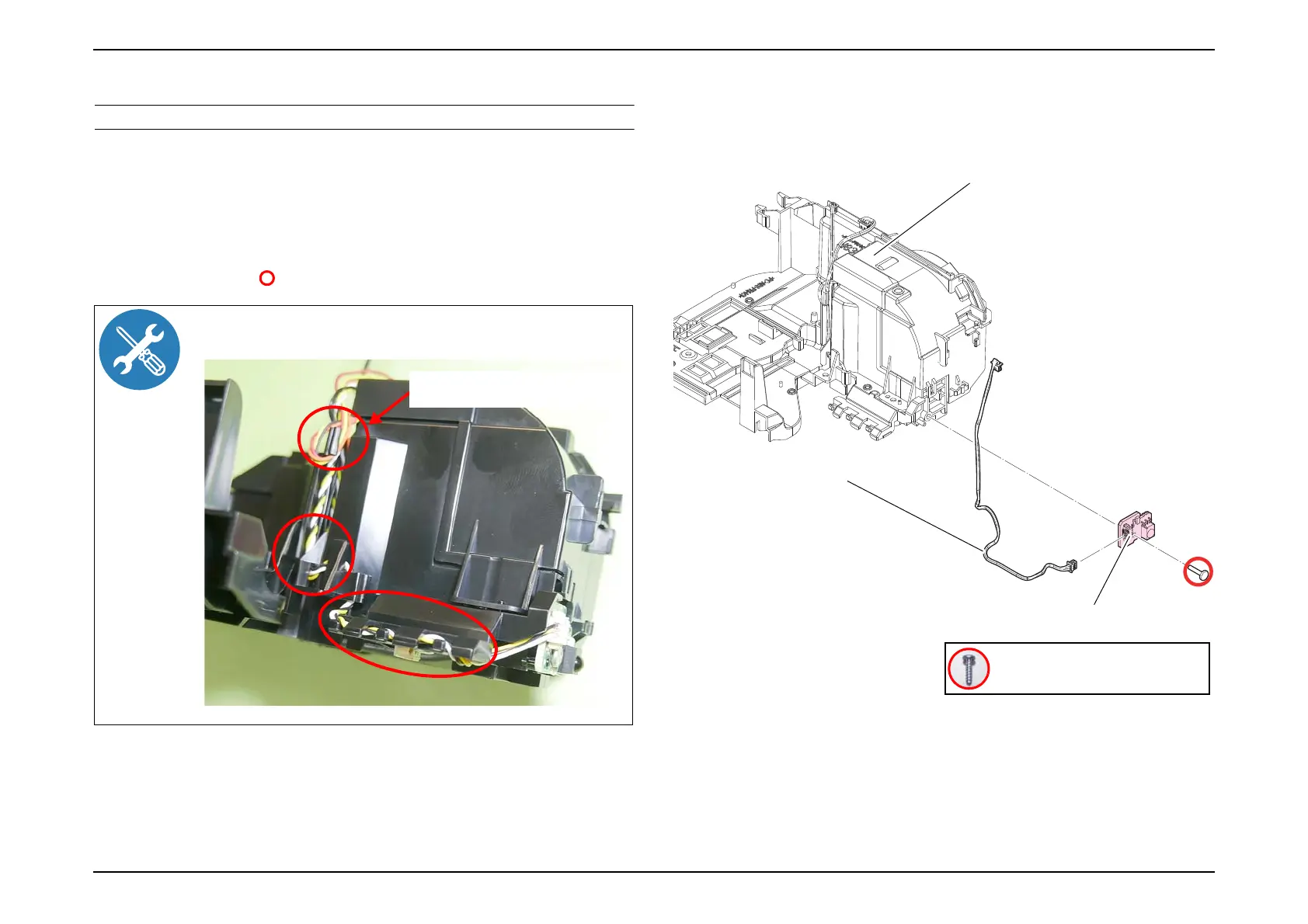

2. Remove the screw ( ) and remove the "IR Board" and the "RCF Cable".
Route the "RCF Cable" connected to the "IR Board" on
the INT Duct as shown in the figure below.
After routing the cable, wind the
fan cable.
INT Duct (Assy)
IR Board
RCF Cable
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
To Next Page
