Epson EB-X06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 142 Revision A
3.5.1 Safety Check after Servicing
To maintain the safeness of the projector whose safety devices are replaced or
which is disassembled and reassembled, make sure to carry out the safety
check following the instructions in this section after performing repair work.
SAFETY DEVICE/FUNCTIONS ARE:
 The parts that become unsafe if their specifications or functions are
nonconforming.
 The parts that require attention to the safety precautions of the customer.
The parts that are designated by the public safety regulations or the like.
UNSAFE STATE:
“Unsafe state” is the state of a part that may cause or contain the risk of the
following:• Personal injuries• Damages to the property• Abnormal heat
generation• Smoking• Fire• Explosion• Damage to the part to be installed•
Disturbance to/from the peripheral device (EMC disturbance)• Chemical
substances regulated by the law
THE SAFETY CONTROL POINTS ARE:

The processes that Safety Devices/Functions are manufactured, or checked.
 The processes that require the management to maintain the workers' safety.
SAFETY DEVICES/FUNCTIONS OF THIS PRODUCT
 PS Ballast Assy (p122)
 Filter Boards (p135)
 Caution Label Sheet (p93)
TEST ITEMS
 Insulation resistance test
 Ground continuity check
 Illumination check

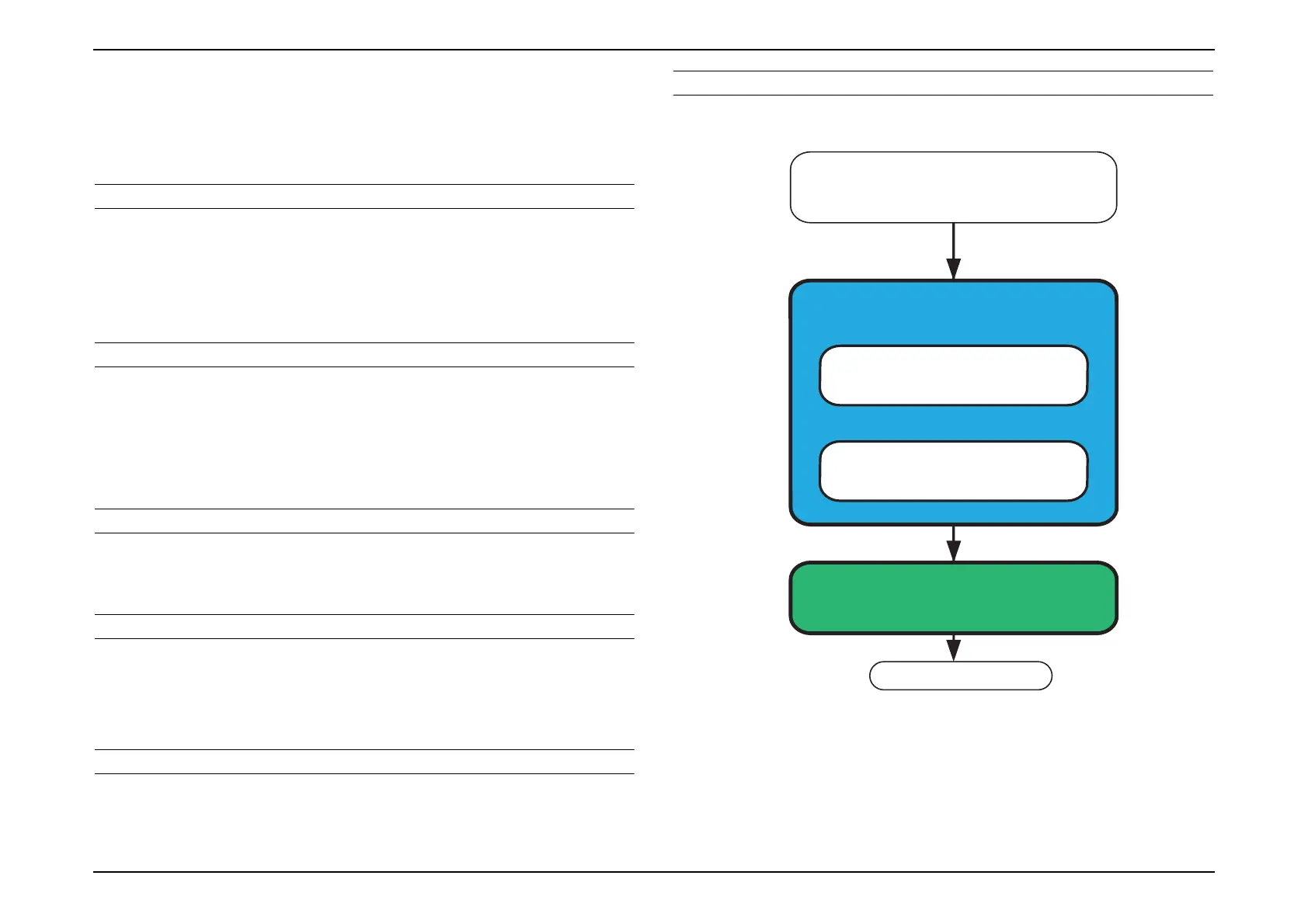

PROCEDURE
Carry out the check in the order given below.
Repair is complete.
(Parts replacement, reassembly)
Insulation resistance test
Basic operation check
Ground continuity check
Safety Check
Finish

Epson EB-X06 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2400 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.48 - 1.77:1
Zoom capability	Yes
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Wi-Fi standards	802.11ad, 802.11b, Wi-Fi 4 (802.11n)
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	3770 g
