3.3.4 Rear Foot
DISASSEMBLY PROCEDURE

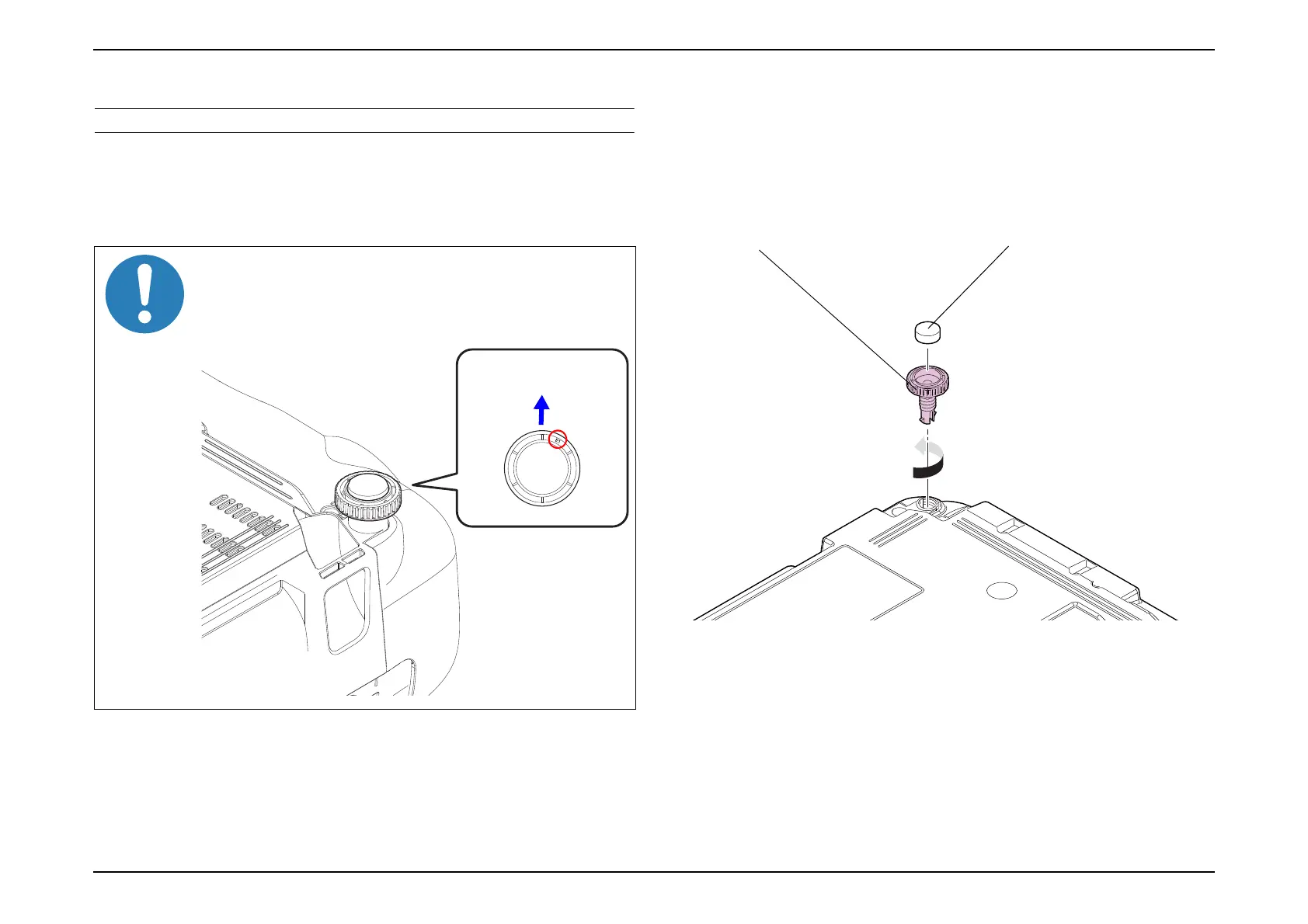

1. Turn the "Rear Foot" counterclockwise fully.
2. Slowly turn the "Rear Foot" until it clicks, and pull it off.
3. Remove the "Foot Rubber" from the "Rear Foot".
Be sure to align the mark on the bottom as shown in below,
and pull it off where it clicks.
(To align the groove on the LOWER CASE to prevent two
hooks of the screws from damaging.)
