Epson EB-X06 Service Manual

EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 39 Revision A
2.5 Error Indication and Problem diagnosis
2.5.1 Troubleshooting based on LED Indications

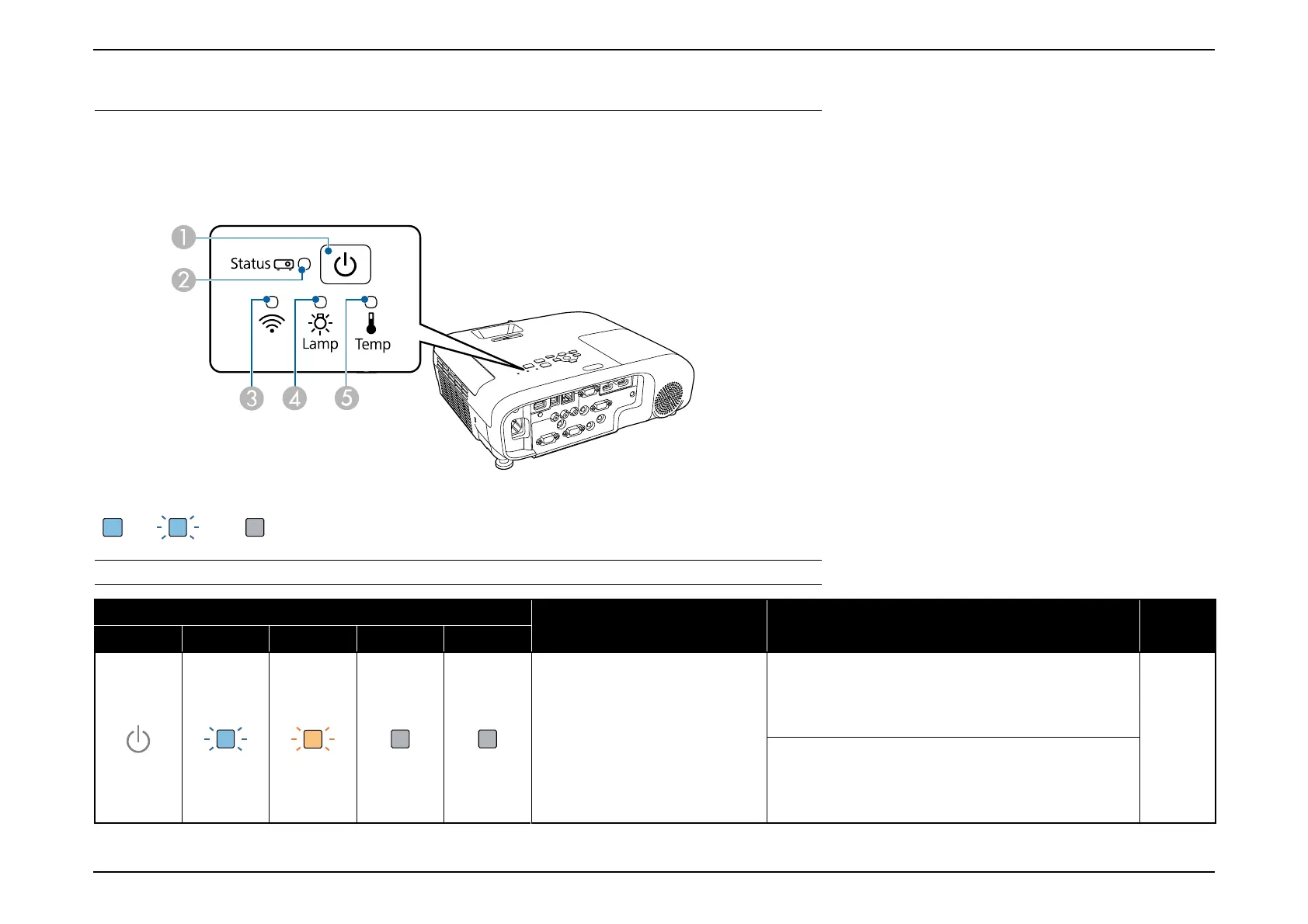

This section describes the LED error indications and corresponding error
names and their remedies.
ON Blink OFF
INTERNAL ERROR
1. Power indicator
2. Status indicator
3. Wireless LAN indicator
4. Lamp indicator
5. Temp indicator
LED Status
Corresponding error name Remedy Reference
Power Status Lamp Temp Wireless LAN
 I2C: I2C H/W Error
 DR: DR Status H/W Error
 RAM: RAM H/W Error
 ROM: ROM H/W Error
 IV: Inner Error (Video sub-processor
error)
Disconnect the AC cable once and reconnect it and turn the
power back on.
P.45
If the same error occurs after trying the remedy above, check the
error name and carry out the remedy referring to the reference on
the right column.

Epson EB-X06 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2400 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.48 - 1.77:1
Zoom capability	Yes
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Wi-Fi standards	802.11ad, 802.11b, Wi-Fi 4 (802.11n)
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	3770 g
