Epson EB-X06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 159 Revision A
2. Backing up the DR data
2-1. Start up the CAT.
2-2. Select [SETUP]-[SELECT MODEL], and choose the group
matched with the model group list.
2-3. Run "BACKUP".
BACKUP: SUCCEEDED
Go to "REPLACING THE MA BOARD".
BACKUP: FAILED
Obtaining the DR data
1. Obtaining the DR data
Obtain the corresponding DR data referring to the Technical Information
AP08-0912E.
2. Saving the data to the PC
Save the DR data file to the following folder in the PC.
C:\IRIS\DRDATA\
REPLACING THE MA BOARD
1. Replacing it with a good MA Board
Prepare a good MA Board belonging to the same model group, and replace
the boards.
2. Turning on the projector and Connecting to the PC
 Connecting using RS-232C cable
1. Press the [Power] button on the projector or the remote controller to
turn on the projector.
2. Connect the projector to the PC using RS-232C cable.

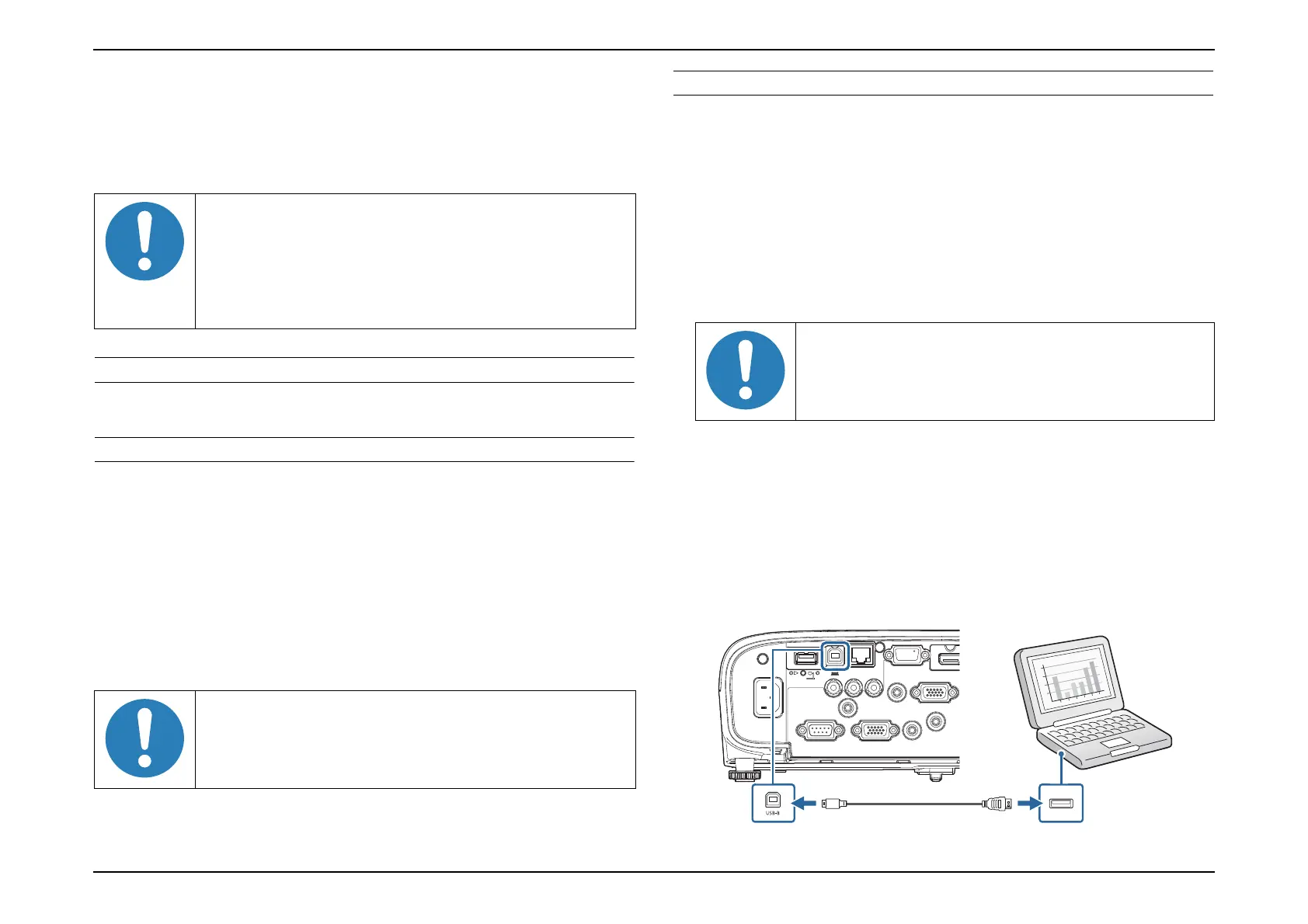

 Connecting using USB cable
1. Disconnect the power cord from the projector and check that all of the
indicators on the projector are off.
2. Connect the power cord to the projector while pressing the [Enter]
button on the Control Panel or remote controller. When the LED panel
on the projector flashes four times and then lights up, release the
[Enter] button.
3. Connect the projector to the PC using USB cable.
4. Press the [Power] button on the projector or the remote controller.
Even if the model number; Hxxx that indicated on a label
attached to the MA board, is not matching to the model
number indicated on the serial number label of the optical
engine, you can still execute BACKUP operation by
selecting the "group" in the Model Group List for
[SELECT MODEL] menu.
 RESTORE cannot operate correctly if the DR data is
not saved in the specified folder. (RESTORE will not
operate correctly if the file cannot be checked.)
 Do not change the name of the DR data file.
See "User's Guide" for the method to configure serial
communication.

Epson EB-X06 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2400 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.48 - 1.77:1
Zoom capability	Yes
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Wi-Fi standards	802.11ad, 802.11b, Wi-Fi 4 (802.11n)
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	3770 g
