Epson EB-X06 Service Manual

EB-E01 series INTERNAL USE ONLY
SEIKO EPSON 4 Revision A
IMPORTANT PRECAUTIONS IN SAFETY AND MAINTENANCE PERFORMANCE
Here describes the important points to keep in mind in repair and maintenance performance.
SYMBOLS
To prevent injury to the repair technicians and to protect the devices, the categorized safety instructions are provided in this manual with the symbols below. Be sure to read and
understand their meanings before proceeding to the next section.

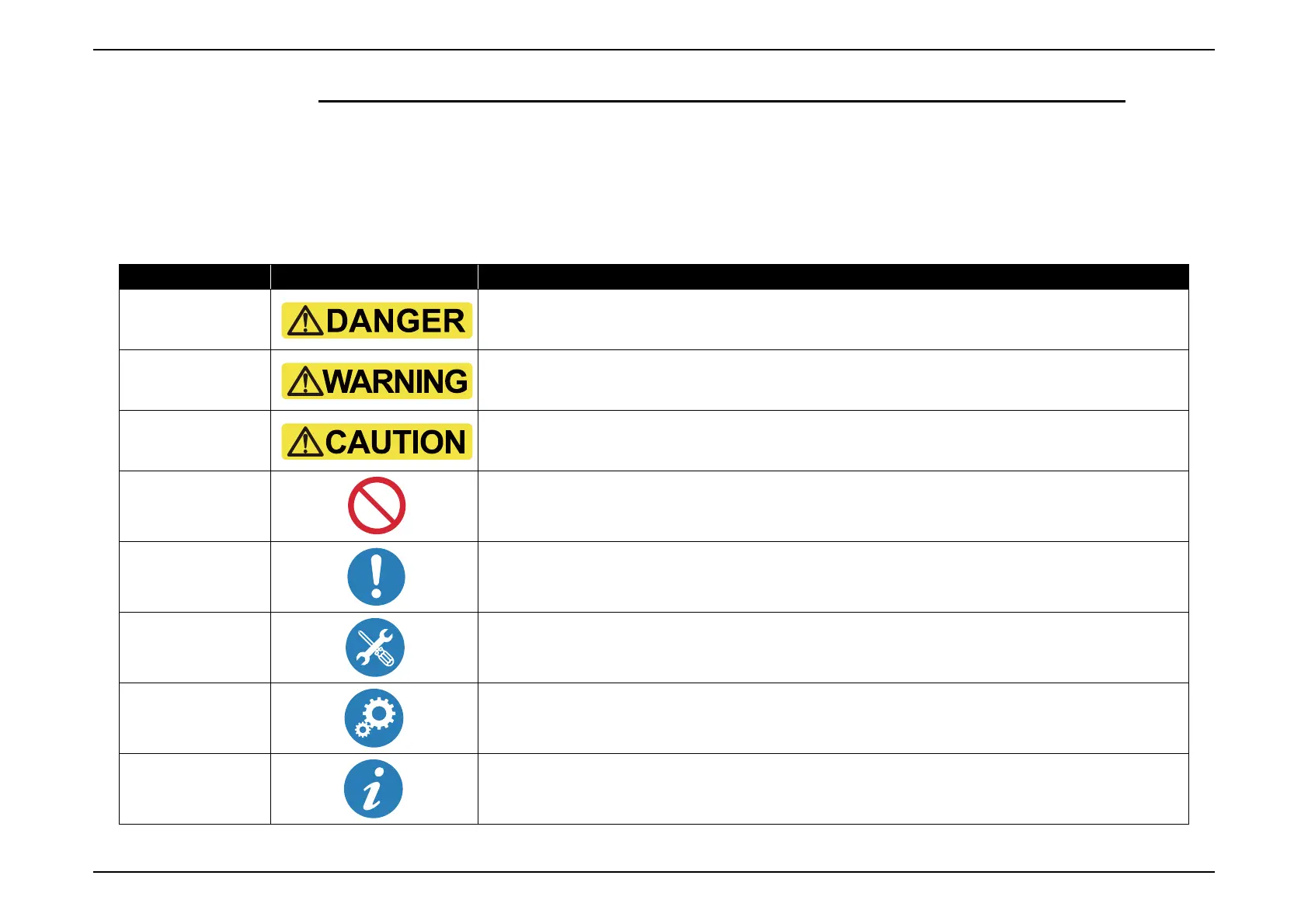

Category Symbol Meaning
Danger
Indicates an extremely hazardous operation which, if ignored or operated incorrectly, could result in serious or
fatal personal injury.
Warning
Indicates a potentially hazardous operation which, if ignored or operated incorrectly, could result in serious or
fatal personal injury.
Caution
Indicates a potentially hazardous operation which, if ignored or operated incorrectly, could result in minor injury
or damage to equipment.
Prohibited
Matter
Indicates a prohibited action or operation in repair and maintenance performance.
Instruction
Indicates a compulsory action or operation that must be carried out in repair and/or maintenance.
Reassembly
Indicates a compulsory action or operation for reassembly of disassembled parts that must be carried out in repair
and/or maintenance.
Setting/
Maintenance
Indicates a compulsory action or operation for settings or maintenance that must be carried out in repair and/or
maintenance.
Point
Indicates reference information in repair and/or maintenance.

Epson EB-X06 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	1.8 - 2.17 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2400 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.48 - 1.77:1
Zoom capability	Yes
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	2
Wi-Fi standards	802.11ad, 802.11b, Wi-Fi 4 (802.11n)
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Management, Epson Projektor Professional Tool
USB display function	2 in 1: Image / Mouse
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	335 mm
Package height	150 mm
Package weight	3770 g
