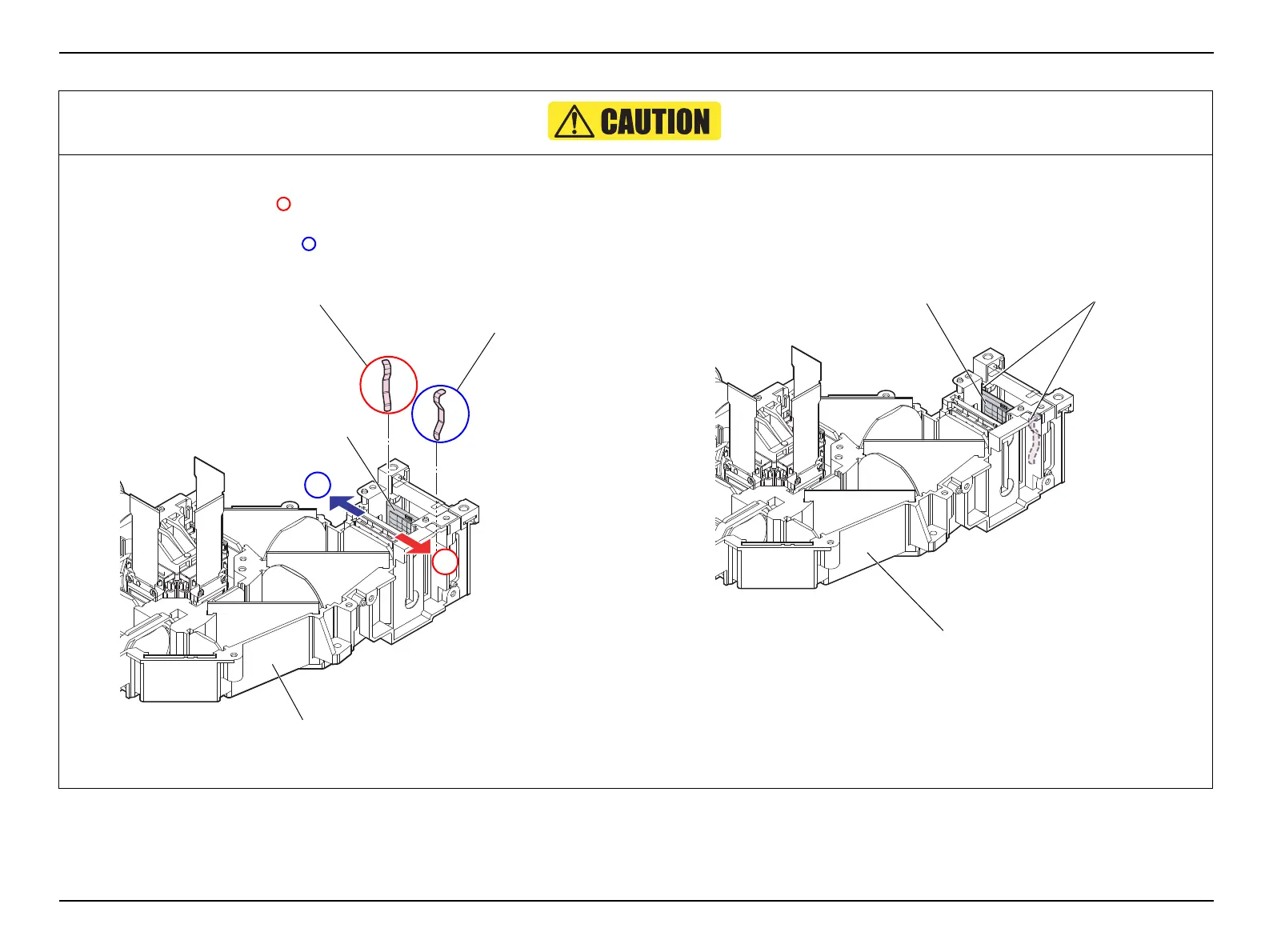

 When installing the SPRING,ML FASTEN, take care in the following.
1. Slide the MULTI LENS;A in the direction of arrow (1), and attach the
SPRING,ML FASTEN ( ).
2. While pressing the MULTI LENS;A in the direction of arrow (2), attach
the SPRING,ML FASTEN ().
Figure 4-32.
 When installing the SPRING,ML FASTEN, make sure to set the springs with
the top of them touching the top surface of the LIGHT GUIDE,LOWER.
 After installing the SPRING,ML FASTEN, confirm there is no gap between
the bottom of MULTI LENS;A and the LIGHT GUIDE,LOWER.
(See Figure 4-30, Figure 4-31.)
Figure 4-33.
SPRING,ML FASTEN (1)
SPRING,ML FASTEN (2)
MULTI LENS;A
LIGHT GUIDE,LOWER
1
2
MULTI LENS;A
LIGHT GUIDE,LOWER
SPRING,ML FASTEN
