Projector Parts and Functions
11
Name Function
A
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
B
Air intake vent Takes in air to cool the projector internally.
C
Mount plate fixing
point
Attach the optional or supplied mount plate here.
D
Rear feet (Mount
plate fixing points)
Loosen these feet by turning them counterclockwise,
and then remove them to attach the optional or
supplied mount plate.
E
Air filter cover Open to access the air filter.
F
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
gg Related Links
• "Air Filter and Vent Maintenance" p.69
• "Installing the Projector on VESA Compliant Mounting Hardware or a
Tripod" p.18
• "Adjusting the Image Height" p.32

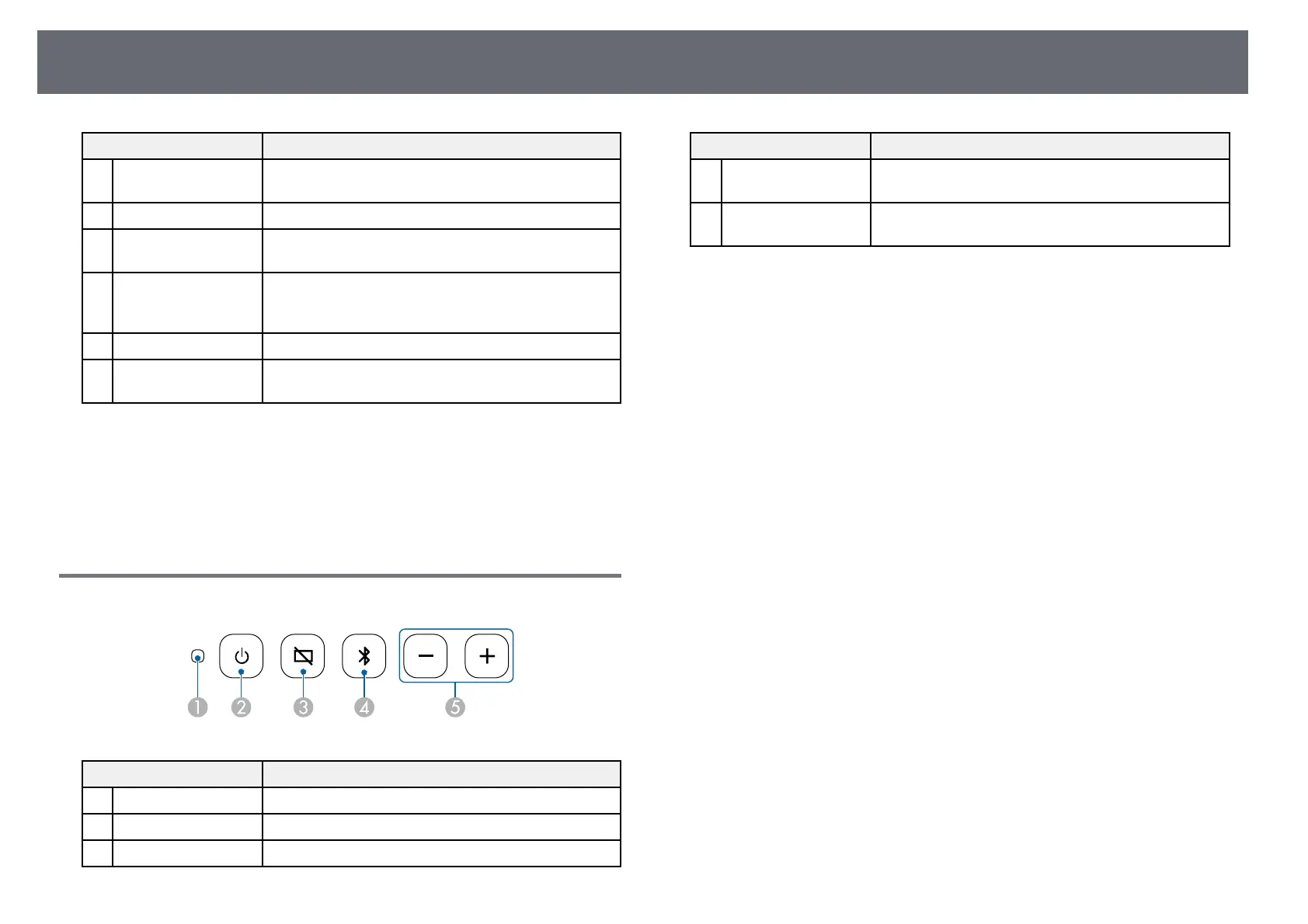

Projector Parts - Control Panel
Name Function
A
Status indicator Indicates the projector's status.
B
Power button Turns the projector on or off.
C
Blank button Turns the video on or off temporarily.
Name Function
D
Bluetooth Speaker
Mode button
Switches to the Bluetooth Speaker Mode.
E
Volume up/down
buttons
Adjusts the volume for the speaker and headphones.
gg Related Links
• "Projector Indicator Status" p.74
• "Using the Projector as a Bluetooth Speaker" p.49
