Epson EH-TW6700 User Manual

Introduction
7

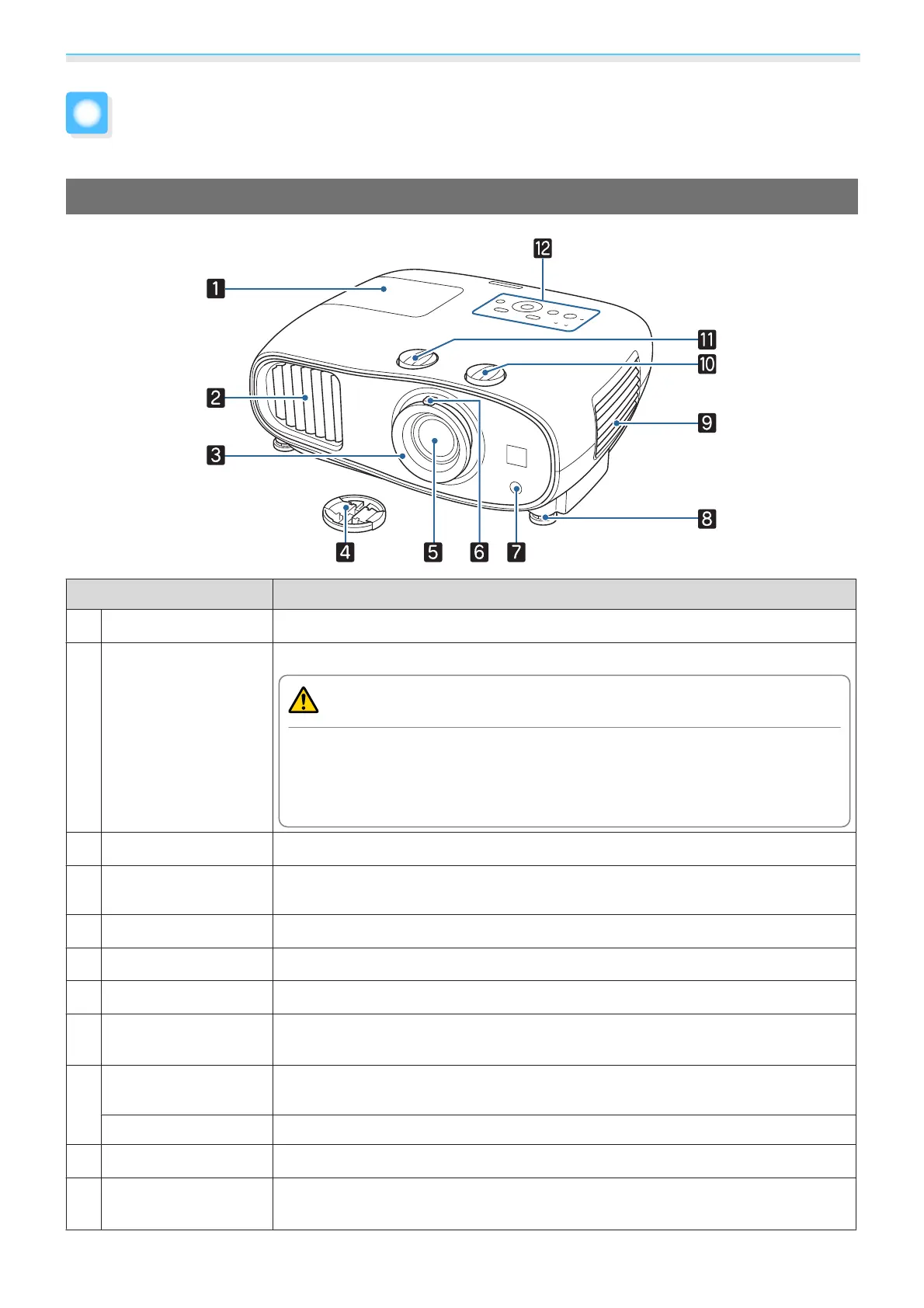

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.120
b
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
c
Focus ring
Adjusts the image focus. s p.31
d
Lens cap
Install when not using the projector to protect the lens from being scratched or
soiled.
s p.28
e
Lens
Images are projected from here.
f
Zoom ring
Adjusts the image size. s p.31
g
Remote receiver
Receives signals from the remote control. s p.27
h
Front adjustable
foot
When set up on a surface such as a table, extend the foot to adjust horizontal tilt.
s p.32
i
Air filter cover
When cleaning or replacing the air filter, open this cover and remove the air filter.
s p.116
、
p.119
Air intake vent
Intake vent for air used to cool the projector internally.
j
Vertical lens shift dial
Turn the dial to move the position of the projected image up or down. s p.32
k
Horizontal lens shift
dial
Turn the dial to move the position of the projected image left or right. s p.32
Downloaded from www.vandenborre.be

Epson EH-TW6700 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	2.95 - 4.8 m
Projection technology	3LCD
Contrast ratio (typical)	70000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Focus	Manual
Throw ratio	1.32 - 2.15:1
Zoom capability	Yes
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.51 - 1.99
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-24 - 24 %
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Color modes (2D)	Bright cinema, Cinema, Dynamic, Natural
Color modes (3D)	Cinema, Dynamic
Video processing	10 bit
Supported video modes	1080p
Analog signal format system	-
Supported graphics resolutions	1920 x 1080 (HD 1080)
DVI port	No
Composite video in	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	32 dB
Country of origin	Philippines
Noise level (economic mode)	24 dB
RMS rated power	20 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	364 W
Power consumption (PowerSave)	279 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Bundled software	EasyMP Multi PC Projection
Pallet width	800 mm
Pallet height	2030 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet (UK)	32 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)

Weight and Dimensions

Depth	304 mm
Width	410 mm
Height	157 mm
Weight	6900 g
Package depth	495 mm
Package width	235 mm
Package height	475 mm
Package weight	9.105 g
